Service Point Locations

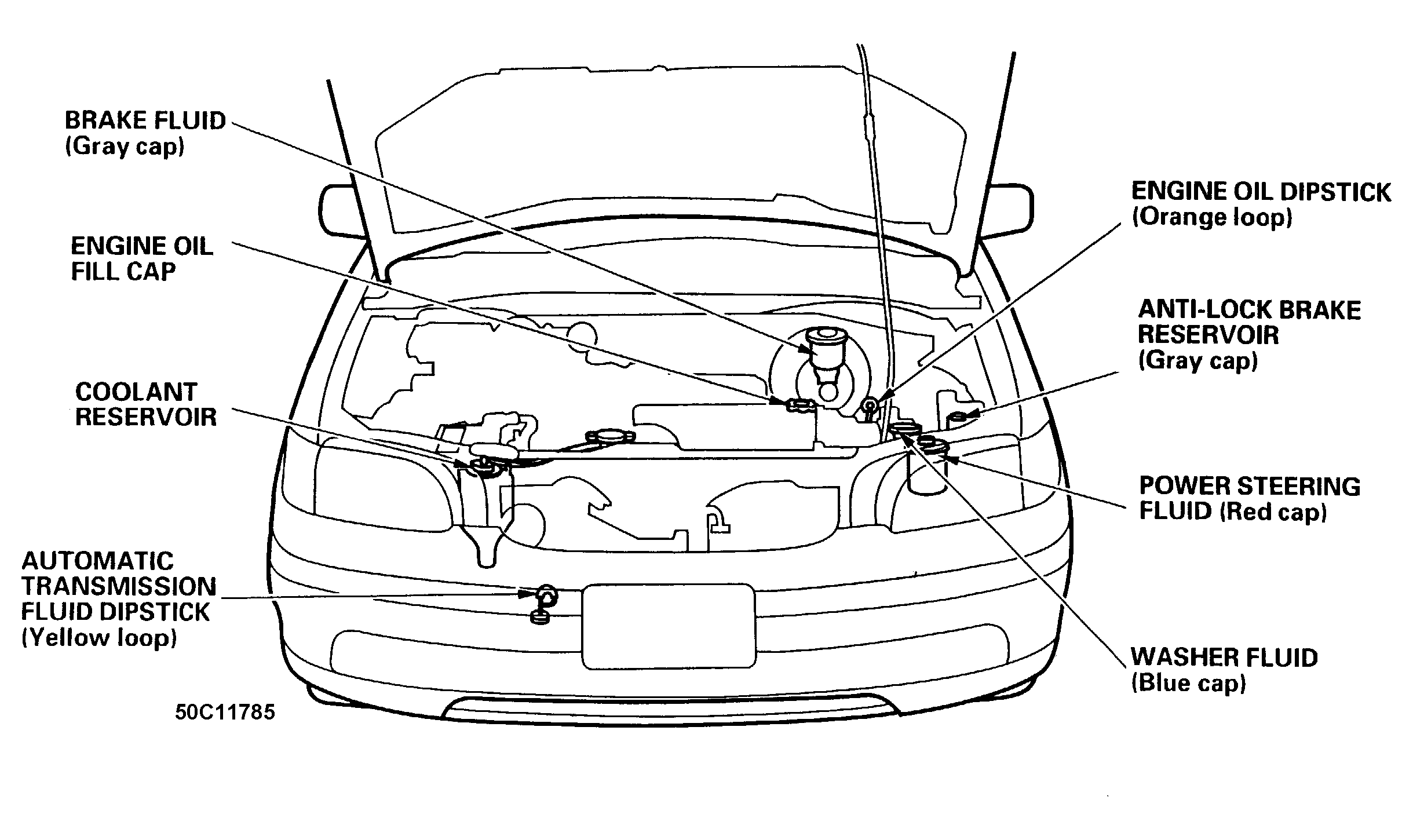

Fig 1: Service Point Locations
G50C11785Courtesy of AMERICAN HONDA MOTOR CO., INC.

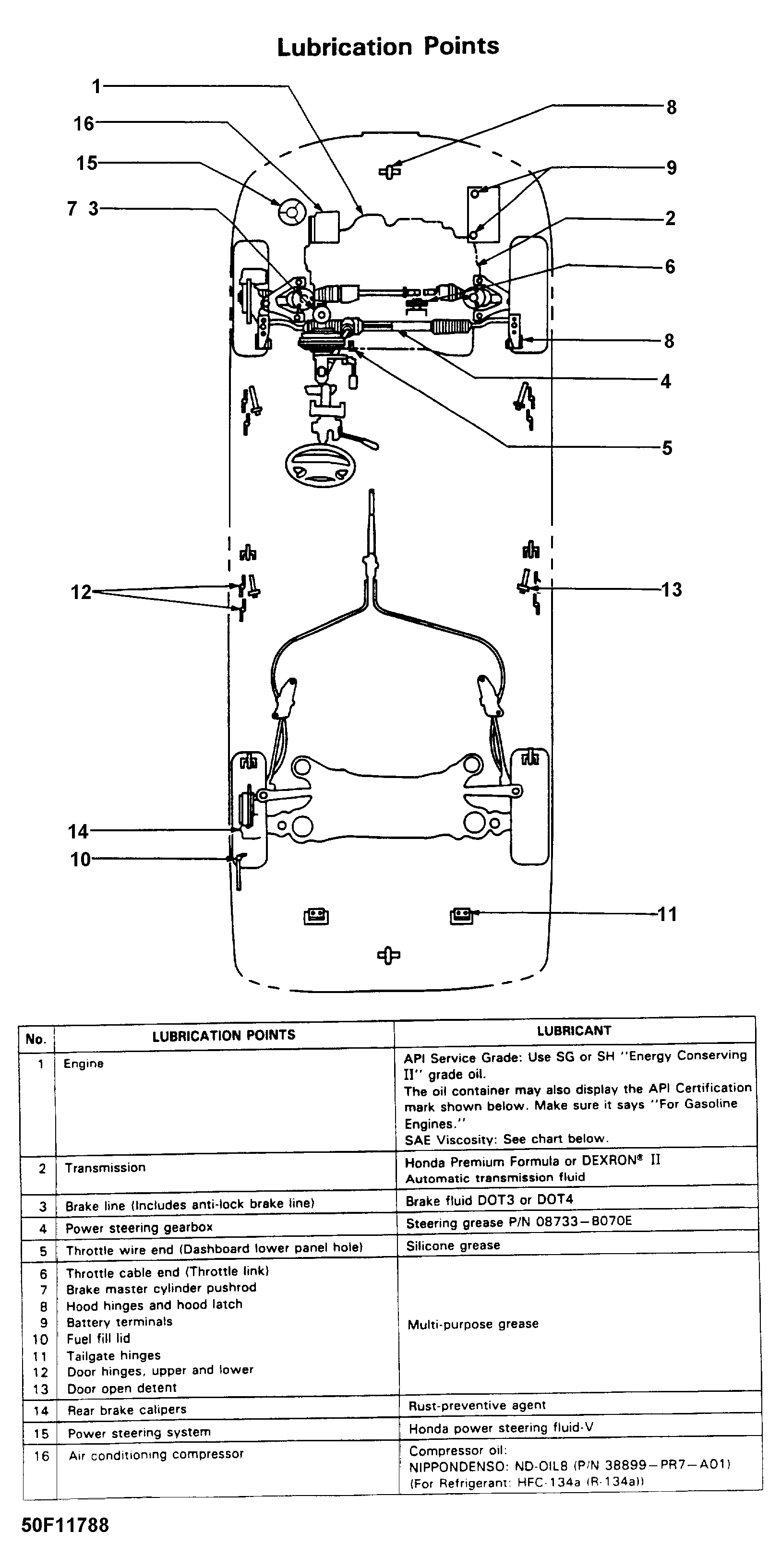

Fig 2: Lubrication Points
G50F11788Courtesy of AMERICAN HONDA MOTOR CO., INC.
