Connector/Circuit ID

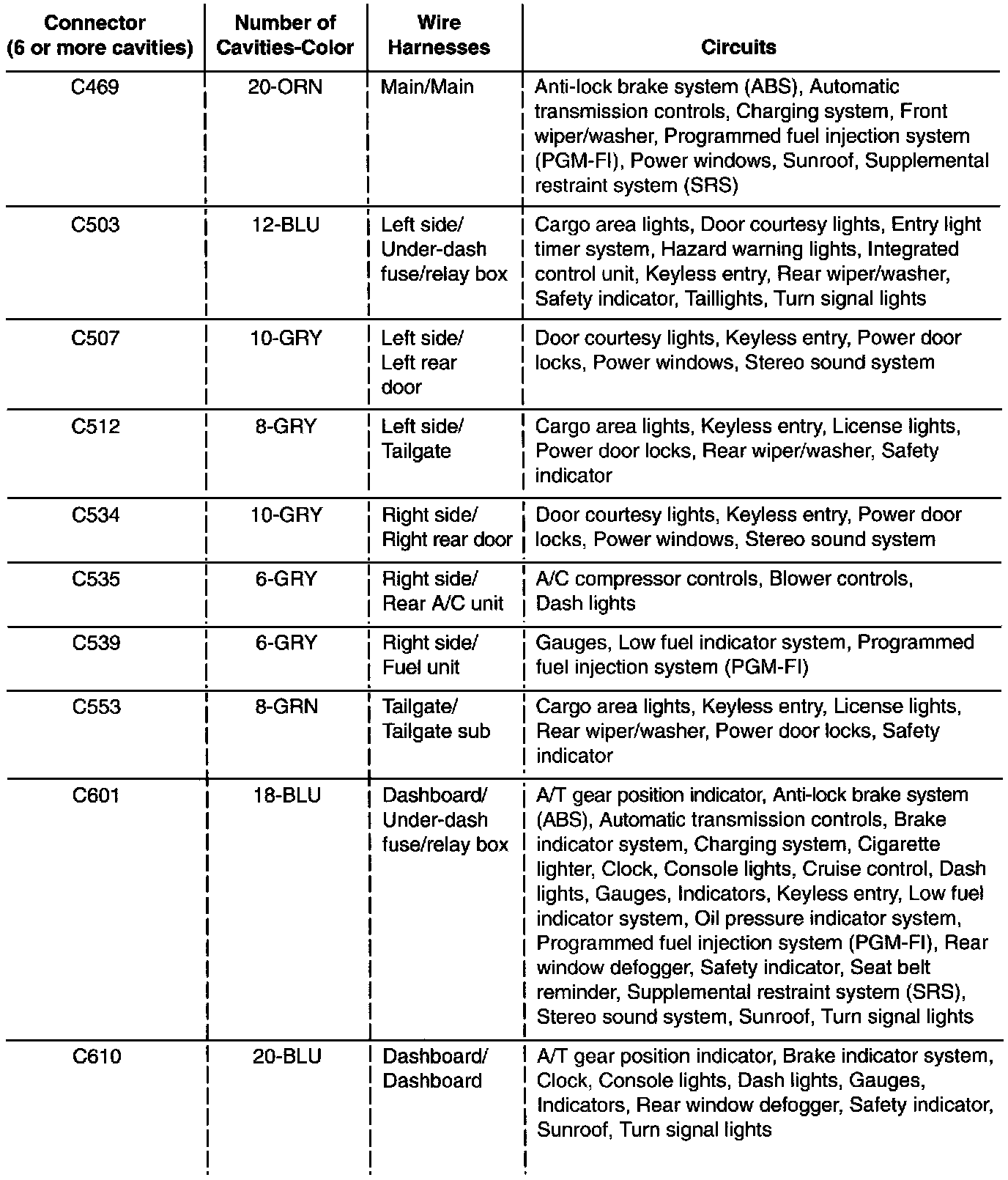

Circuit Identification For In-Line Fuse Box Connectors (Part 1 Of 4):

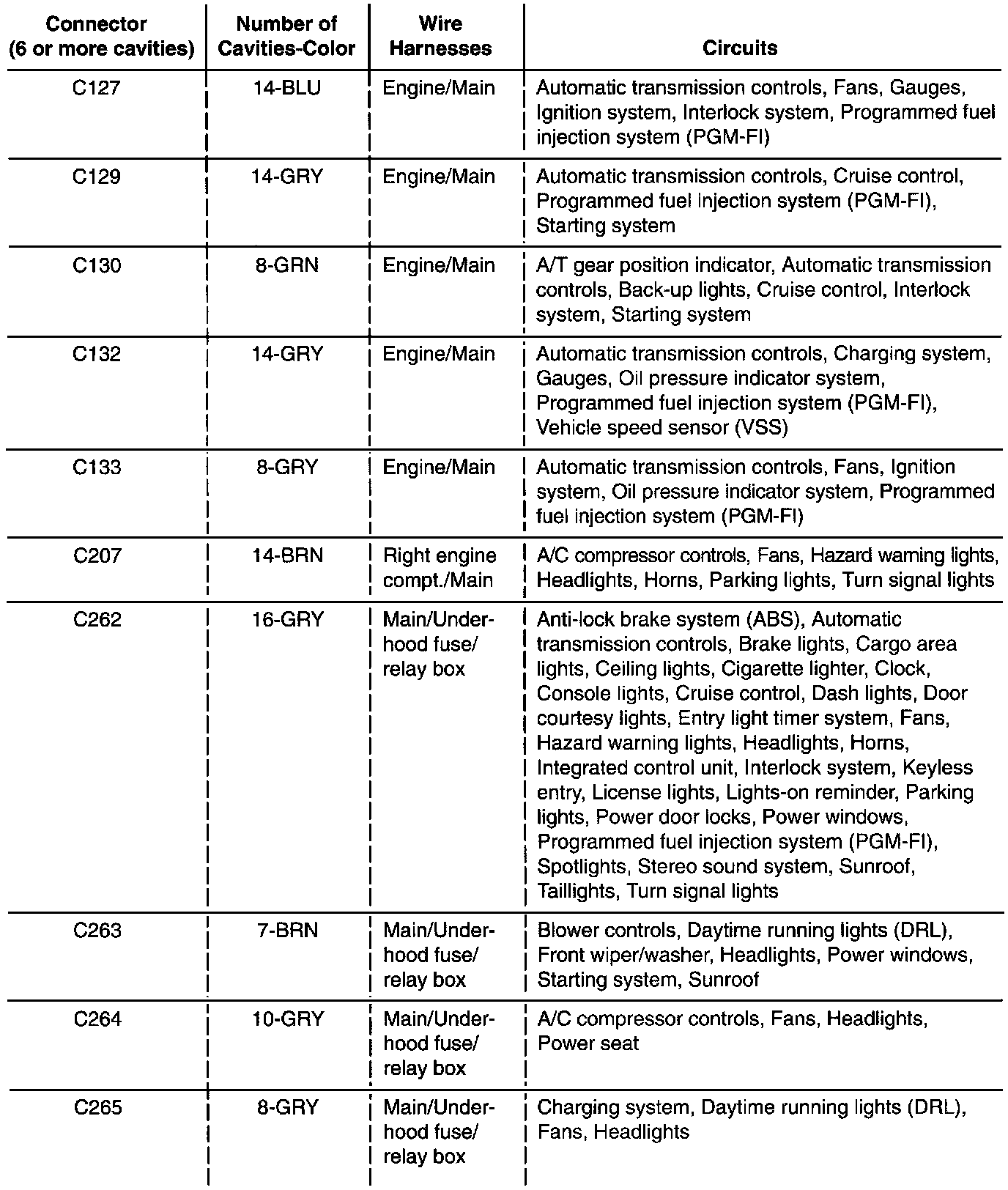

Circuit Identification For In-Line Fuse Box Connectors (Part 2 Of 4):

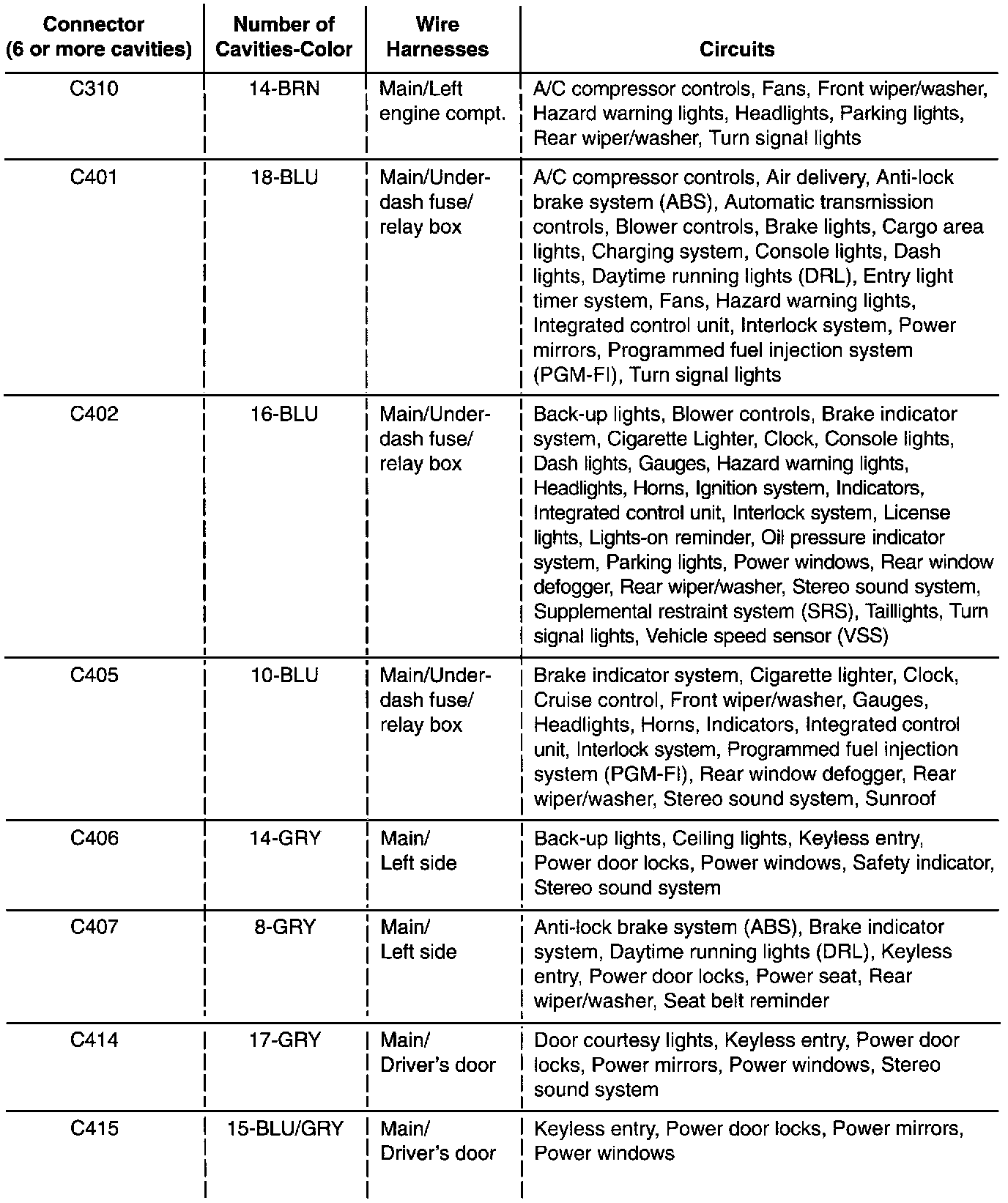

Circuit Identification For In-Line Fuse Box Connectors (Part 3 Of 4):

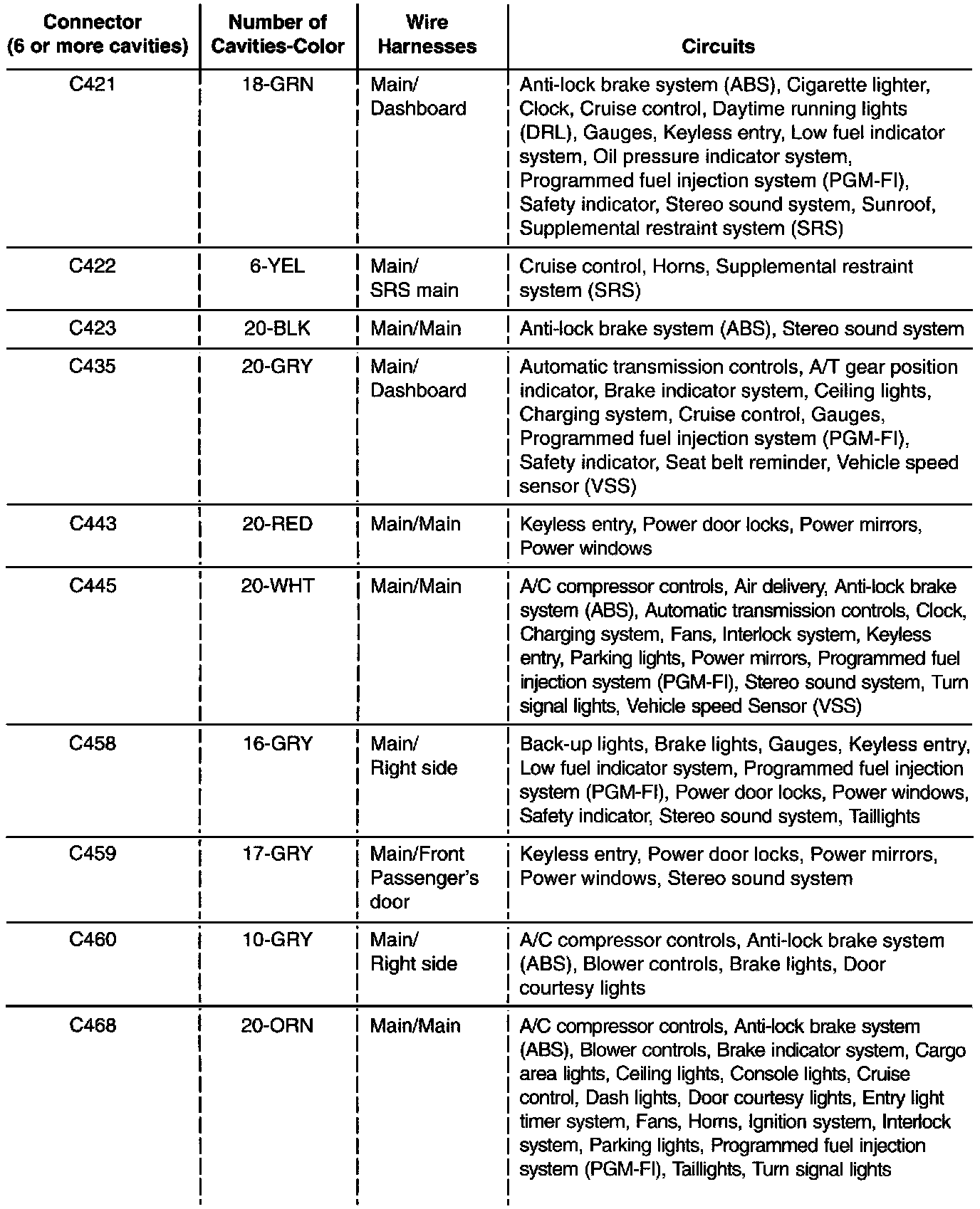

Circuit Identification For In-Line Fuse Box Connectors (Part 4 Of 4):
