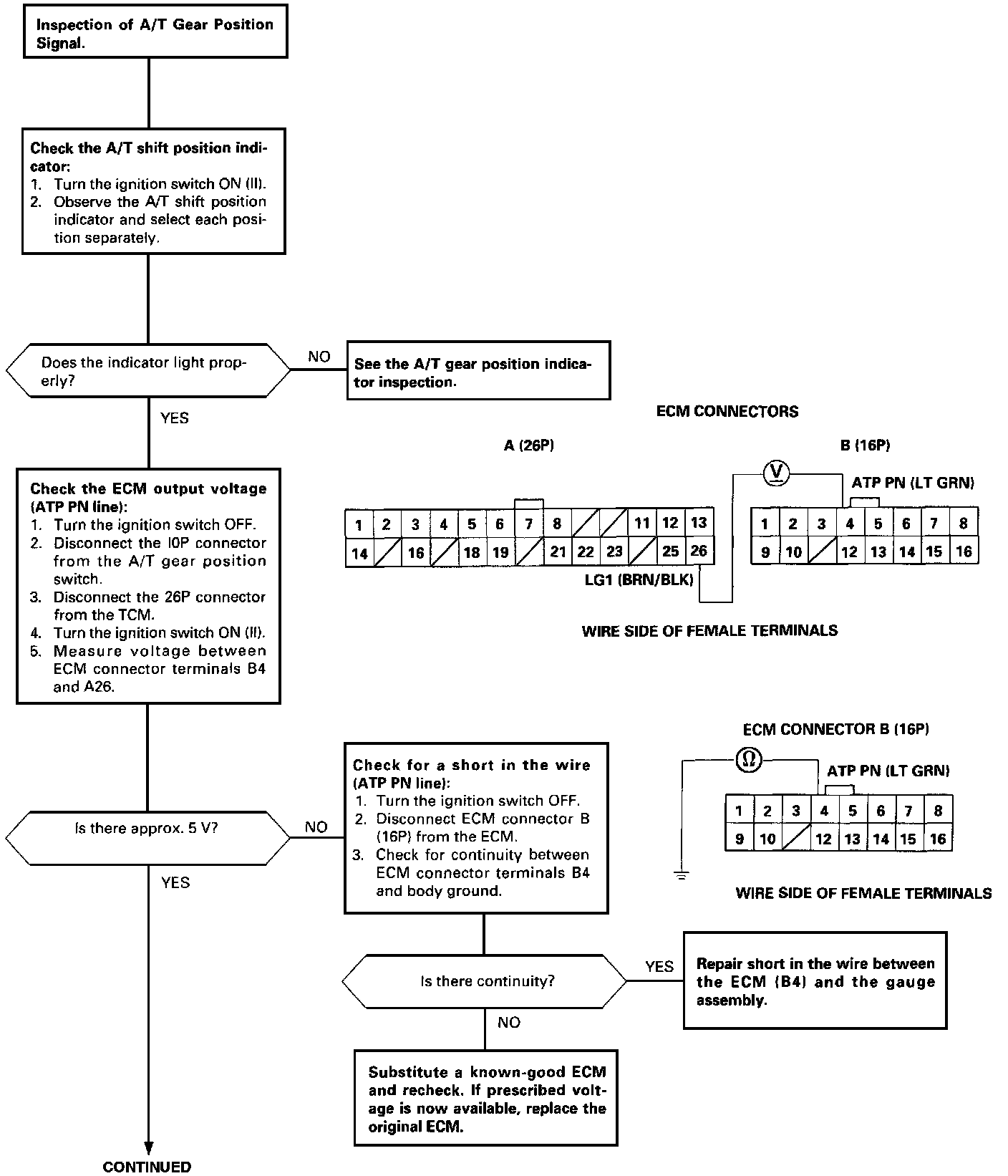

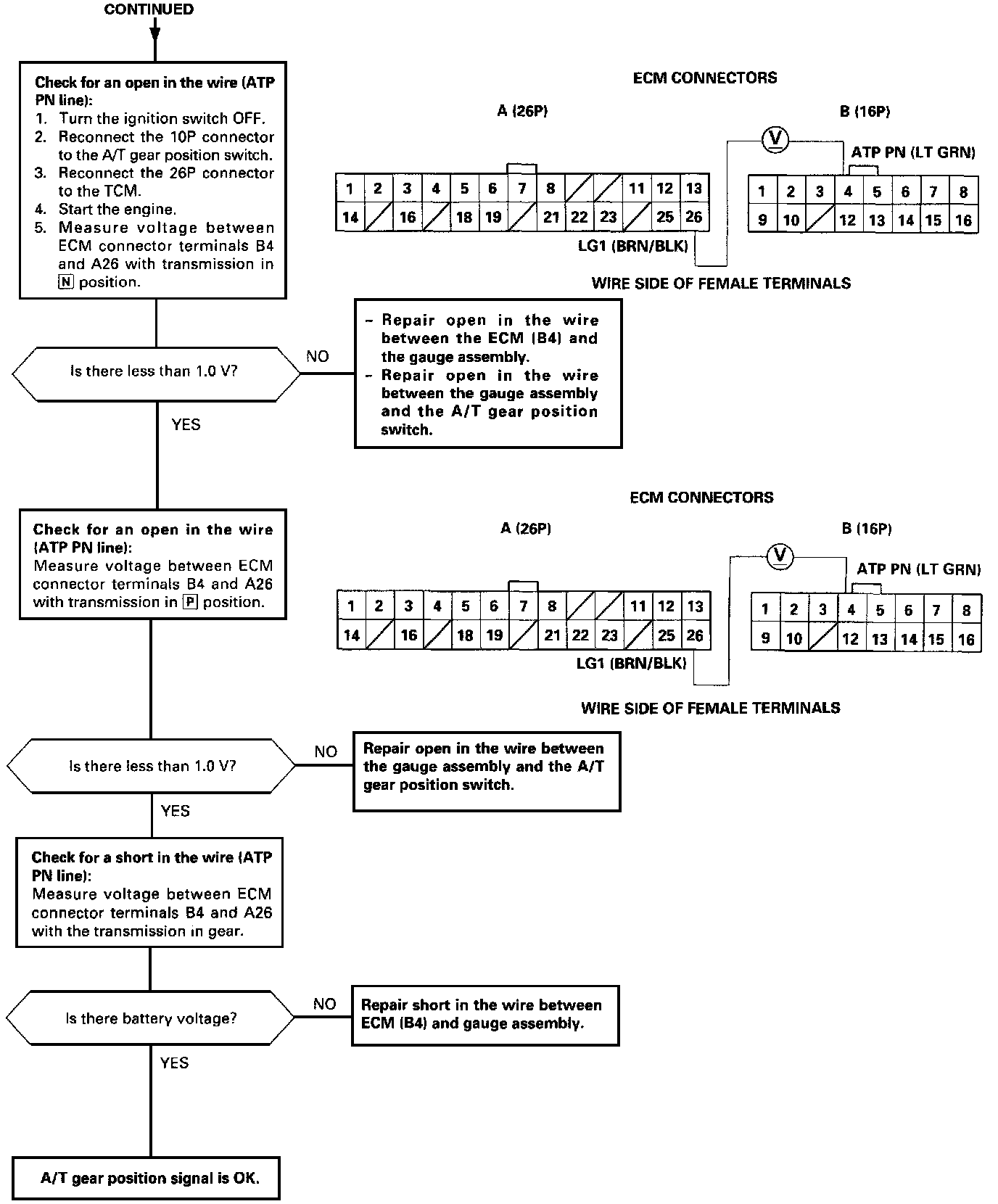

Transmission Position Sensor/Switch: Testing and Inspection








This signals the Engine Control Module (ECM) when the Transmission is in N or P position.
