Installation

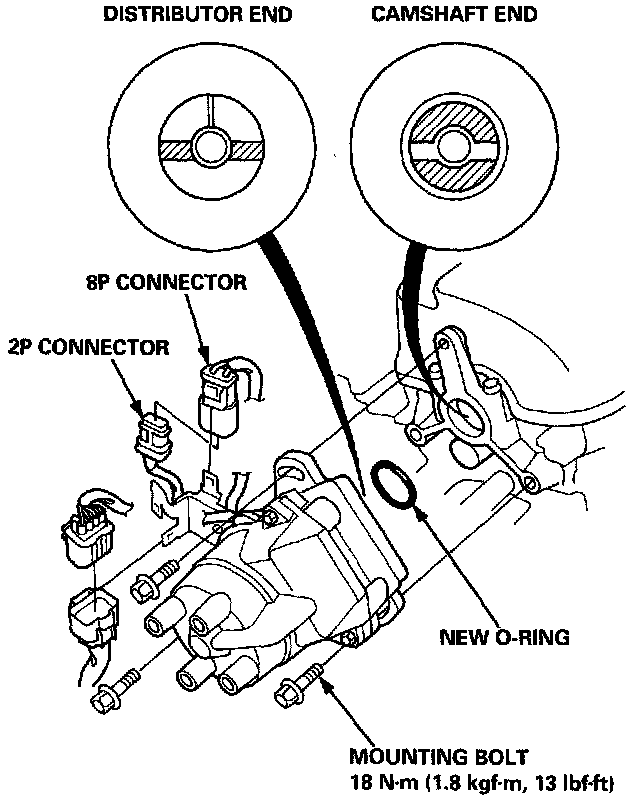

NOTE: Before you install the Distributor, bring the No. 1 Piston to compression stroke Top Dead Center (TDC).

1. Coat a new 0-ring with Engine oil, then install it.
2. Slip the Distributor into position.

NOTE: The Lugs on the end of the Distributor and their mating grooves in the Camshaft end are both offset to eliminate the possibility of installing the Distributor 180° out of time.




3. Install the Mounting Bolts, and tighten them lightly.
4. Connect the 2 P and 8 P Connectors to the Distributor.

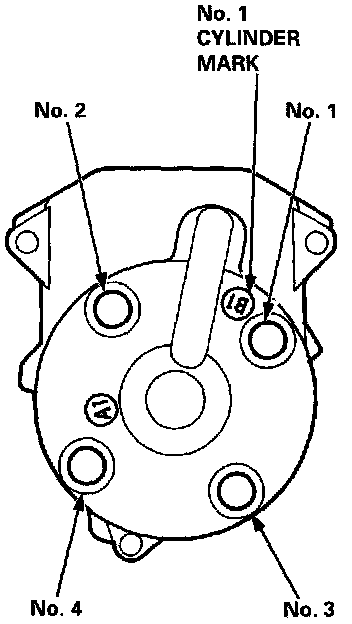

5. Connect the Ignition Wires as shown.
6. Set the Timing with a Timing Light.
7. After setting the Timing, tighten the Mounting Bolts.
