Reassembly

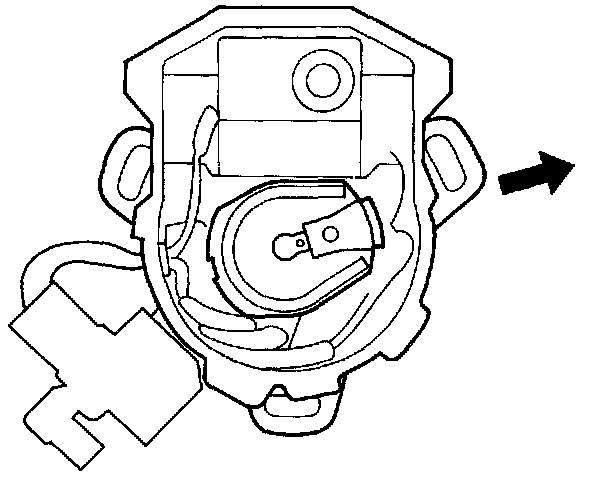

1. When reassembling the Distributor, install the Distributor Ignition (DI) Rotor, then turn it so that it faces in the direction shown (toward the No. 1 Cylinder).




2. Align the index mark on the DI Housing with the index mark on the end of the Shaft.
