Code 14 - Shorted Engine Coolant Temperature Sensor

NOTE: See appropriate WIRING DIAGRAM in WIRING DIAGRAMS  section for terminal and connector identification.

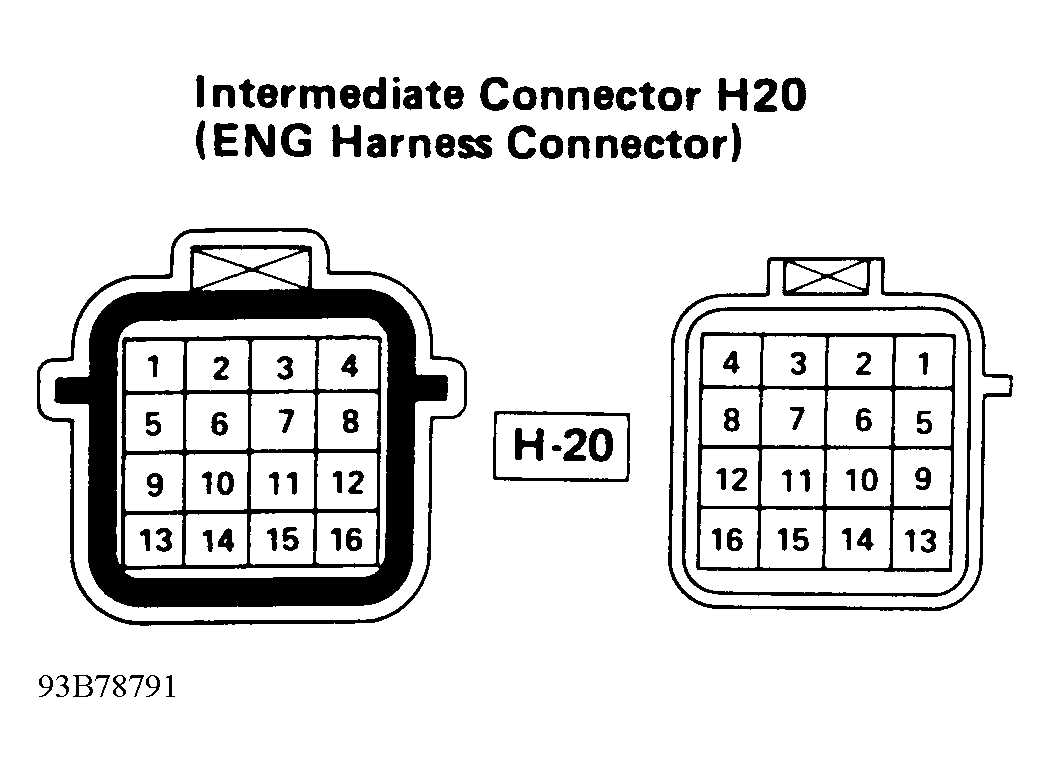

Fig 1: Code 14 - ECT Sensor Side Of Black 16-Pin Connector (2.6L Passport)

Courtesy of ISUZU MOTOR CO.

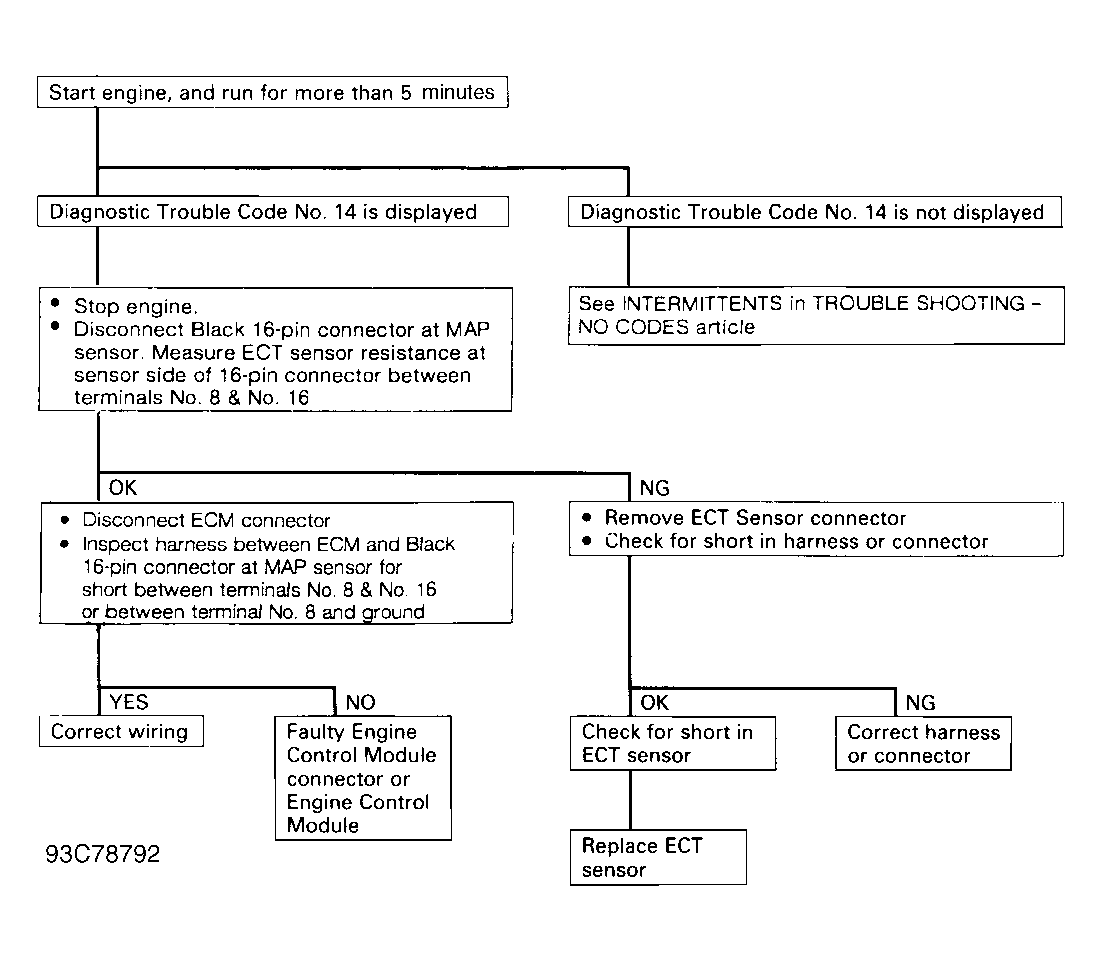

Fig 2: Code 14 - Diagnostic Flowchart (2.6L Passport)

Courtesy of ISUZU MOTOR CO.
