Code 33 - Fuel Injector Circuit (Open Or Grounded)

NOTE: See appropriate WIRING DIAGRAM in WIRING DIAGRAMS  section for terminal and connector identification.

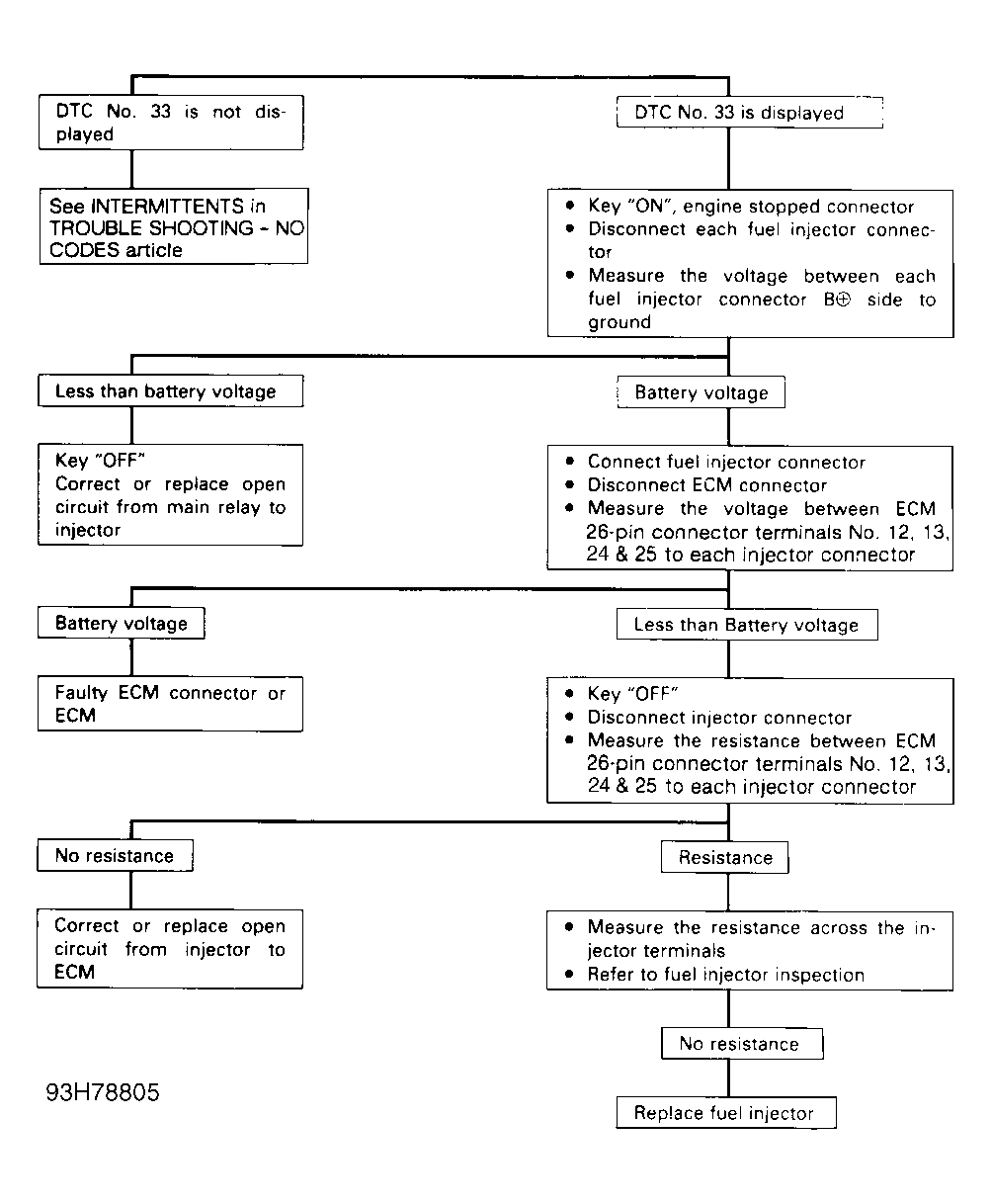

Fig 1: Code 33 - Diagnostic Flowchart (2.6L Passport)

Courtesy of ISUZU MOTOR CO.
