Code 41 - Crankshaft Position Sensor Signal

NOTE: See appropriate WIRING DIAGRAM in WIRING DIAGRAMS  section for terminal and connector identification.
NOTE: Test number refers to number on diagnostic chart.
  1. Inspecting Crankshaft Position (CKP) sensor circuit:
    • Disconnect CKP sensor and ECM connectors.
    • Turn ignition on.
    • Measure CKP sensor voltage and resistance values. See CKP SENSOR SPECIFICATIONS table.
    • If values are not within specification, repair or replace appropriate harness or connector.
    • Reconnect CKP and ECM connectors.
CKP SENSOR SPECIFICATIONS

Between Terminals (1) Resistance Voltage
20 & White 0 -
7 & Green 0 -
Green/Black & Ground - 10-14
Black & Ground 0 -
(1) Circuit numbers refer to ECM terminal numbers, and wire colors refer to CKP sensor wire colors at connector.

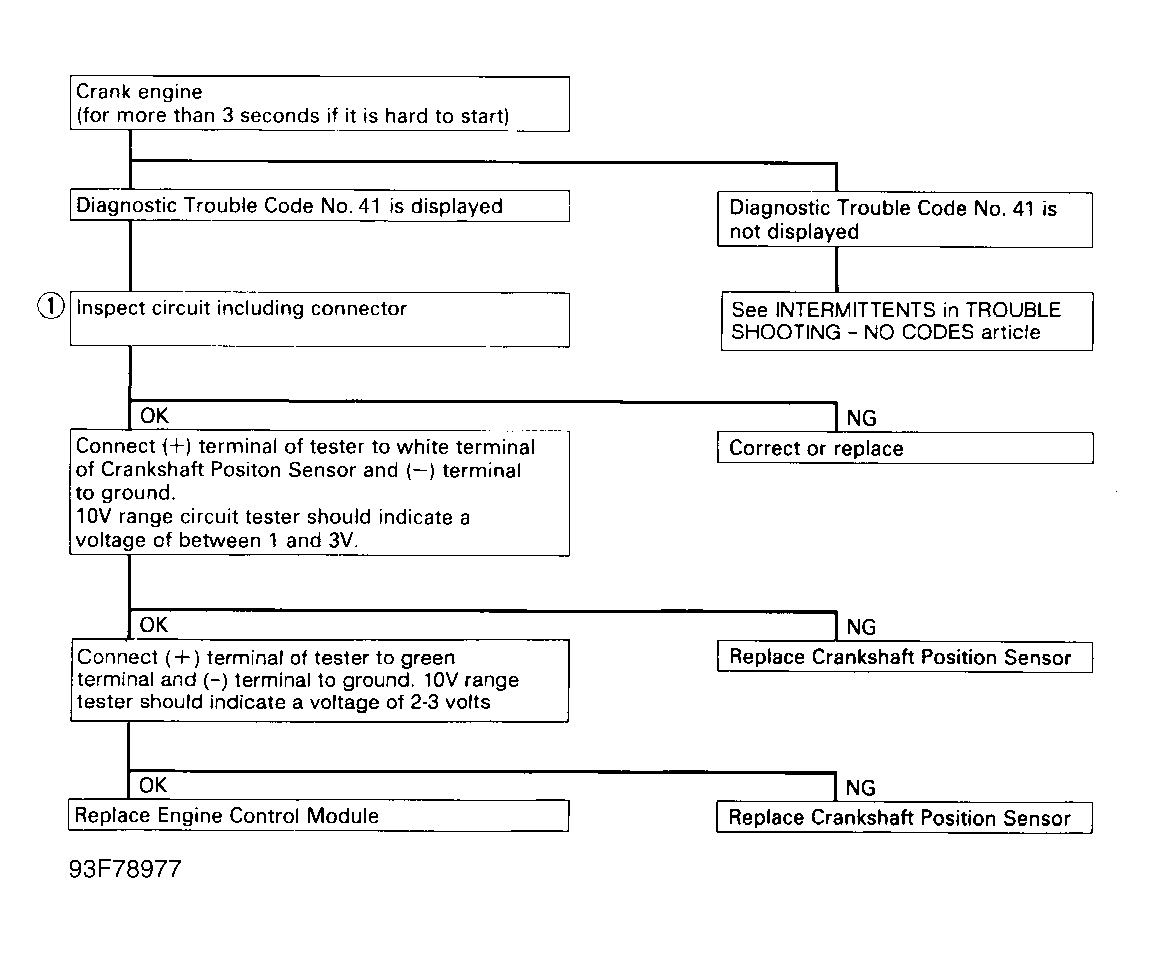

Fig 1: Code 41 - Diagnostic Flowchart (2.6L Passport)
G93F78977Courtesy of ISUZU MOTOR CO.
