Code 64 - Fuel Injector Circuit (ECM Transistor)

NOTE: See appropriate WIRING DIAGRAM in WIRING DIAGRAMS  section for terminal and connector identification.

Fig 1: Code 64 - ECT Sensor Side Of Black 16-Pin Connector (2.6L Passport)

Courtesy of ISUZU MOTOR CO.

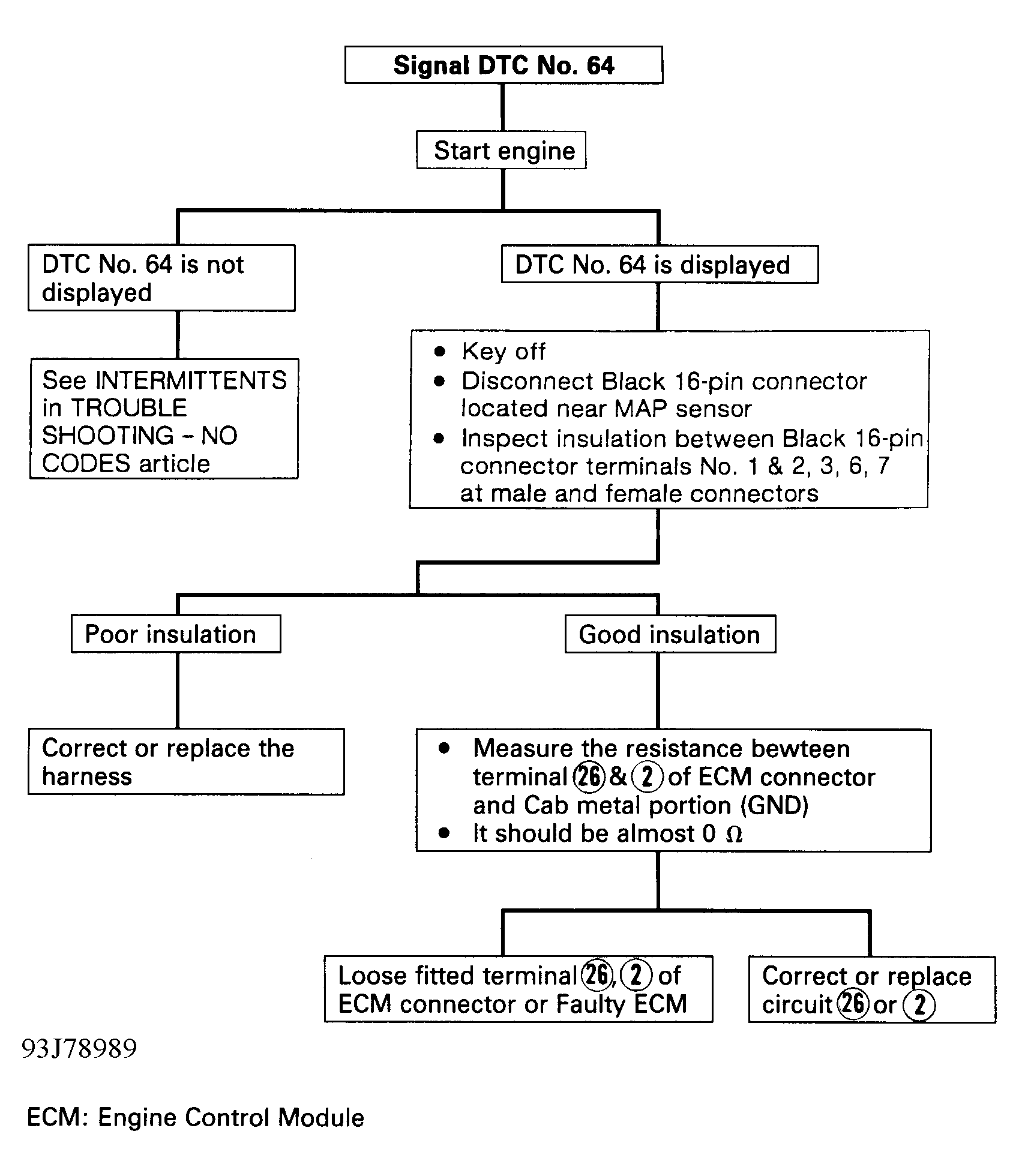

Fig 2: Code 64 - Diagnostic Flowchart (2.6L Passport)

Courtesy of ISUZU MOTOR CO.
