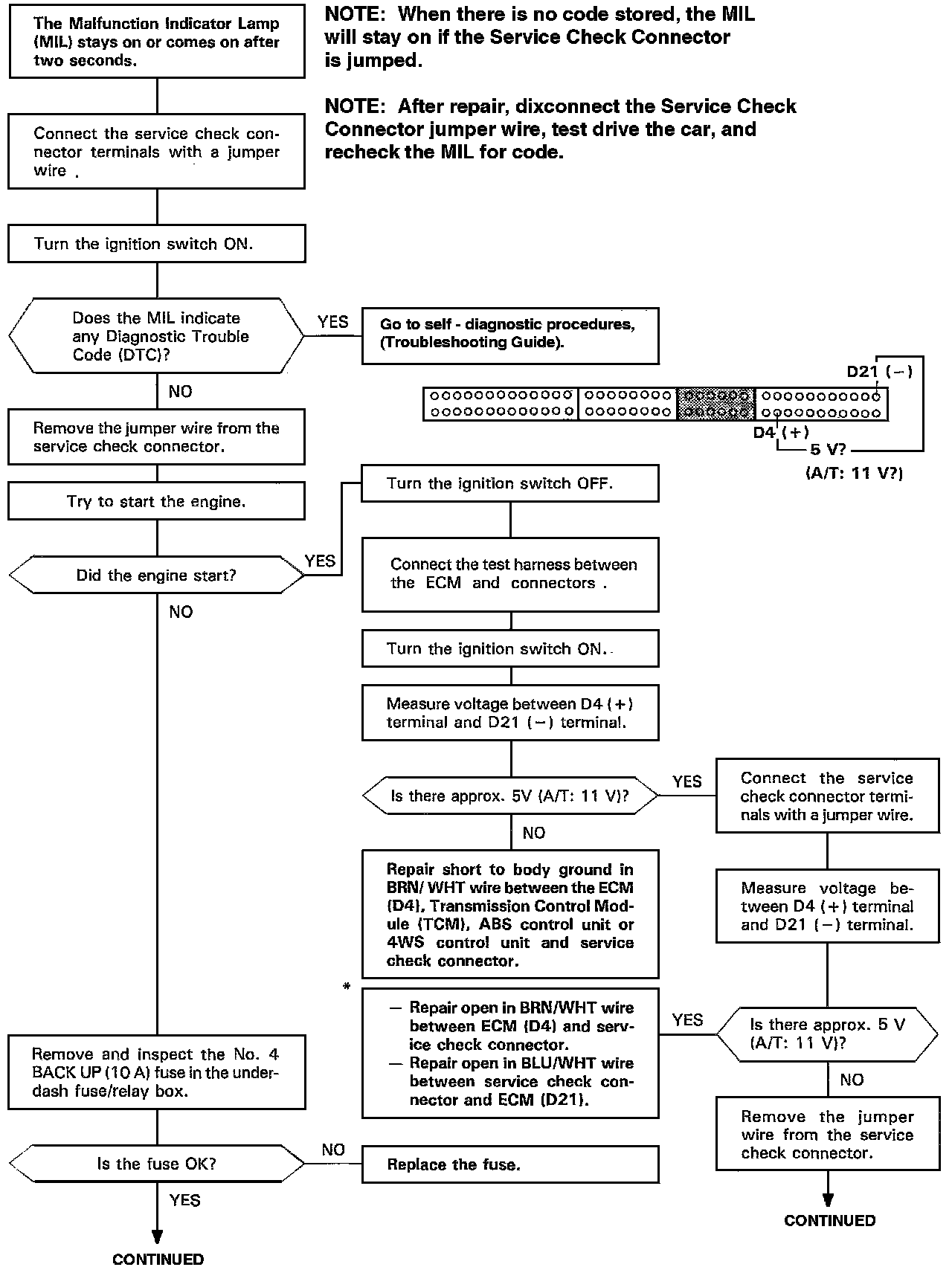

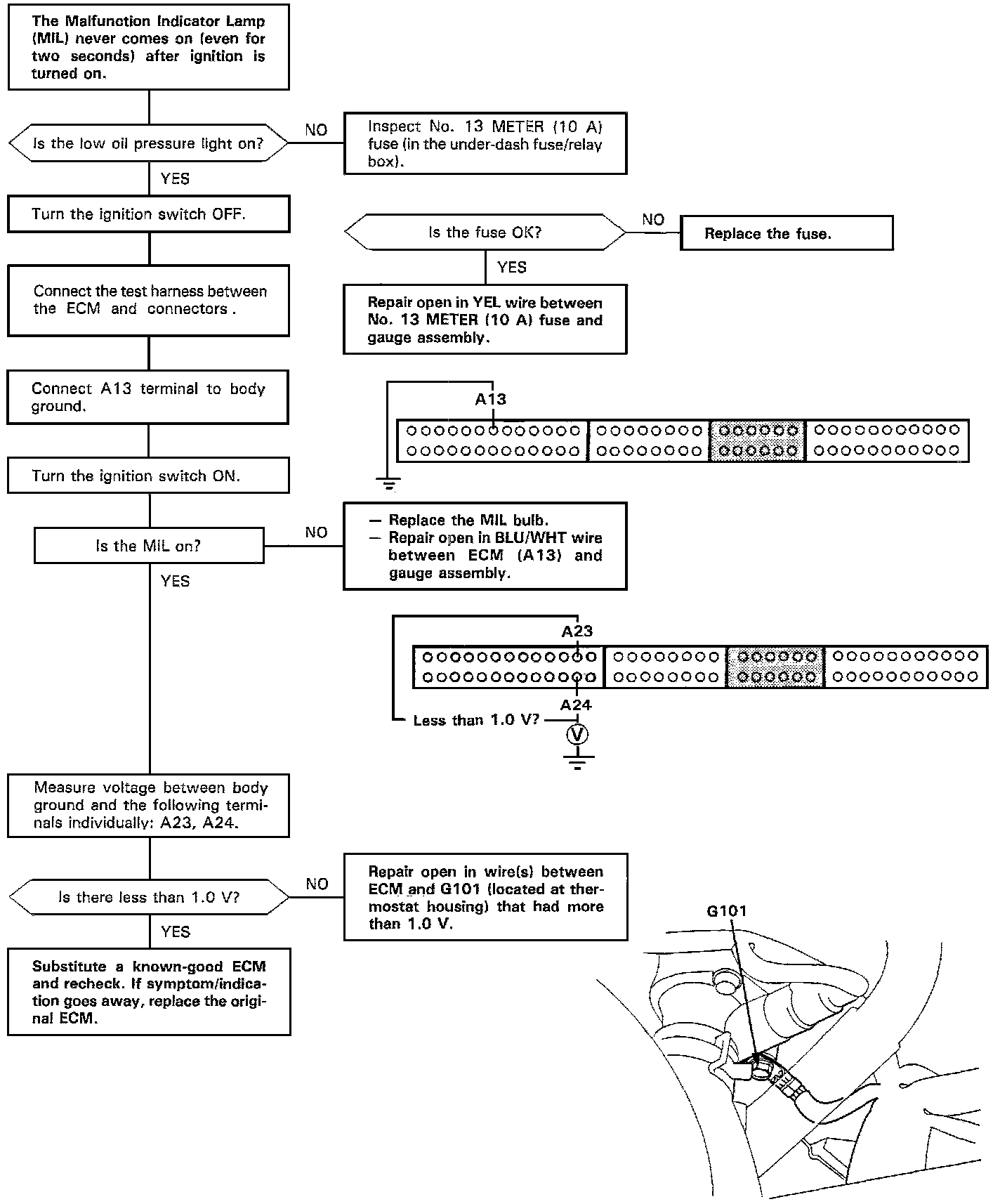

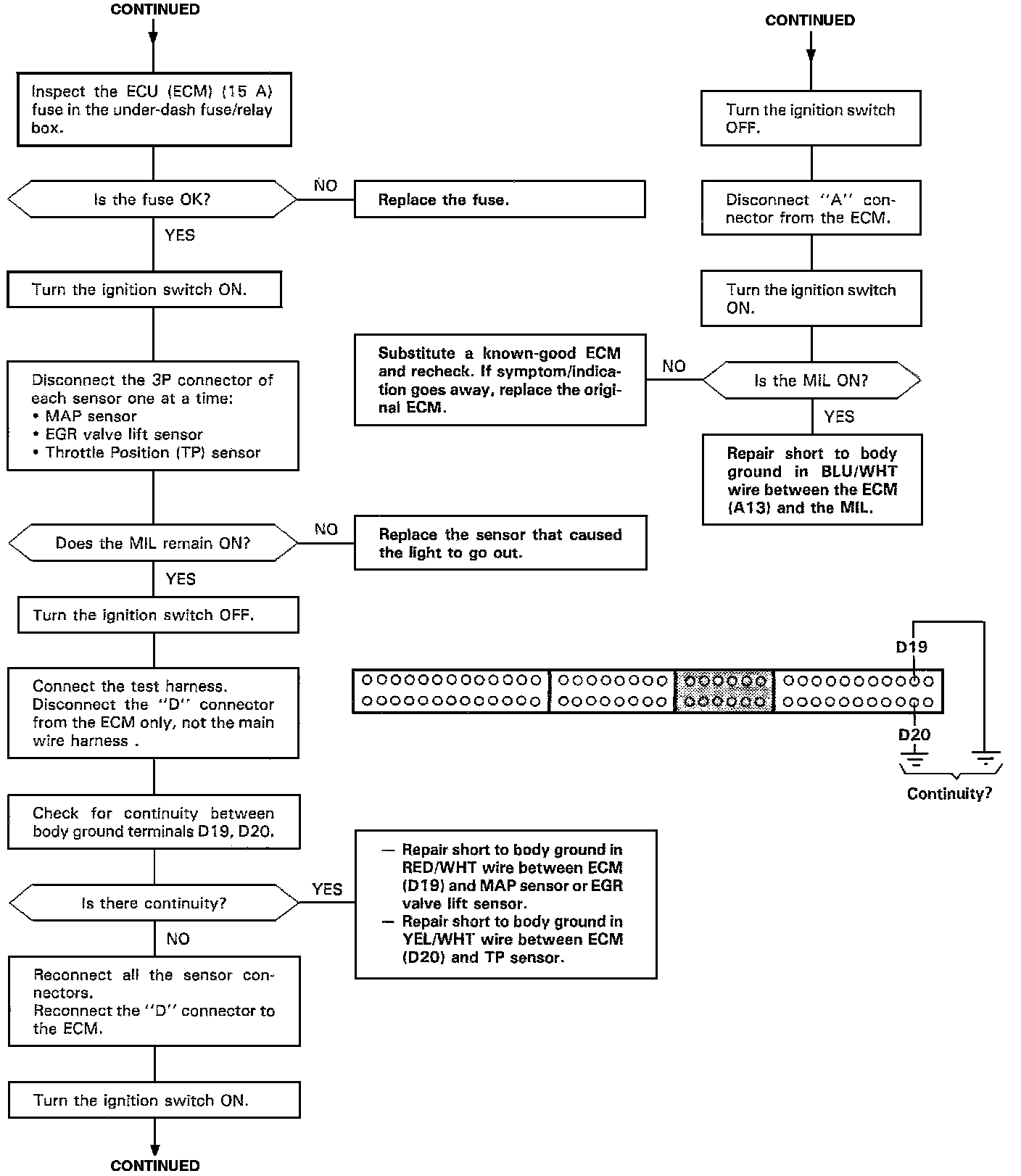

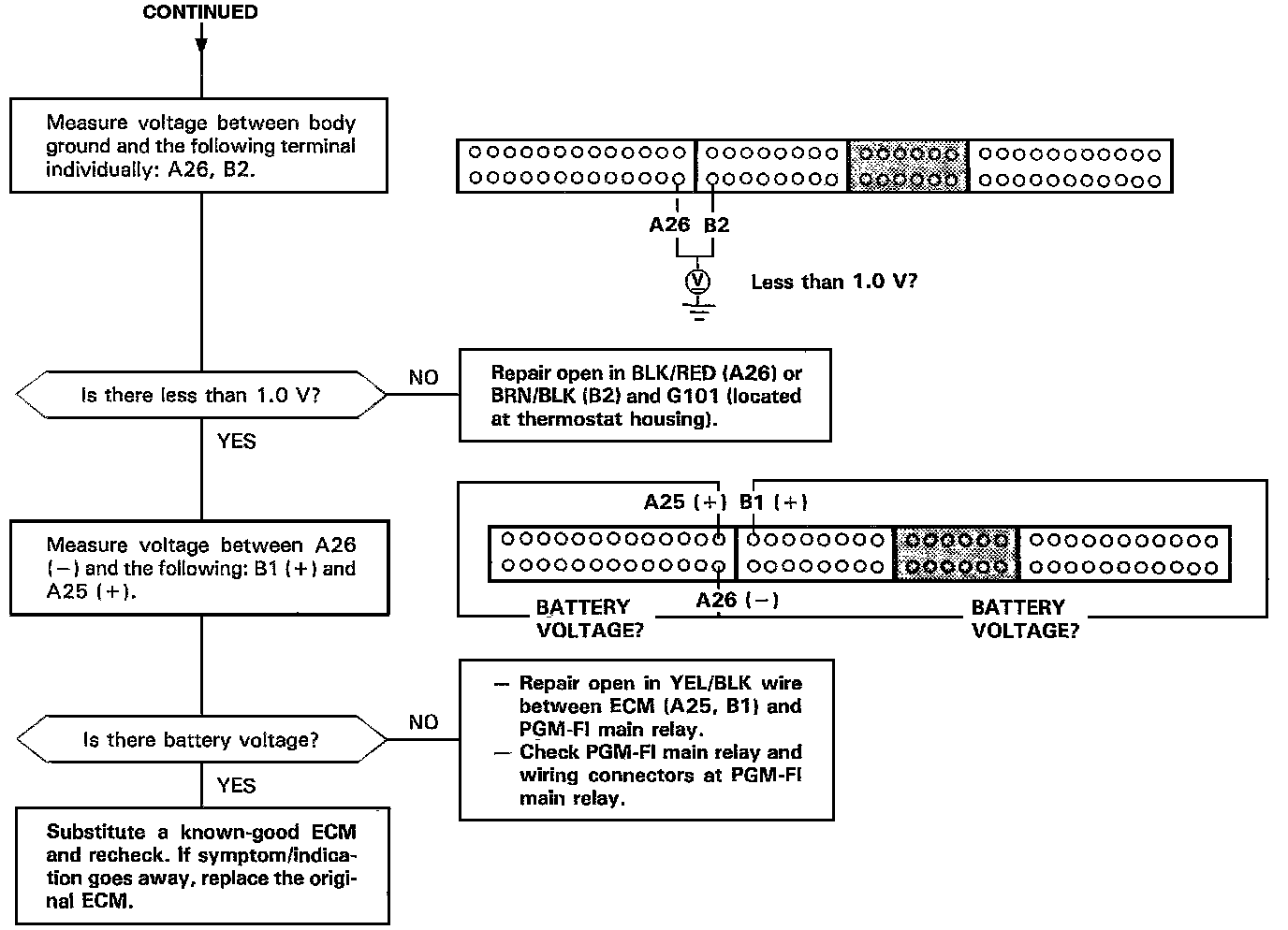

Troubleshooting Flowchart














NOTE: When there is no code stored, the Malfunction Indicator Lamp (MIL) will stay on if the Service Check Connector is shorted and the Ignition Switch is on.

NOTE: After repair, disconnect the Service Check Connector jumper wire, test drive the car, and recheck the MIL for code.
