Chime Module

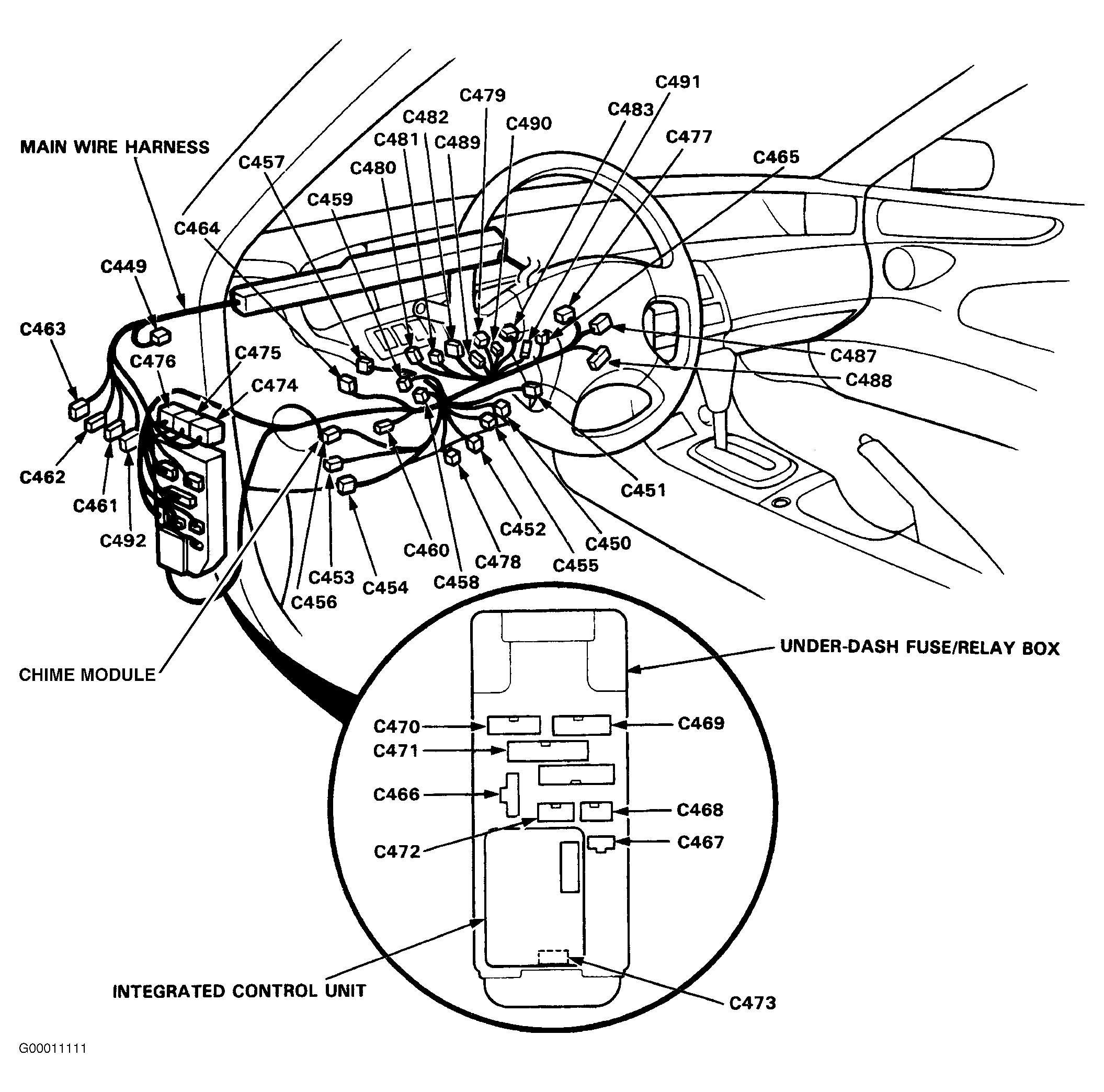

NOTE: Chime module is located under driver's side of instrument panel. See Figure .
  1. Remove the dashboard lower cover and knee bolster. Disconnect the chime module 2-P connector from the main wire harness.
  2. Test chime operation by connecting battery positive to the No. 1 terminal, and negative to the No. 2 terminal, and cycling the power on-off repeatedly. See Fig 1 .
  3. If the chime fails to sound every time power is cycled, replace it.

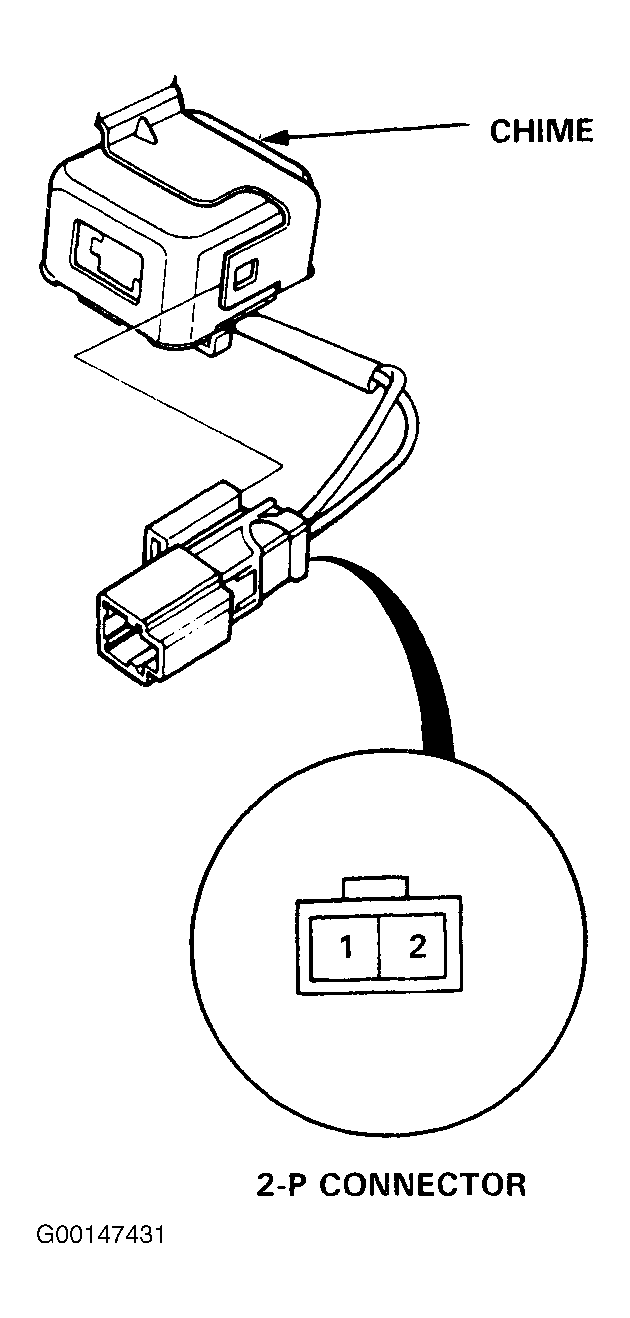

Fig 1: Identifying Chime Module 2-P Connector
G00147431Courtesy of AMERICAN HONDA MOTOR CO., INC.
