Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location
Under-Dash Fuse/Relay Box Behind left kick panel.

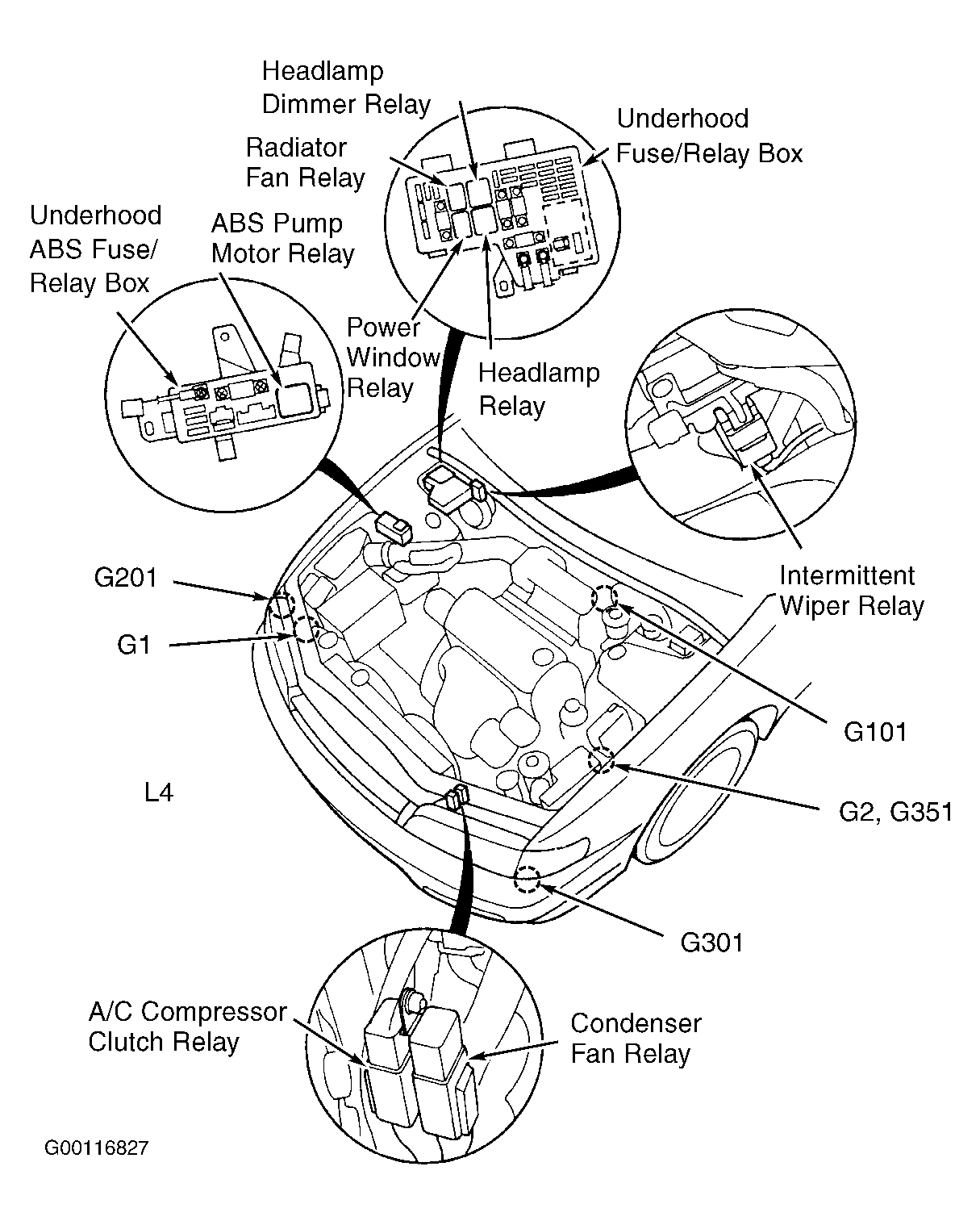

Under-Hood ABS Fuse/Relay Box (2.2L) On right side of engine compartment, on strut tower. See Figure .

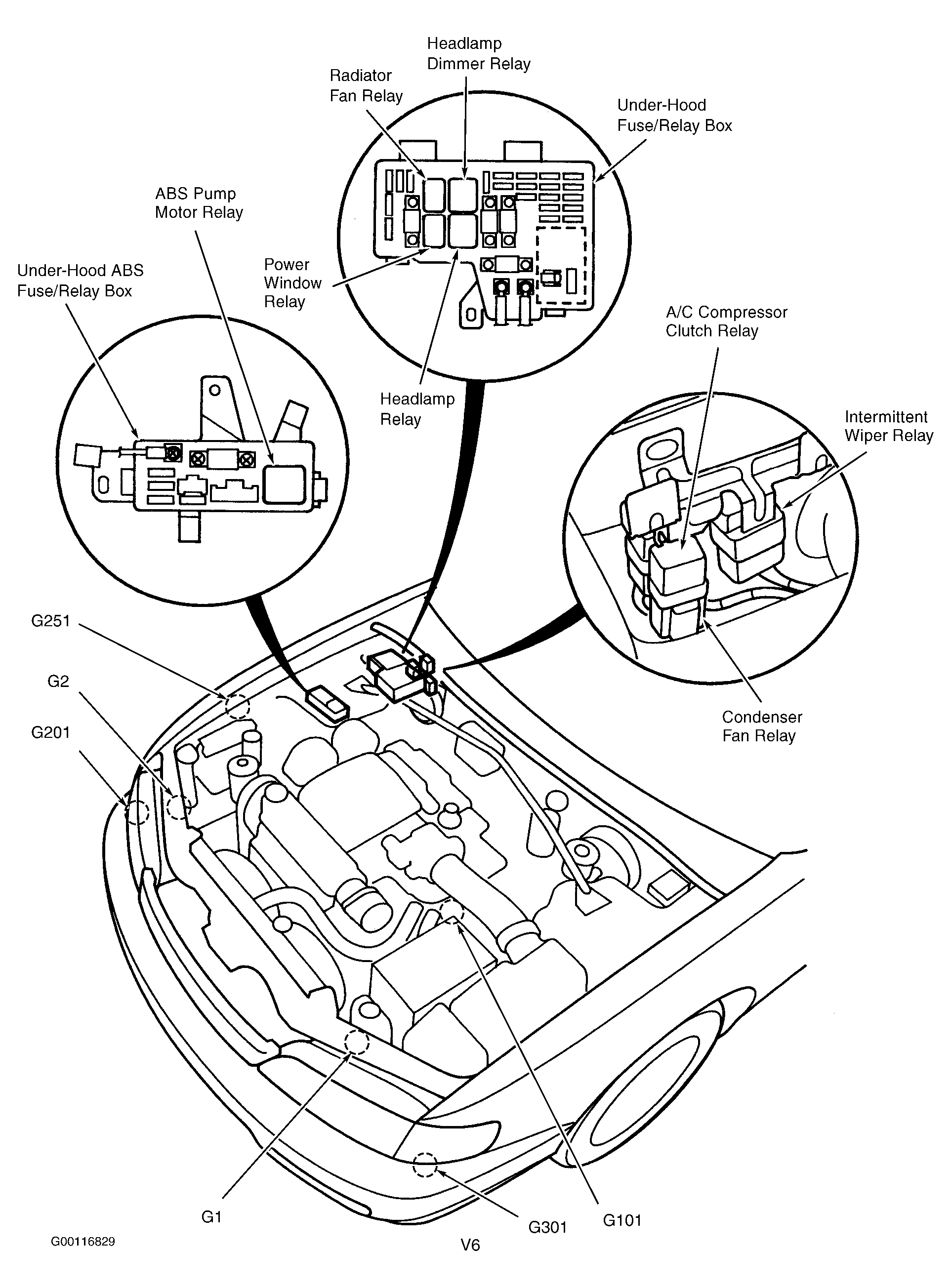

Under-Hood ABS Fuse/Relay Box (2.7L) On right side of engine compartment, on strut tower. See Figure .
Under-Hood Fuse/Relay Box (2.2L) On right rear corner of engine compartment, behind strut tower. See Figure .
Under-Hood Fuse/Relay Box (2.7L) On right rear corner of engine compartment, behind strut tower. See Figure .
