Scan Tool Testing and Procedures

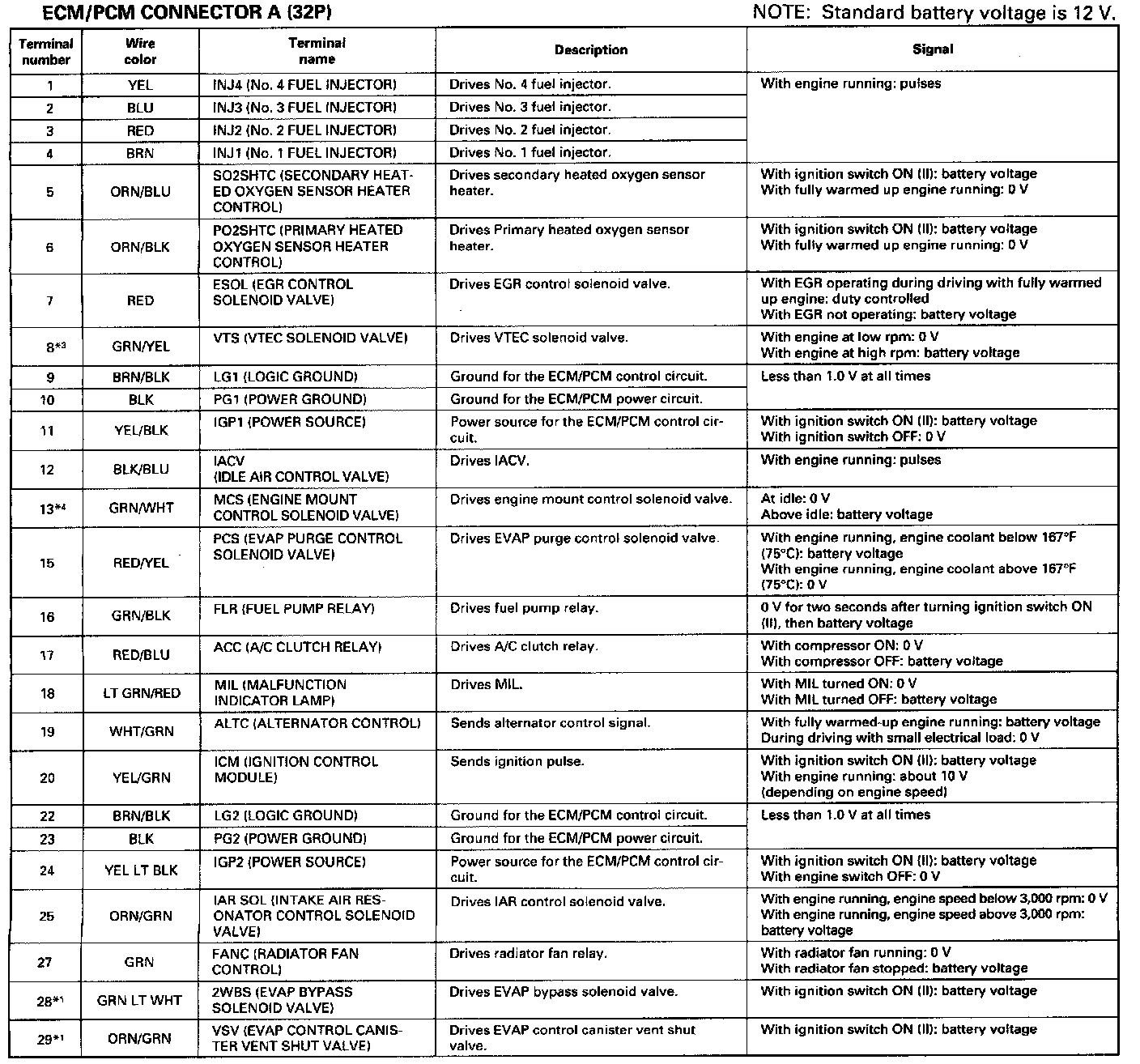

ECM/PCM CONNECTOR A (32P)

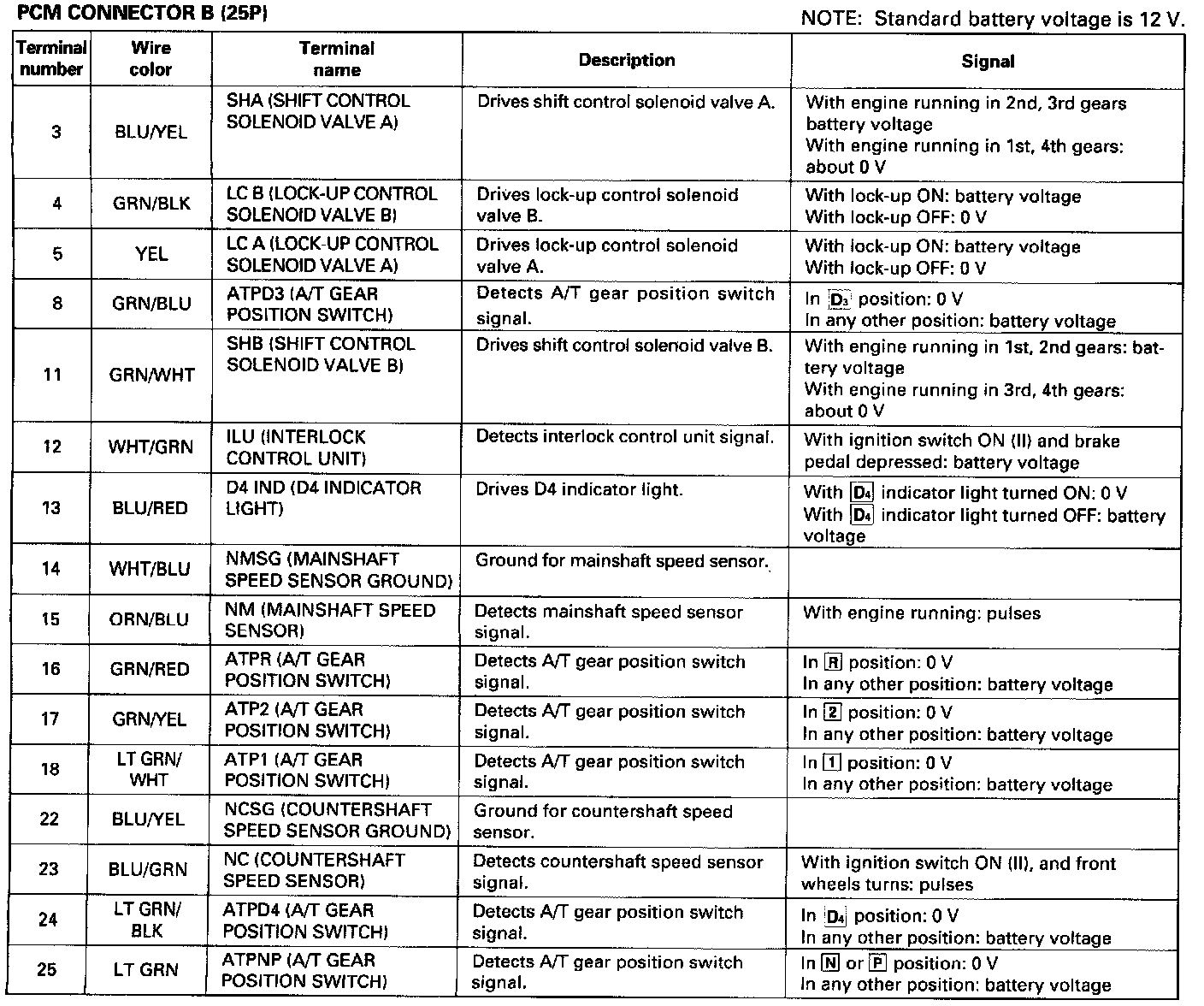

ECM/PCM CONNECTOR B (25P)

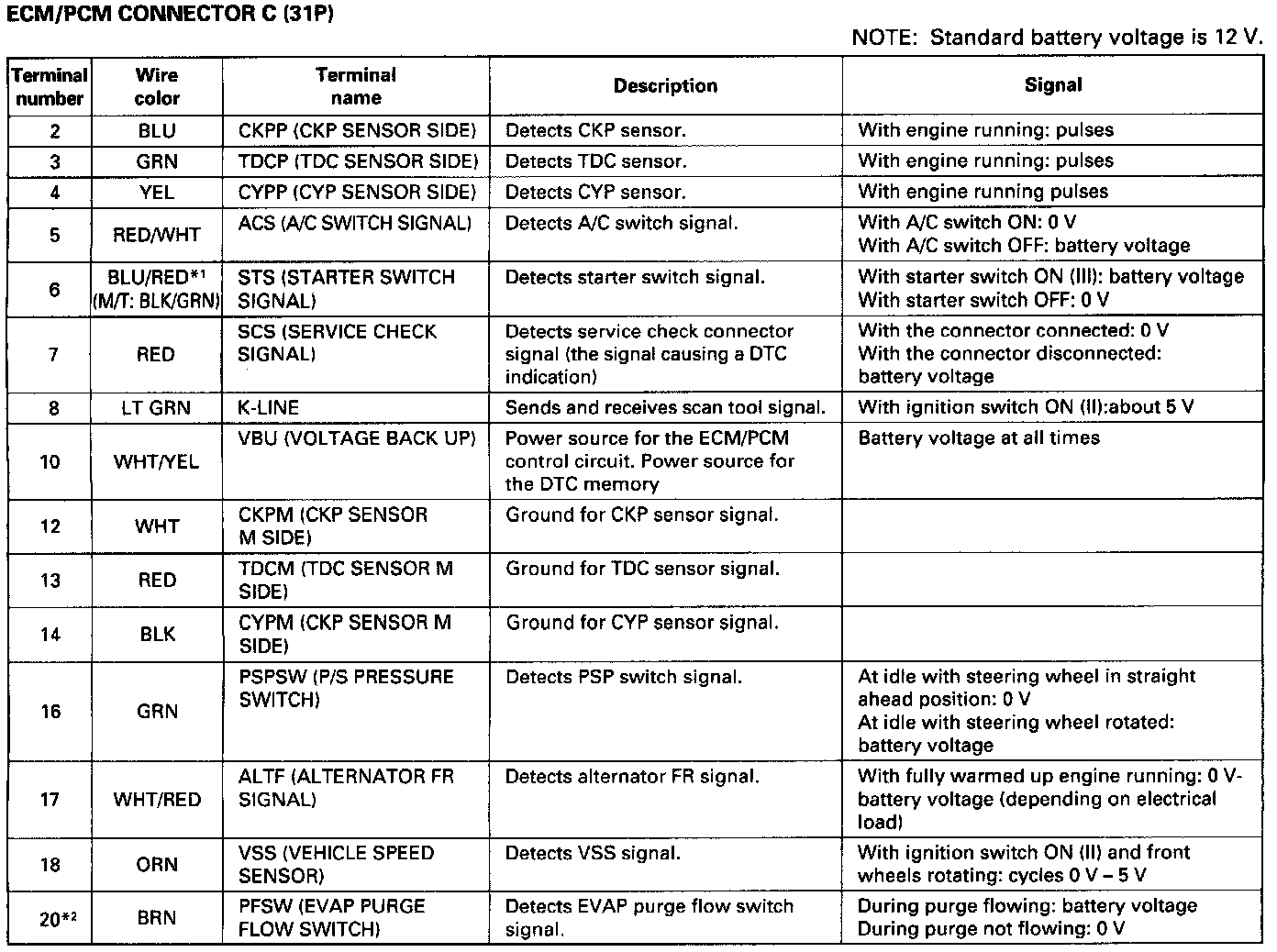

ECM/PCM CONNECTOR C (31P)

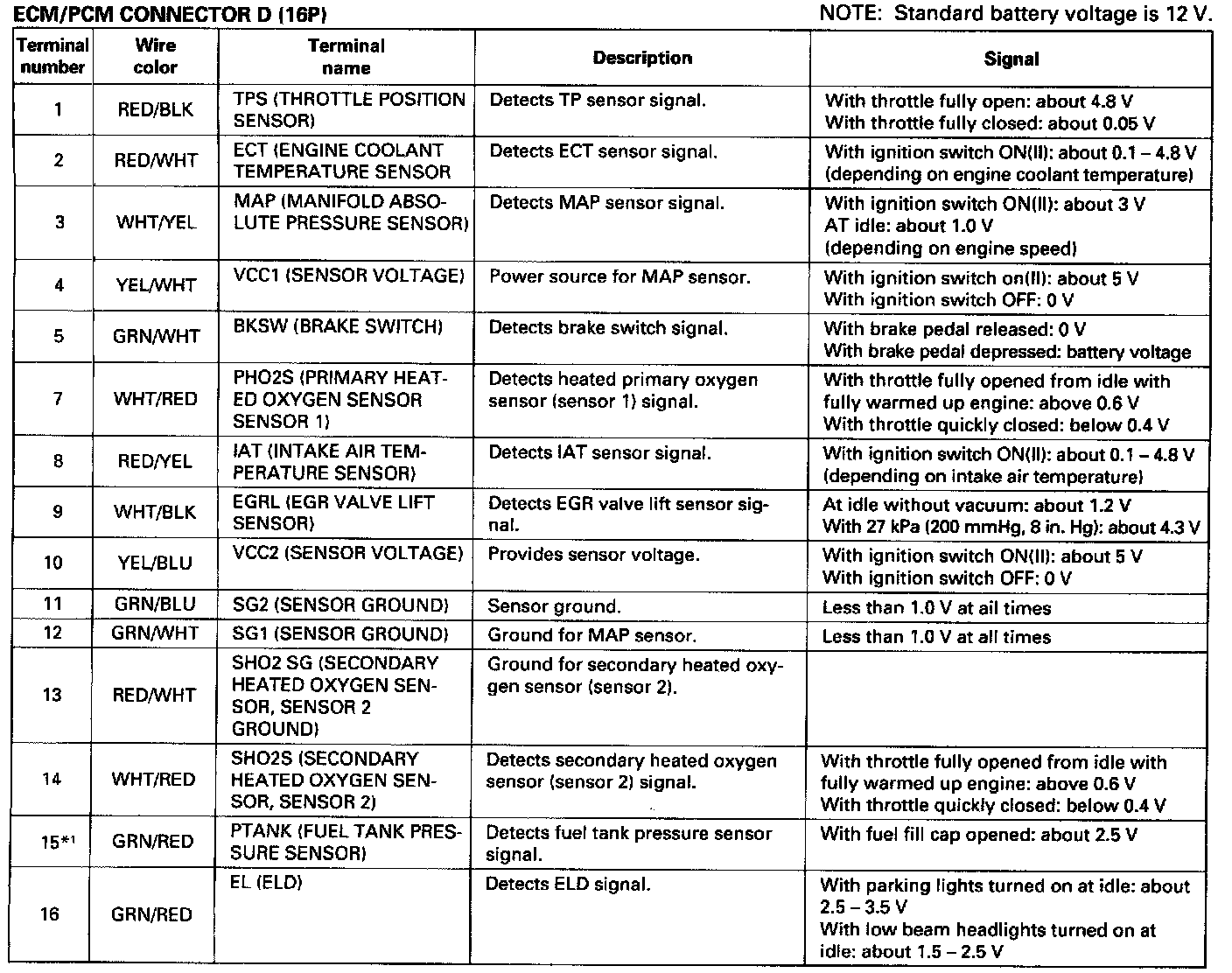

ECM/PCM CONNECTOR D (16P)

NOTE: Standard battery voltage is 12 V.

*1: Sedan KA (EX), KL (DX, LX with ABS, EX), KC (EXR), Coupe models
*2: Sedan KA (DX, LX), KL (LX without ABS), KC (LX, EX), Wagon models
*3: F22B1 engine
*4: A/T
