DTC 81: Central Processing Unit (CPU)
WARNING:
This page is about a different car, the 1996 Honda Civic. However, it is still accessible from the selected car via links, so may be relevant.

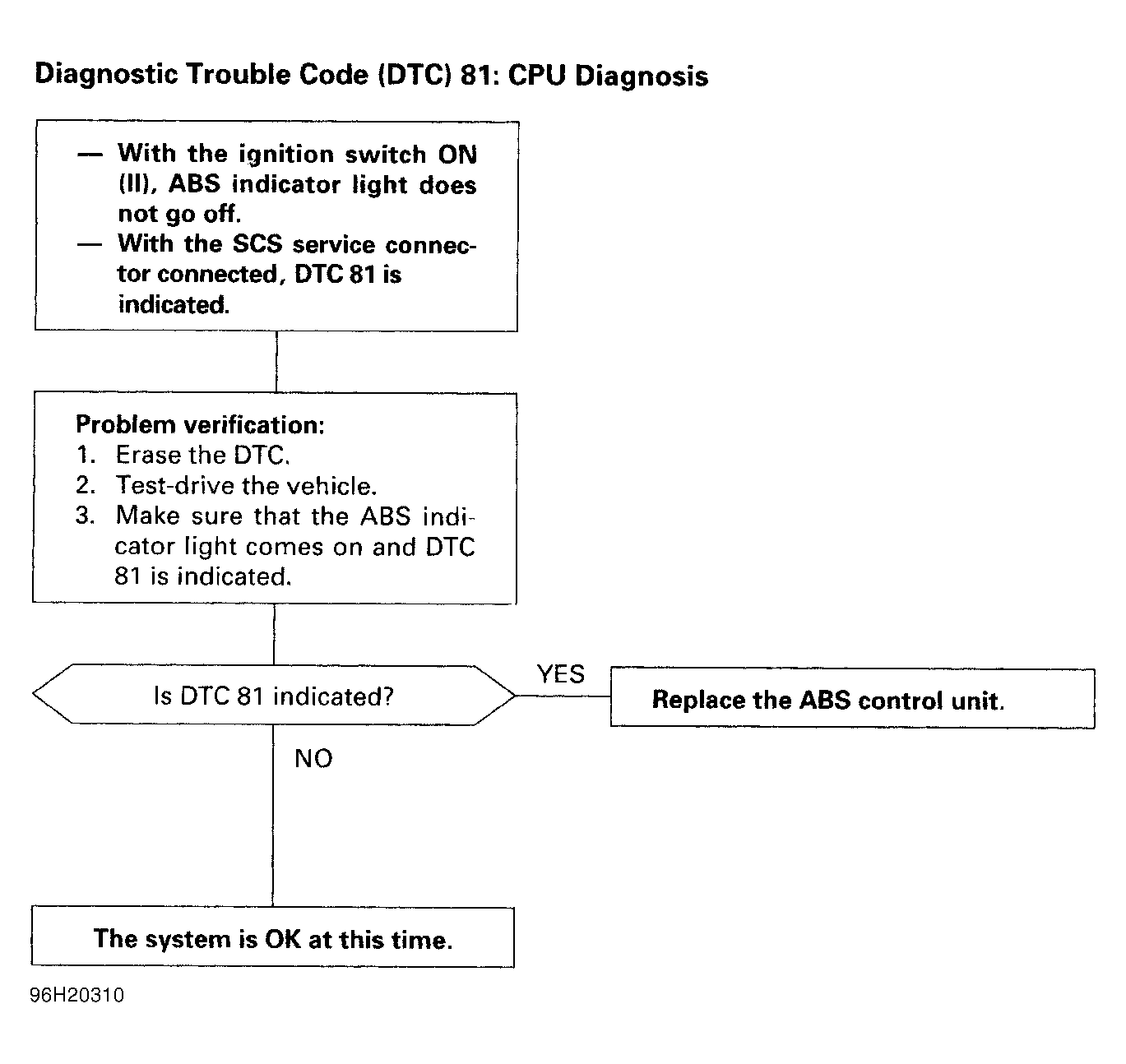

Fig 1: DTC 81: Central Processing Unit (CPU)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
