Control Module HVAC: Testing and Inspection

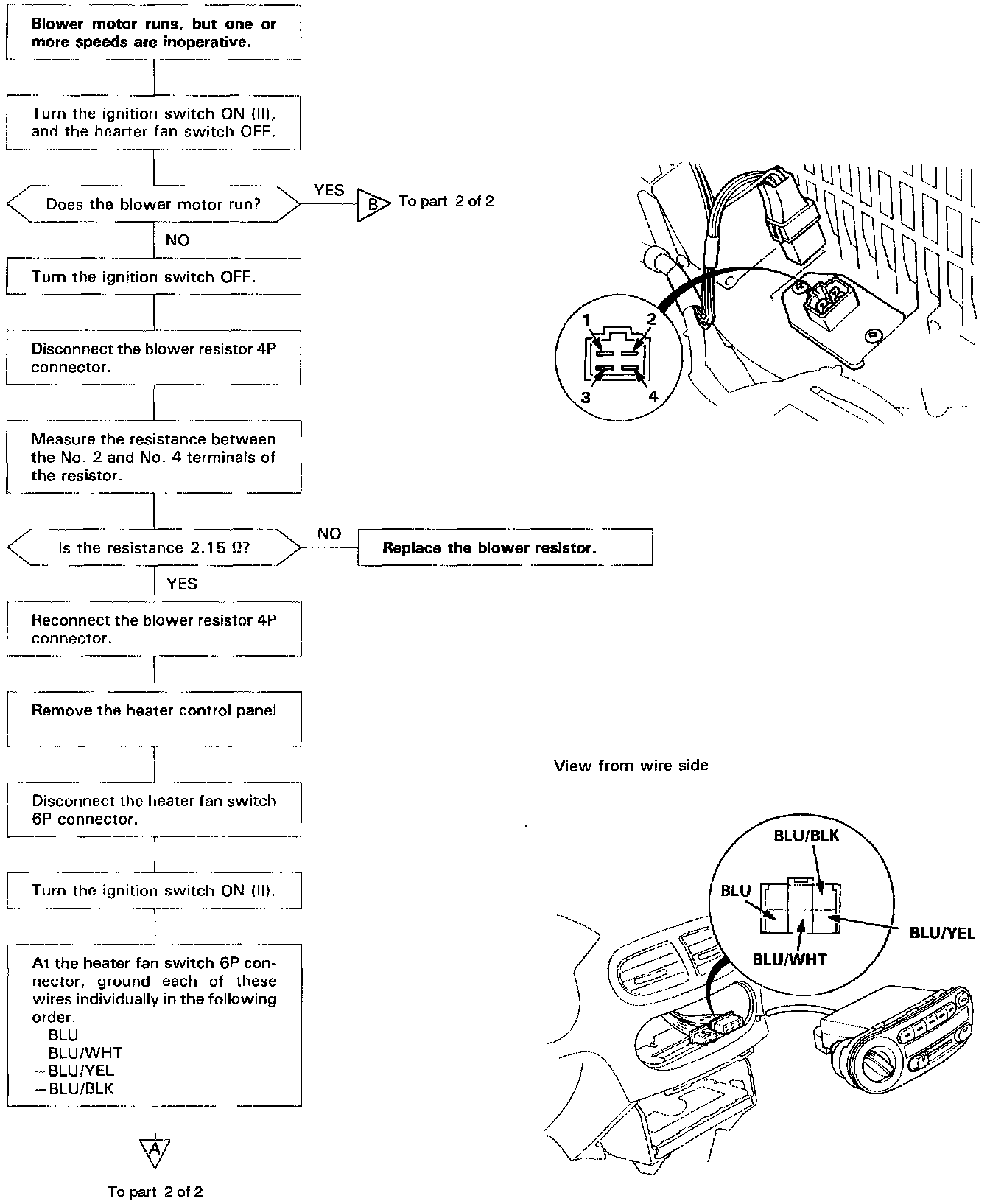

Flow Chart-Blower Motor Speed (Part 1 Of 2):

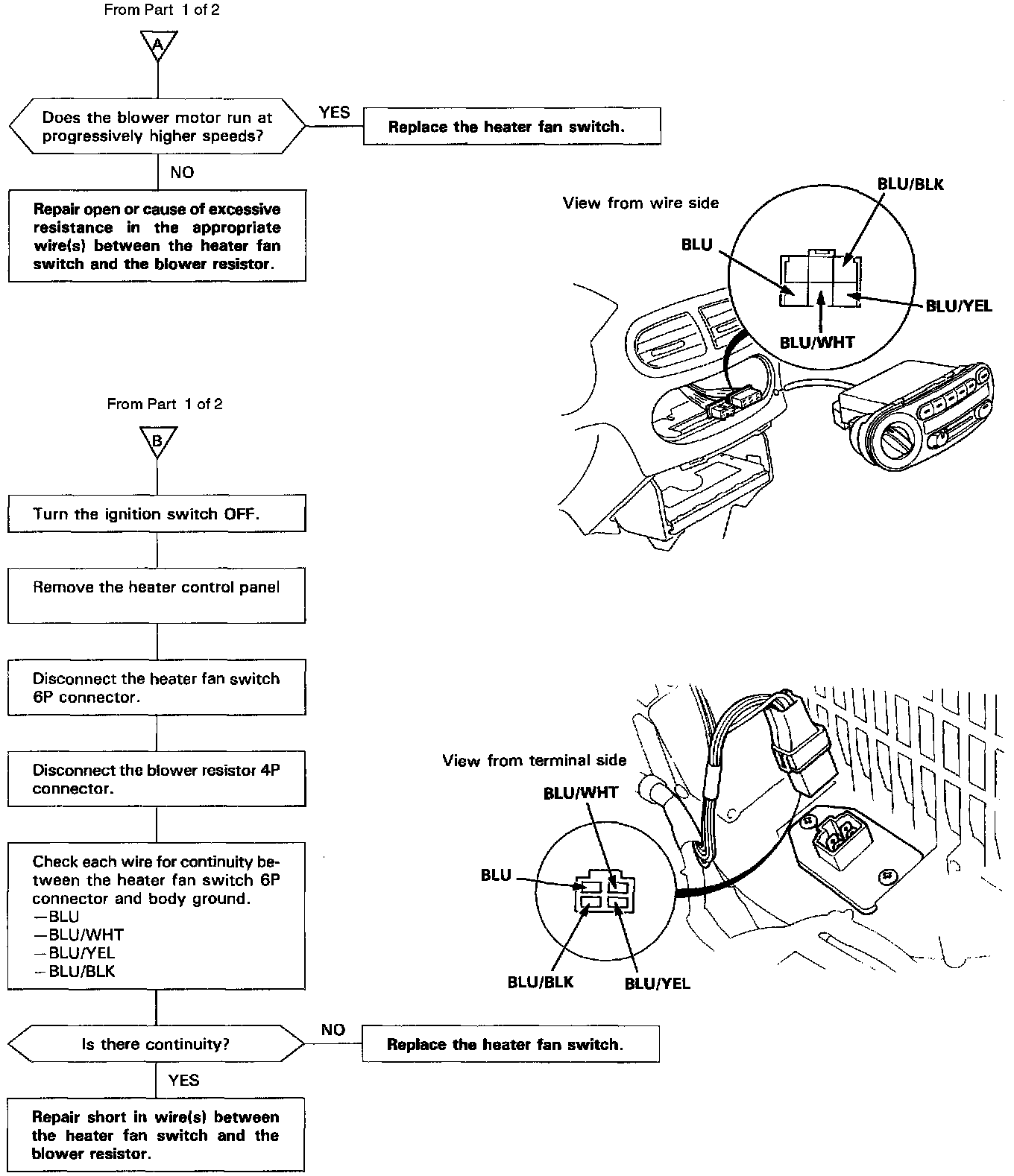

Flow Chart-Blower Motor Speed (Part 2 Of 2):
