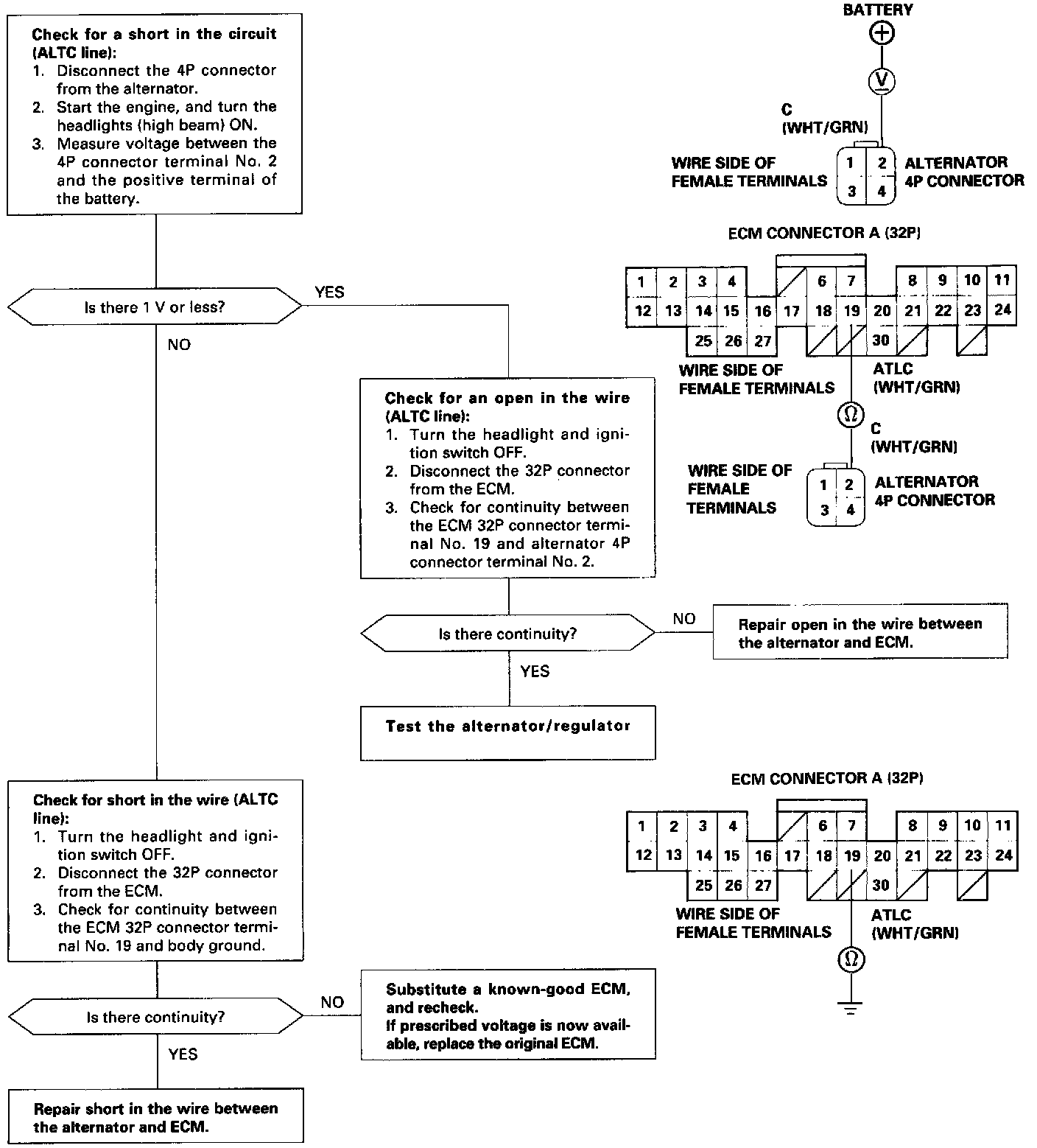

Alternator Control System Test

Troubleshooting-Alternator Control System Test (USA):





NOTE: Before testing, check proper operation of the ELD by confirming with the MIL
