Switch Test

  1. Disconnect negative battery terminal. Remove adjuster cover from driver's seat. Disconnect harness connectors from switch and remove power seat switch.
  2. Using a DVOM, check continuity between terminals according to continuity tables. SeeFig 1 and Fig 2 . If continuity is not as indicated in tables, replace switch.

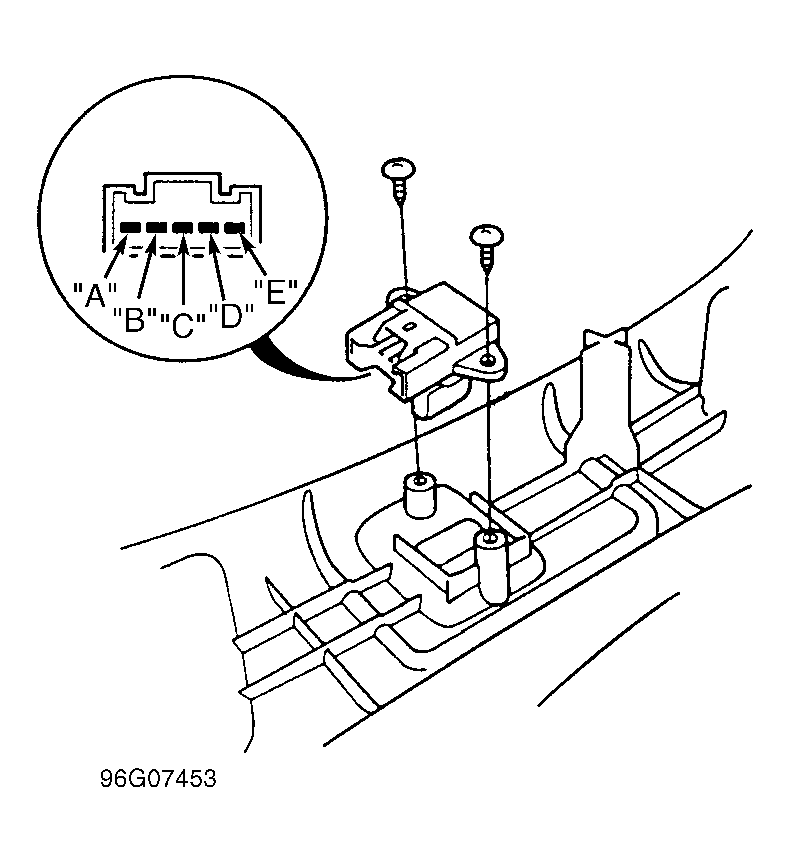

Fig 1: Power Height Adjustment Switch Location/Terminals
G96G07453Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 2: Testing Power Height Adjustment Switch
G96E07447Courtesy of AMERICAN HONDA MOTOR CO., INC.
