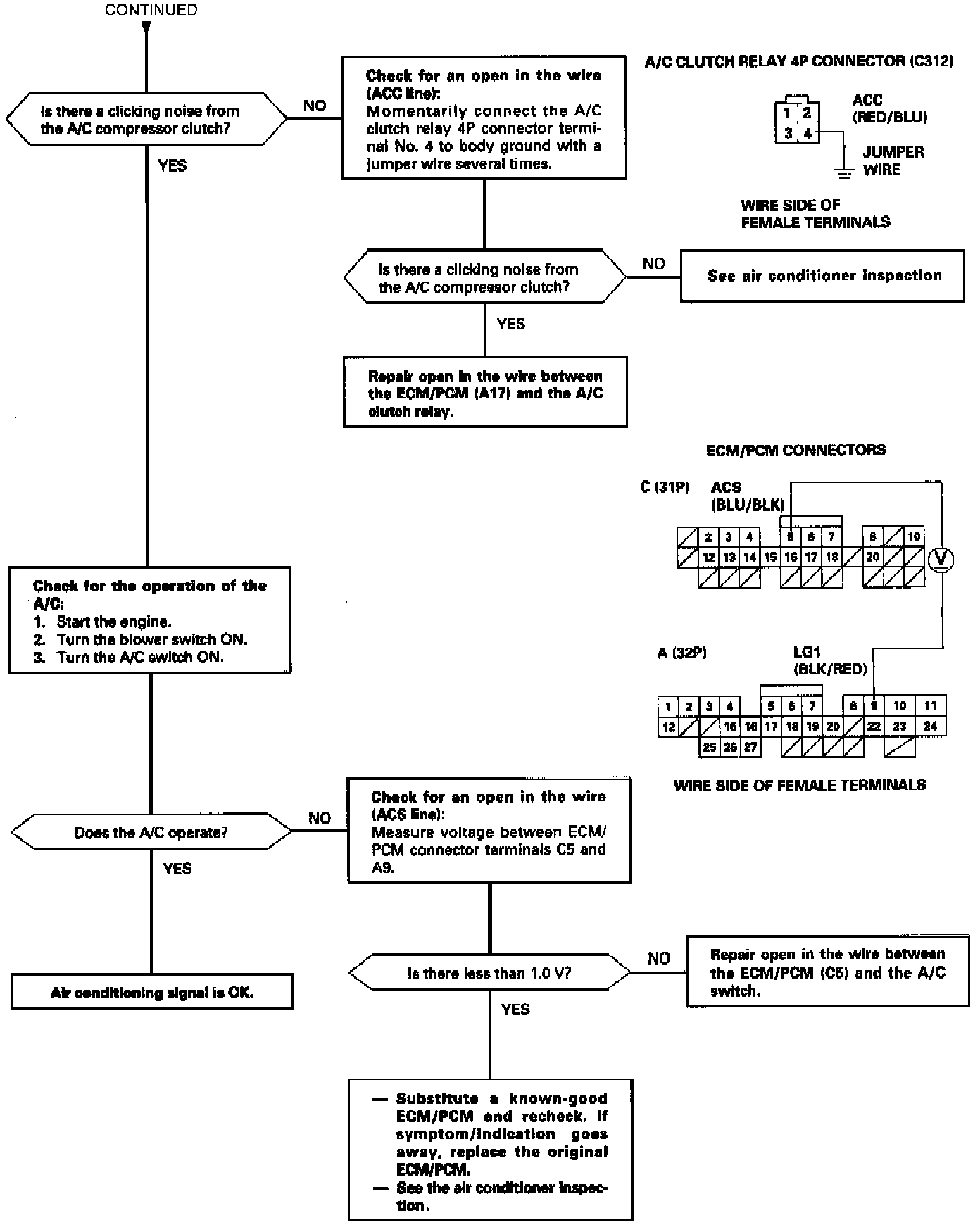

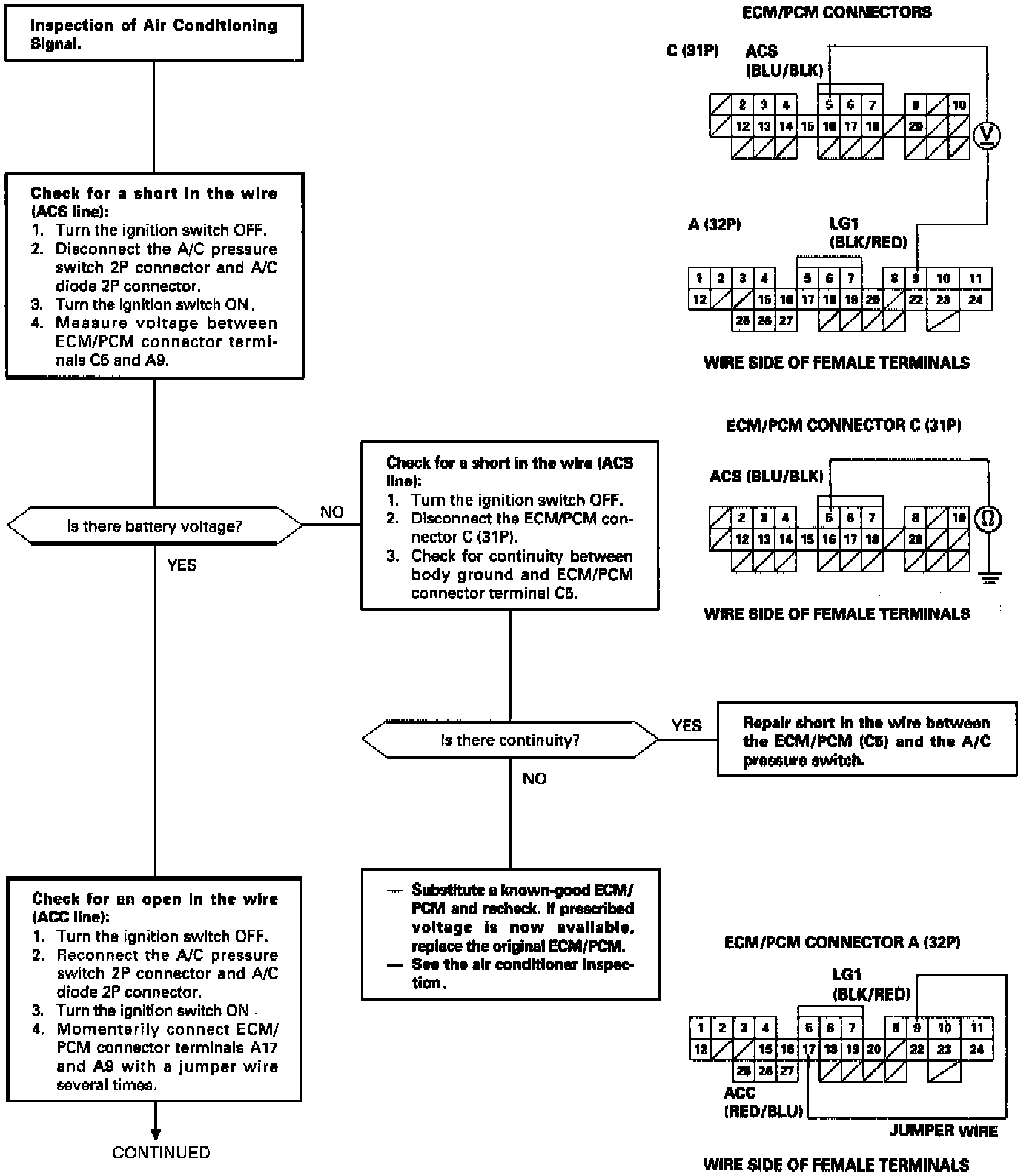

A/C Signal: Testing and Inspection








This signals the ECM/PCM when there is a demand for cooling from the air conditioning system.
