Ignition Key-In Switch

  1. Remove the dashboard lower cover and knee bolster. Disconnect the 8-P connector from the main wire harness. See Fig 1 .
  2. There should be continuity between the No. 1 and No. 5 terminals when the ignition key is inserted. There should be no continuity with the ignition key removed.

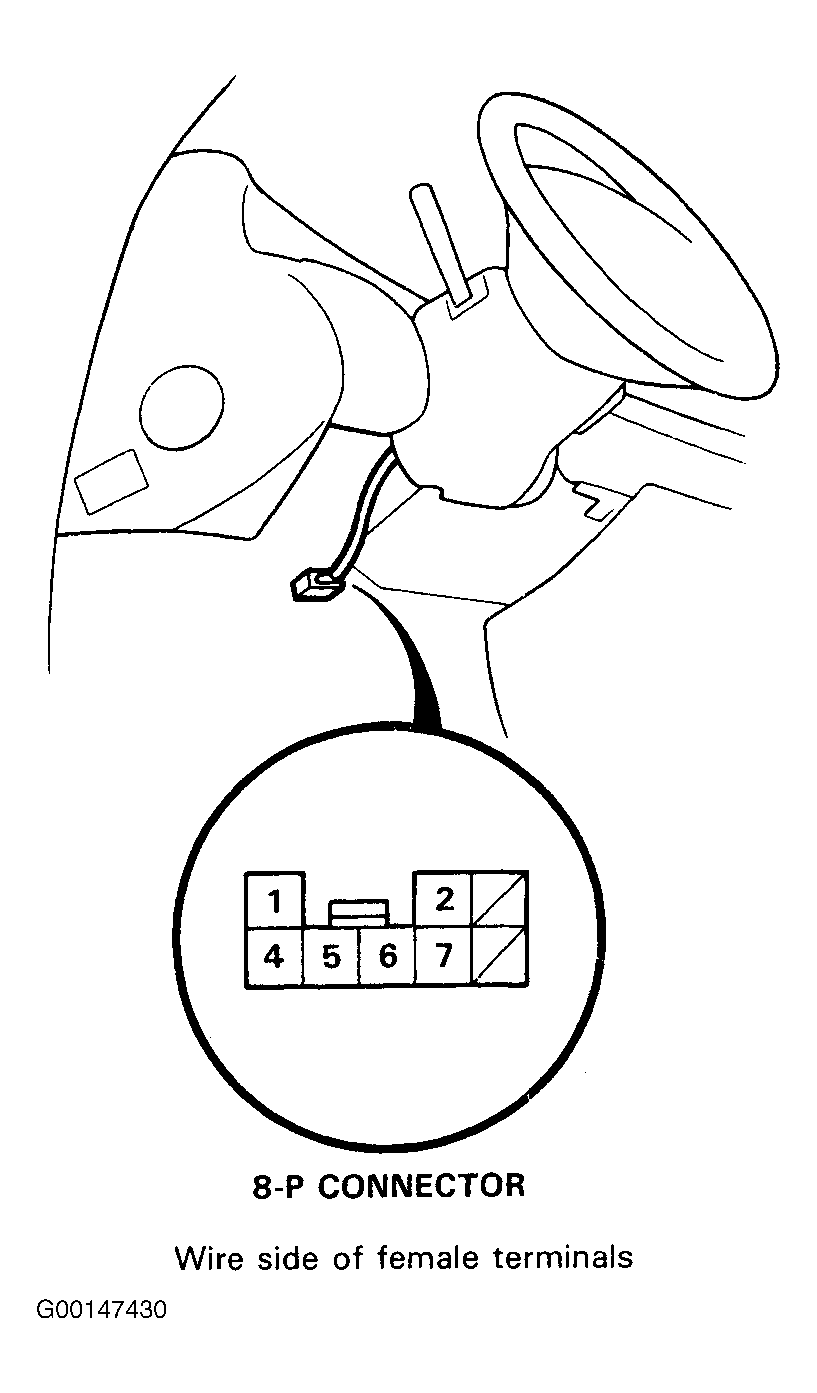

Fig 1: Locating & Identifying 8-P Connector
G00147430Courtesy of AMERICAN HONDA MOTOR CO., INC.
