Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component |
Component Location |

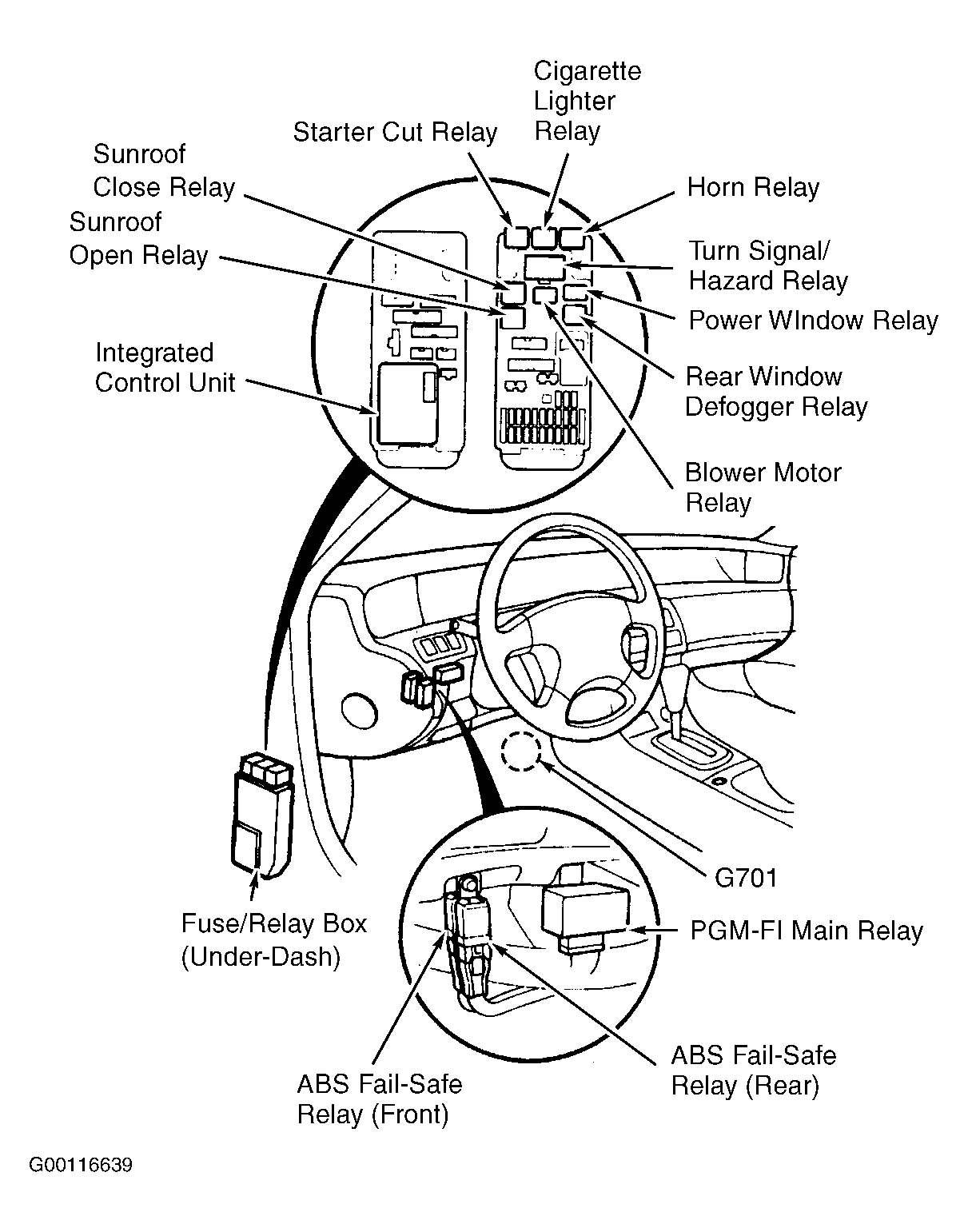

| Fuse/Relay Box (Under-Dash) |
Behind left kick panel. See Figure
. |

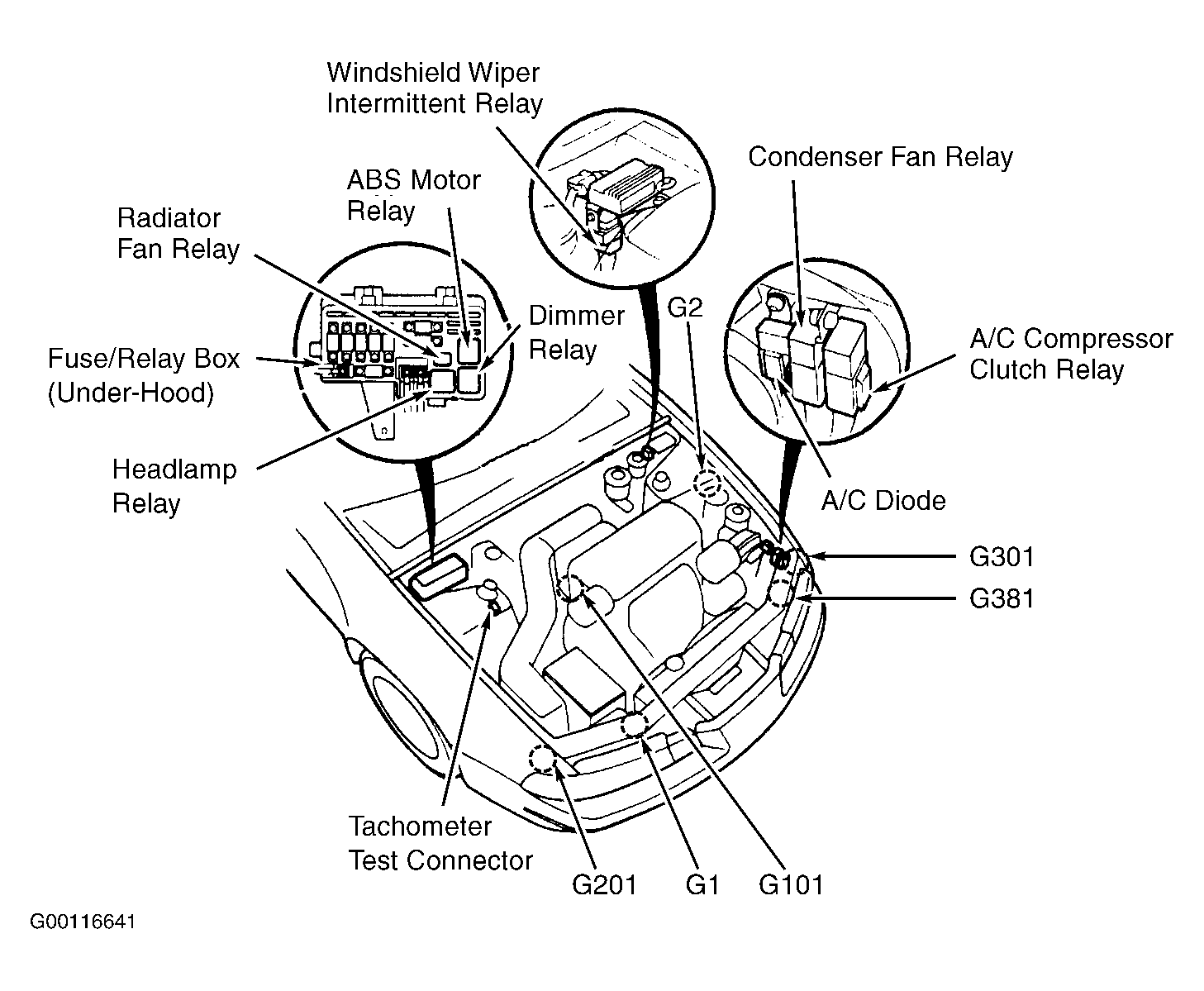

| Fuse/Relay Box (Under-Hood) |
In right rear corner of engine compartment, behind strut tower. See Figure
. |
