Cruise Control Unit Input Test
WARNING:
Deactivate air bag system before performing any service operation. See appropriate AIR BAG RESTRAINT SYSTEM article. Do not apply electrical power to any component on steering column without first deactivating air bag system. Air bag may deploy.
AIR BAG RESTRAINT SYSTEM - 1995
AIR BAG RESTRAINT SYSTEM - 1996
- Turn ignition off. Remove dashboard lower left cover. Cruise control unit is located above steering column under dashboard. Unplug cruise control unit 14-pin connector.

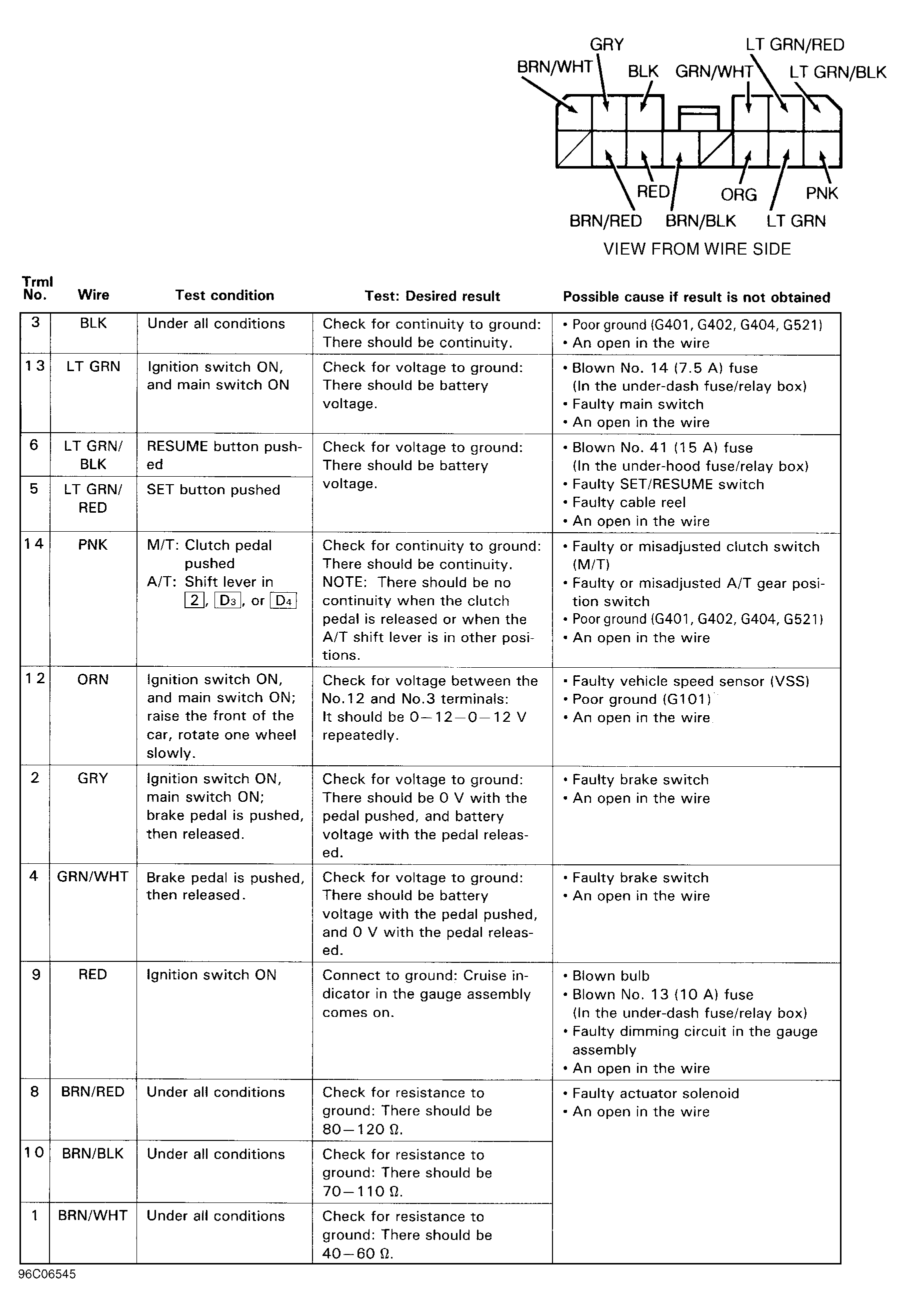

- Using a DVOM, perform cruise control unit input tests. See Fig 1 . If all input test results are okay, check cruise control unit connector for damage and proper fit to cruise control unit. If connector is okay and cruise control is still malfunctioning, replace cruise control unit.
