CR-V MDMA
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Anti-Lock Brake System
>>
Pin Voltage
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Pin Voltage

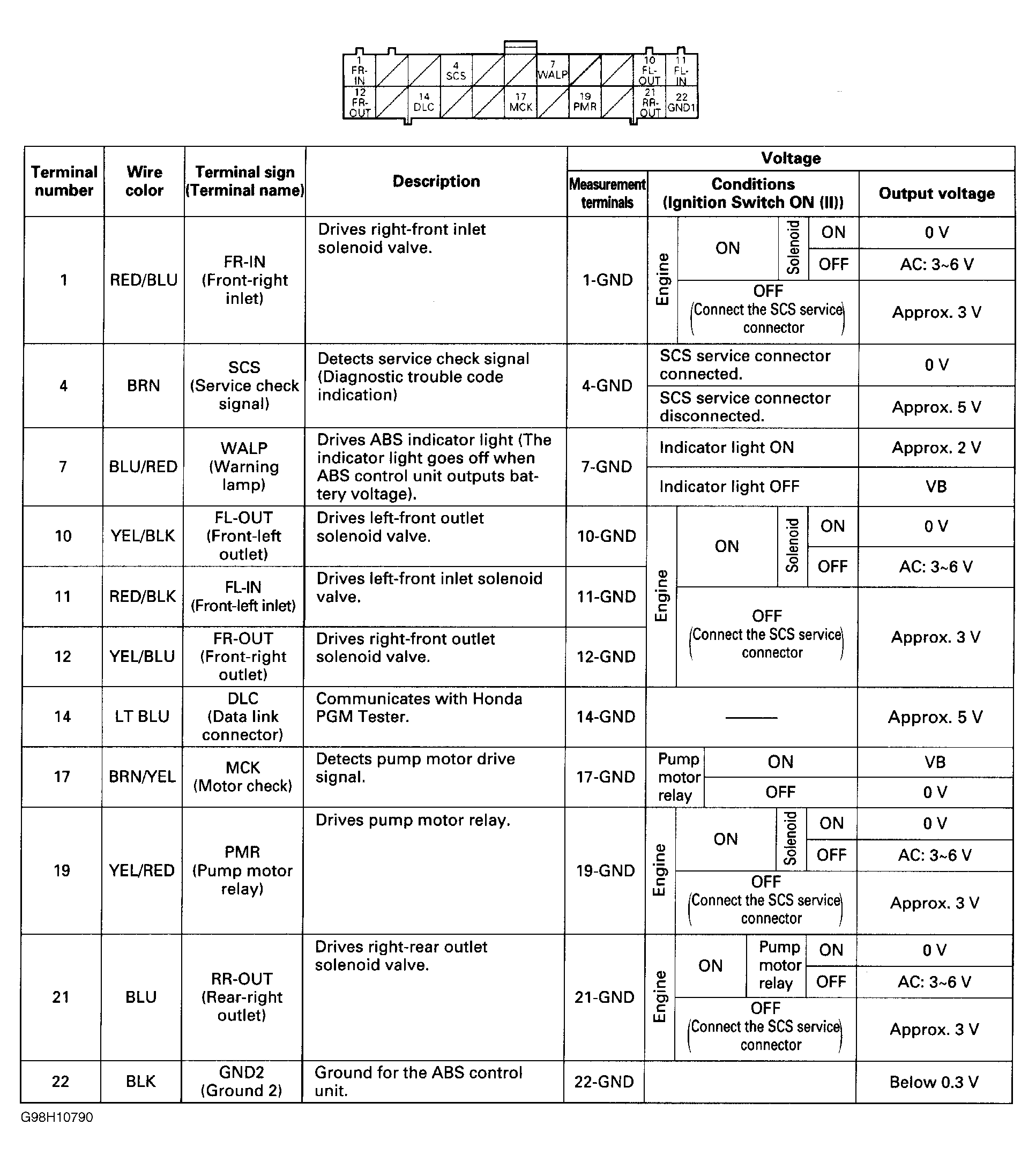

Fig 1: Identifying Orange 22-Pin ABS Control Unit Connector Pin Voltage Chart
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

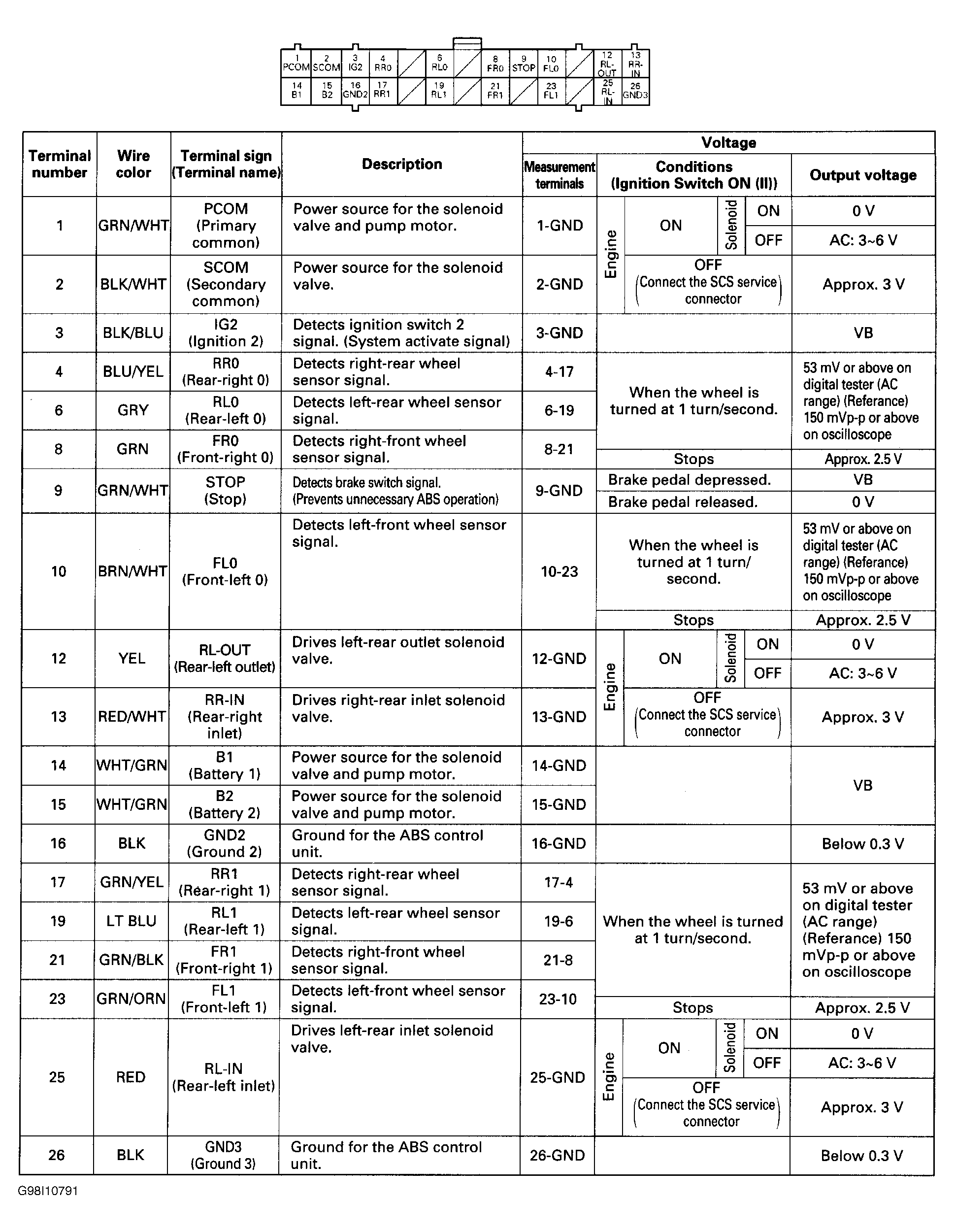

Fig 2: Identifying Orange 26-Pin ABS Control Unit Connector Pin Voltage Chart
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
