Quick-Connect Fittings

Relieve fuel pressure. See FUEL SYSTEM PRESSURE RELEASE . Check quick-connect fittings for dirt and clean if necessary. Grasp connector with one hand. With other hand, squeeze retainer tabs inward. See Fig 1. Pull fuel lines apart.

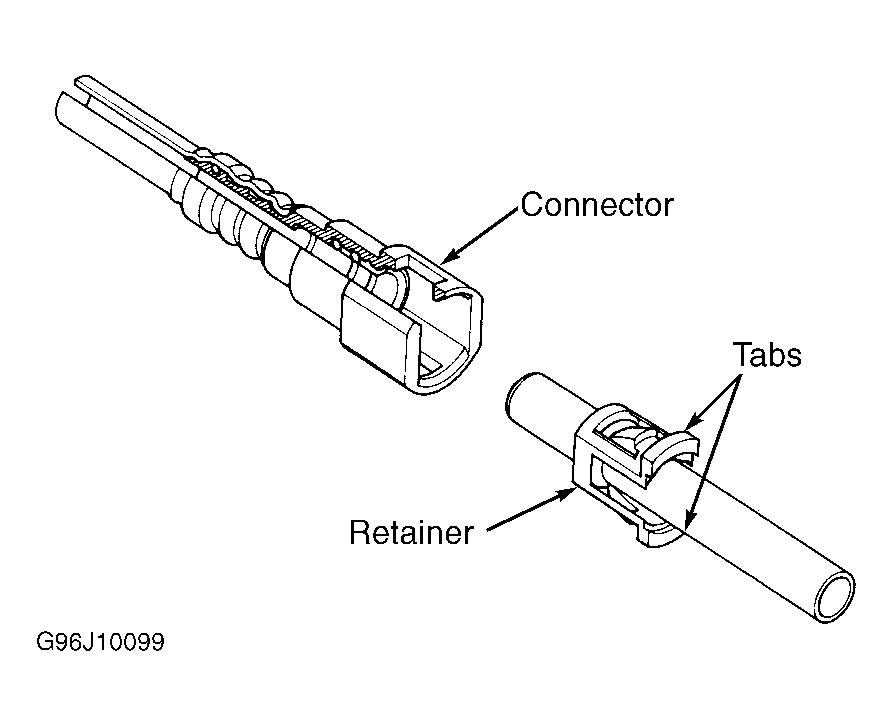

Fig 1: Identifying Quick-Connect Fuel Line

Courtesy of AMERICAN HONDA MOTOR CO., INC.
