Automatic Transmission

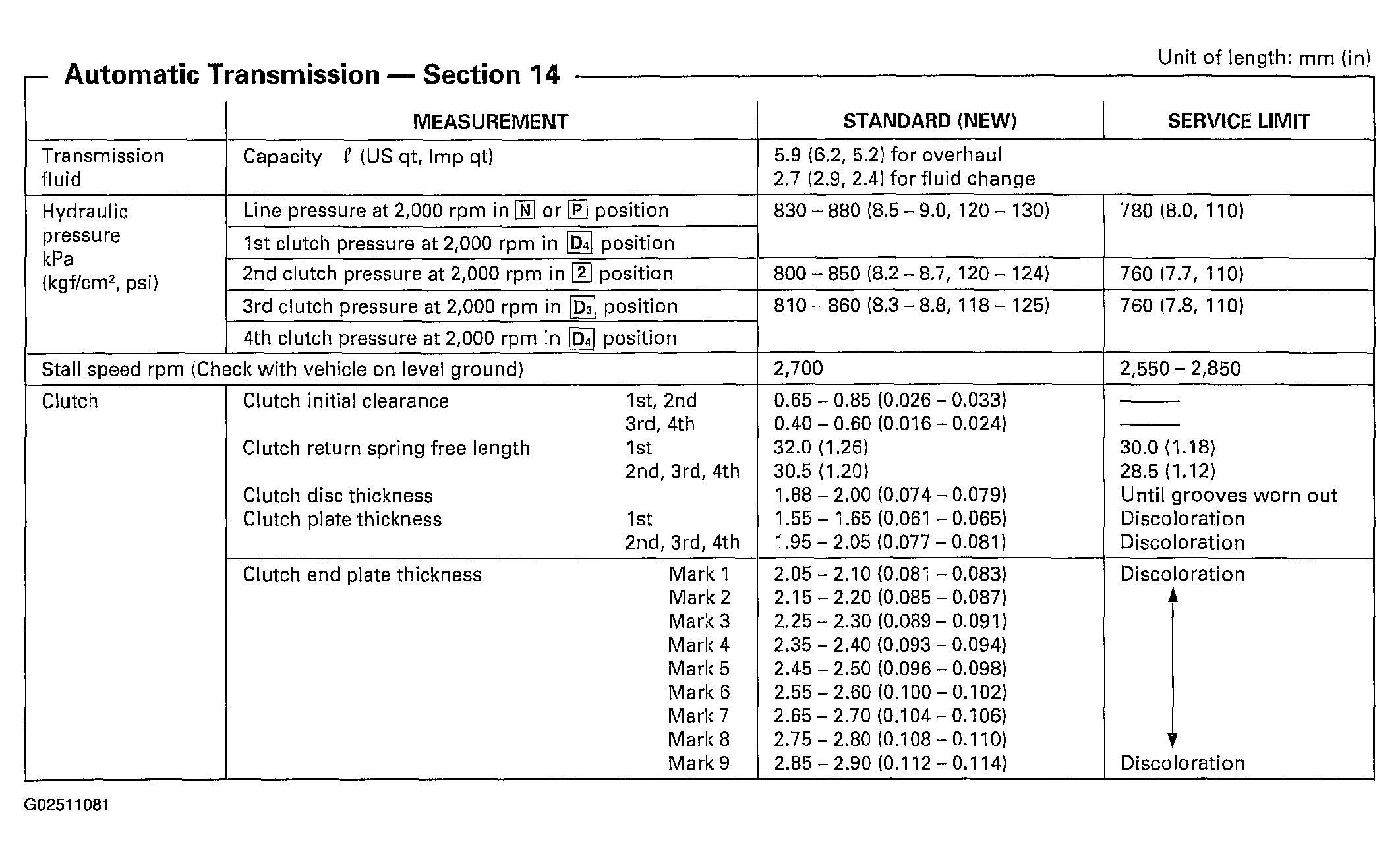

Fig 1: Automatic Transmission Specification Table (1 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

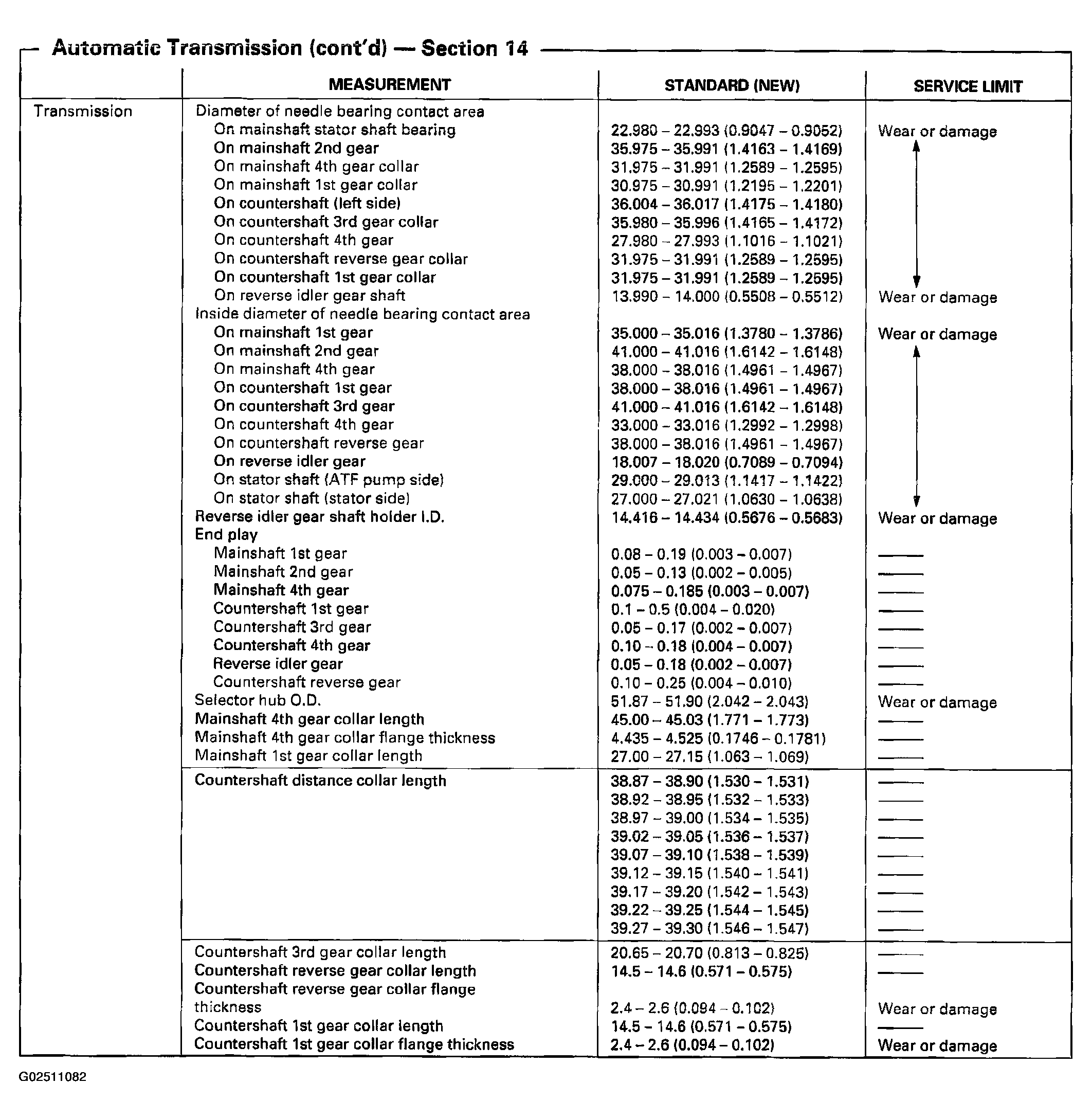

Fig 2: Automatic Transmission Specification Table (2 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

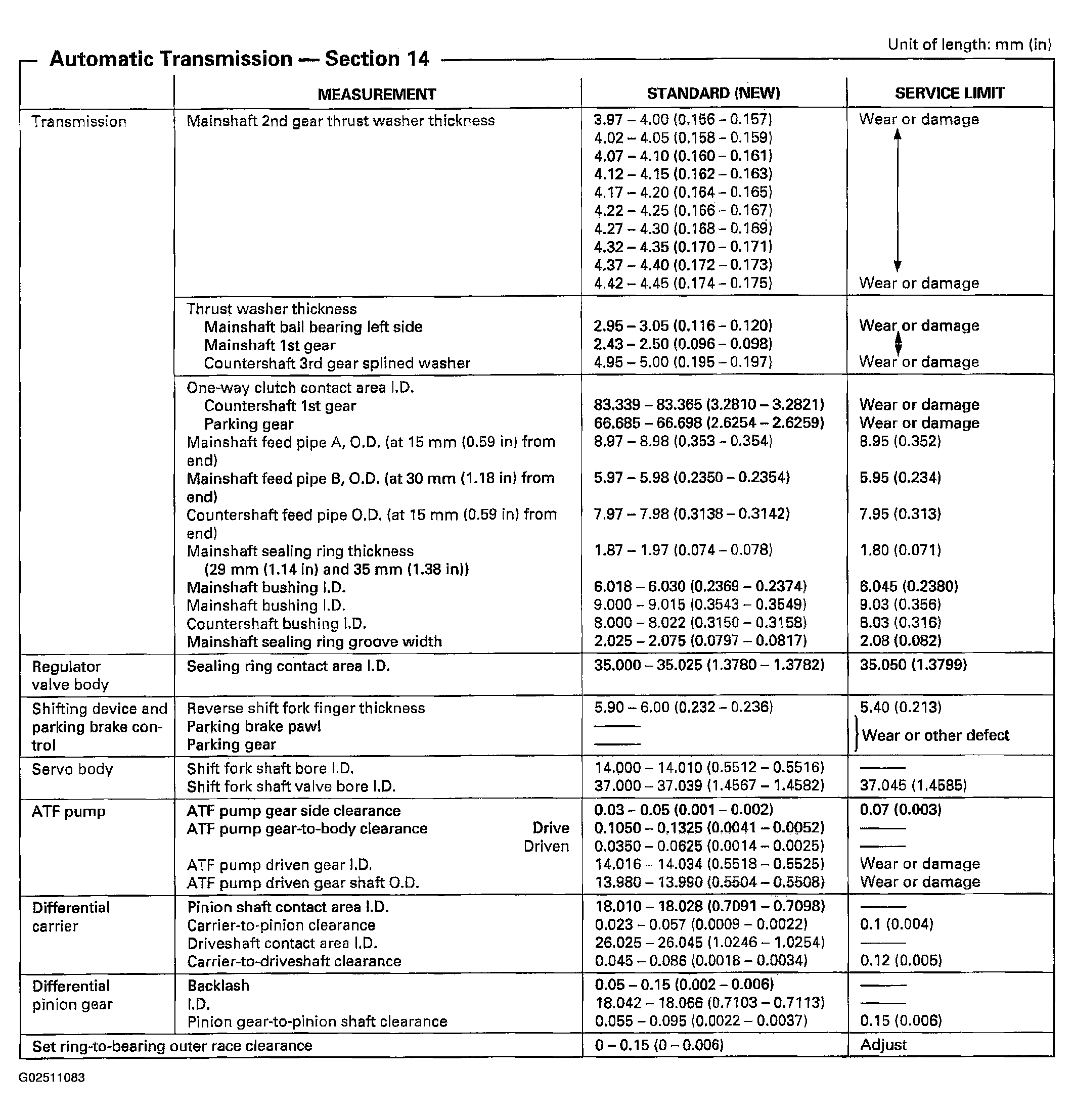

Fig 3: Automatic Transmission Specification Table (3 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

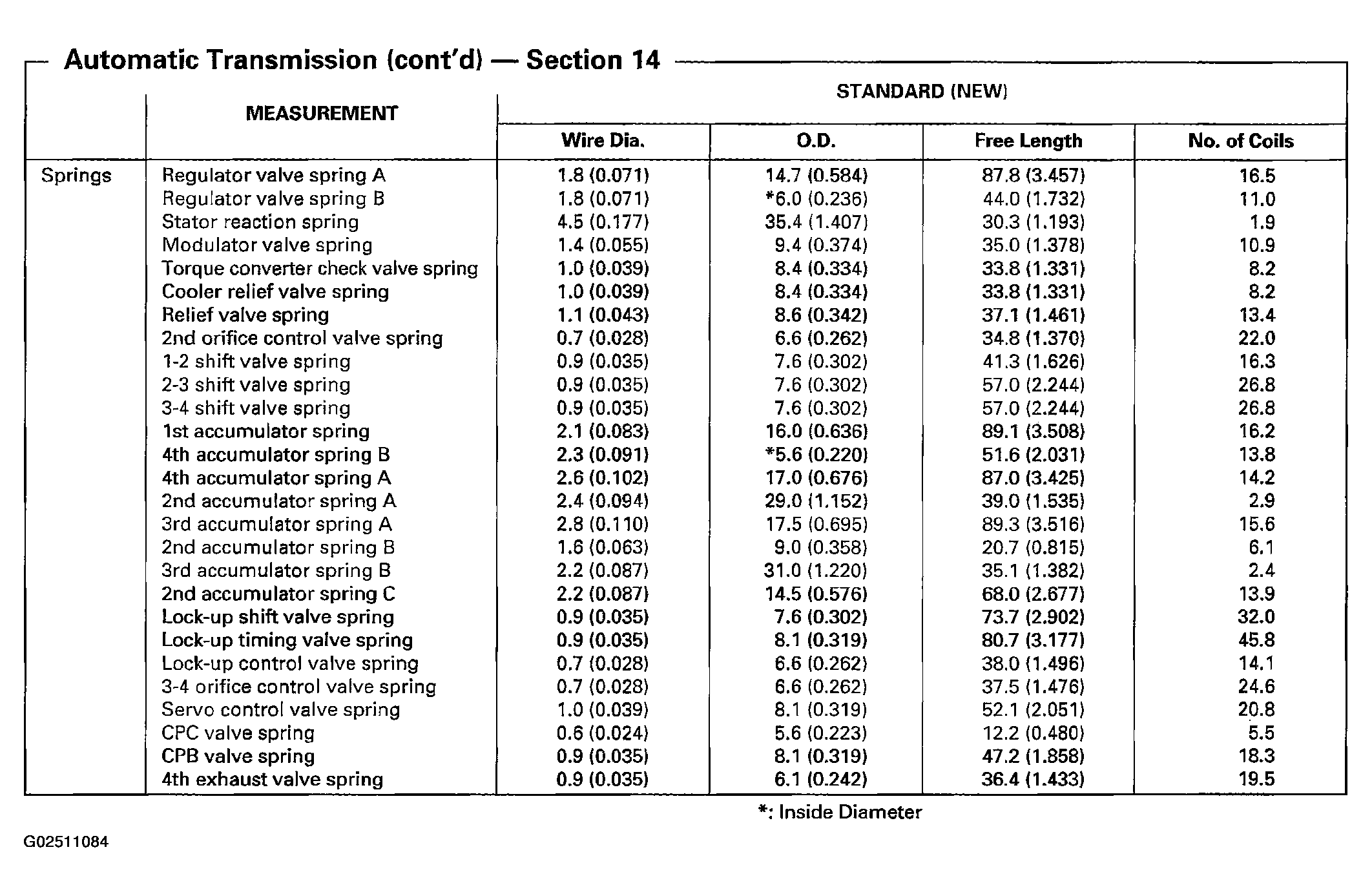

Fig 4: Automatic Transmission Specification Table (4 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
