Door Control Unit Input Test

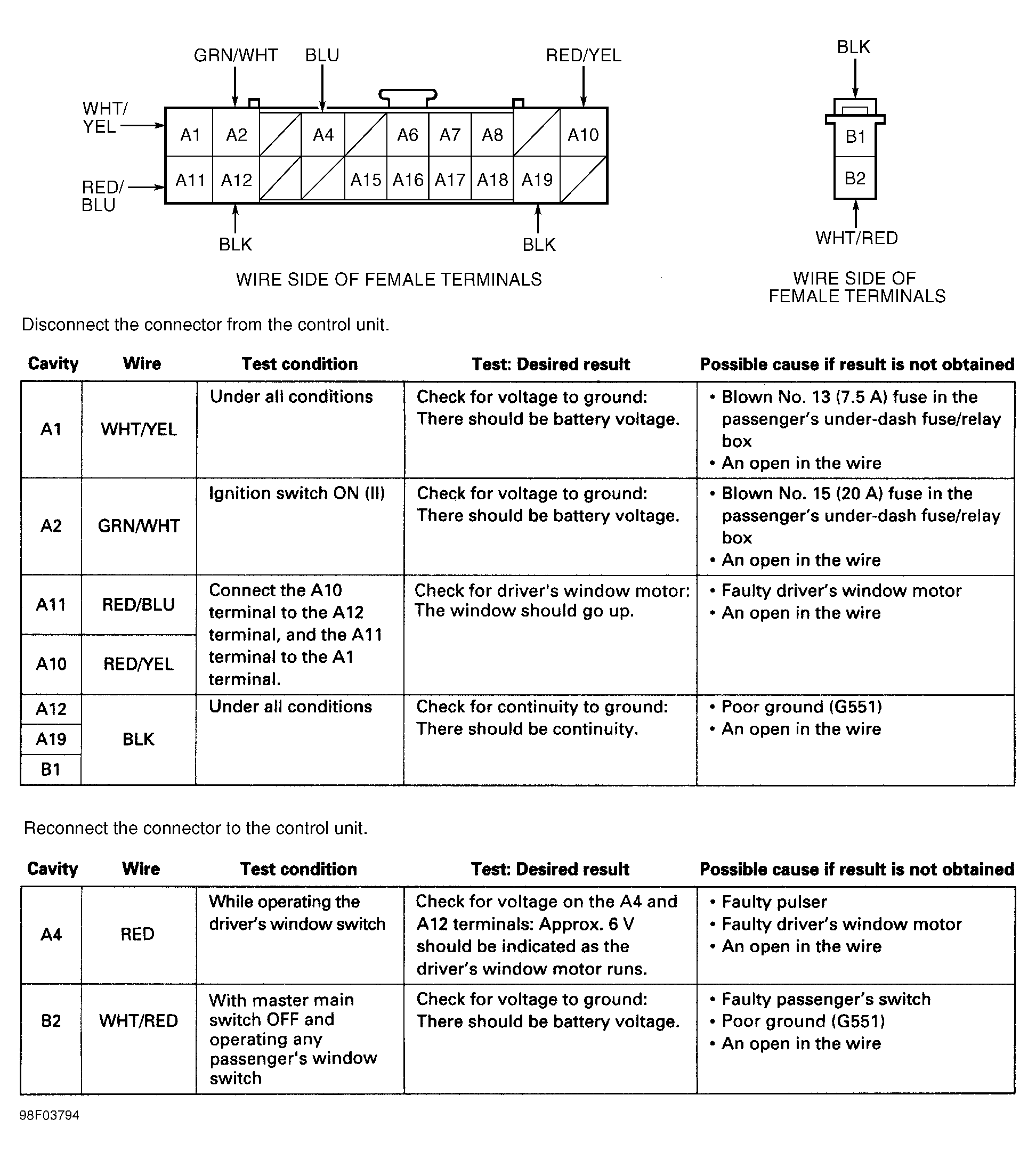

Remove driver's door trim panel. Disconnect 20-pin harness connector. Inspect connector terminals for damage or corrosion. Repair or replace as necessary. Using a DVOM, perform driver's control unit input test. See Fig 1
or Fig 2
. If all input tests are okay, replace door multiplex control unit.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
