Passenger's Control Unit Input Test

Remove right kick panel. Disconnect 14-pin and 20-pin connectors. Inspect connector terminals for damage or corrosion. Repair or replace as necessary. Using a DVOM, perform passenger's control unit input test. See Fig 1 or Fig 2 . If all input tests are okay, replace passenger's multiplex control unit.

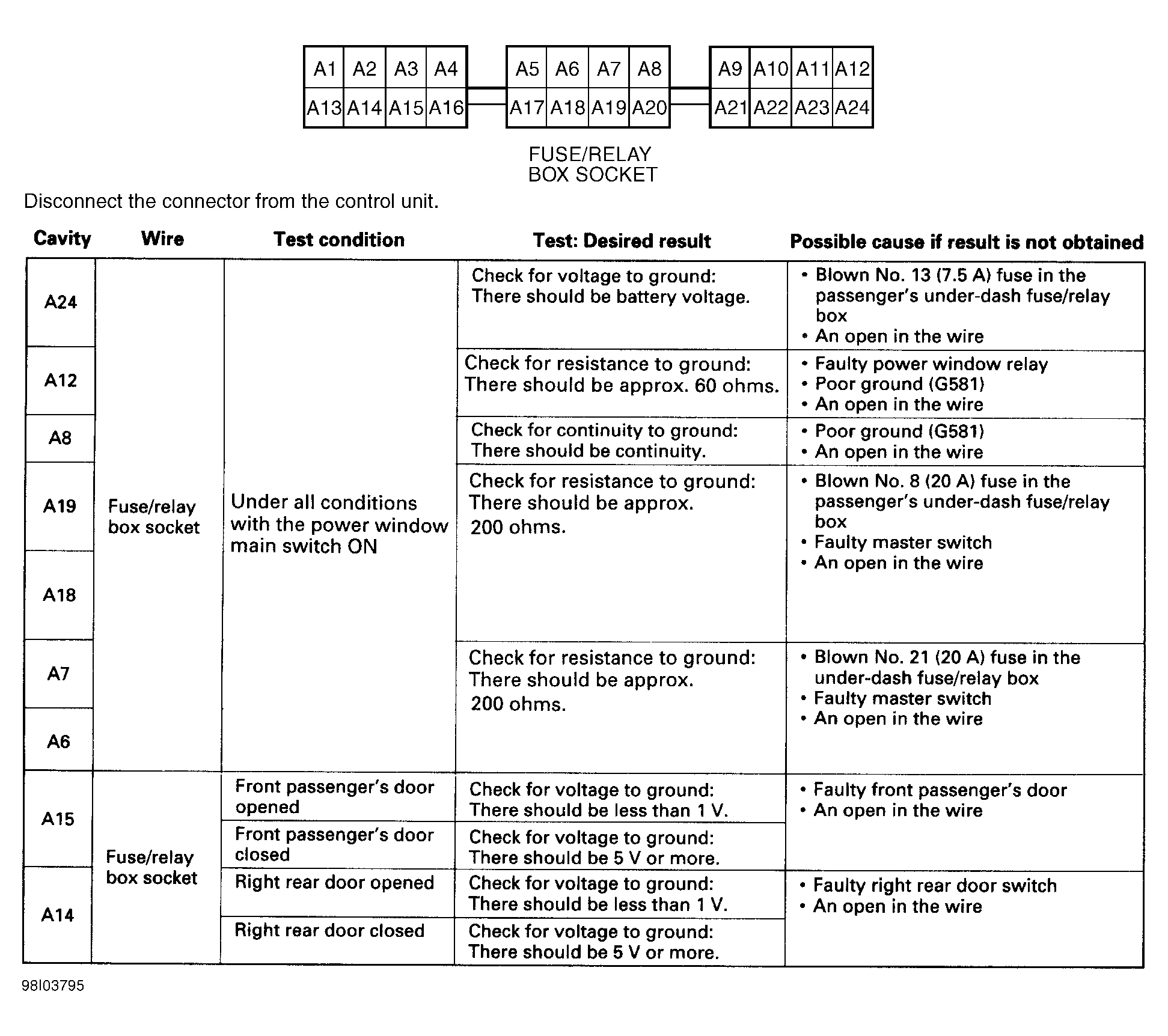

Fig 1: Passenger's Multiplex Control Unit Input Test (Accord)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Passenger's Multiplex Control Unit Input Test (Prelude)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
