Symptom Troubleshooting Index

WARNING: This page is about a different car, the 2002 Honda Accord, 2001 Honda Accord, 2000 Honda Accord, 1999 Honda Accord, and 1998 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The numbers in the table show the troubleshooting sequence.
Before troubleshooting.
- check the No. 9 (7.5A) and No. 6 (15A) fuses in the driver's under-dash fuse/relay box, and the No. 47 (20A) fuse in the under-hood fuse/relay box.
- check that the horn sounds.
- check the tachometer to see if it works properly.

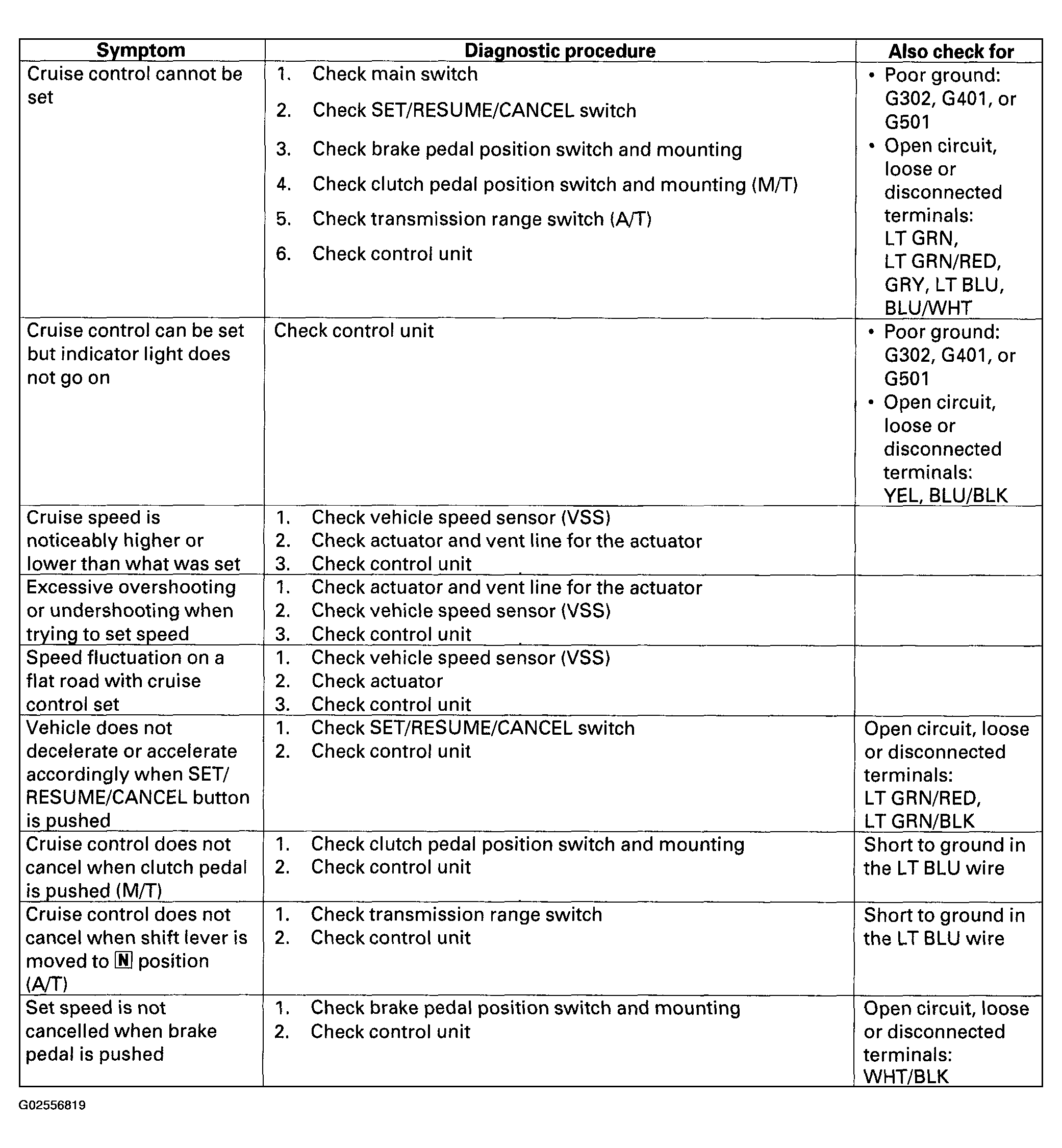

  Fig 1: Symptom Troubleshooting Table (1 Of 2)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

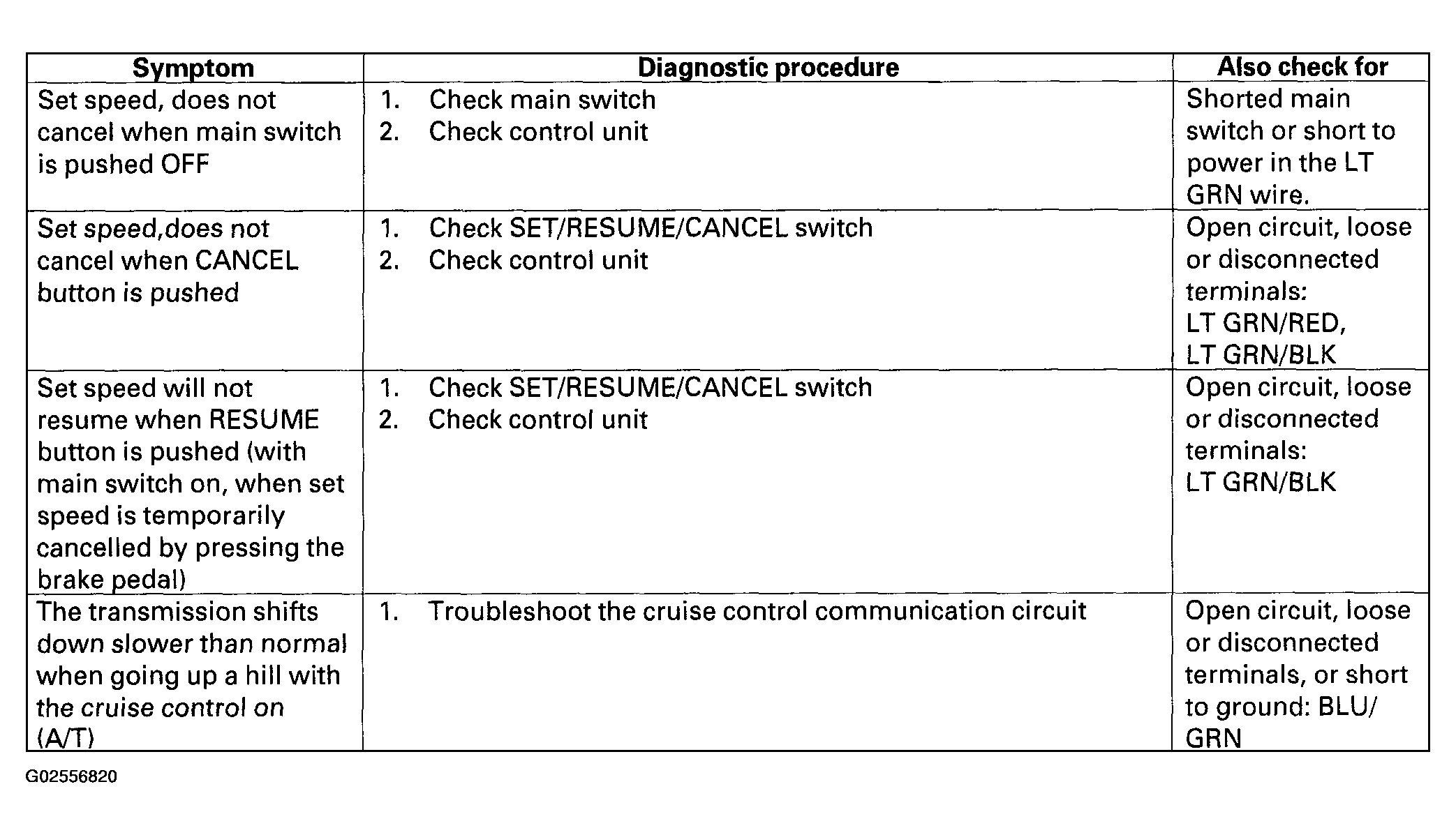

  Fig 2: Symptom Troubleshooting Table (2 Of 2)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
