Removal and Installation

1. Remove the instrument panel together with the climate control unit.

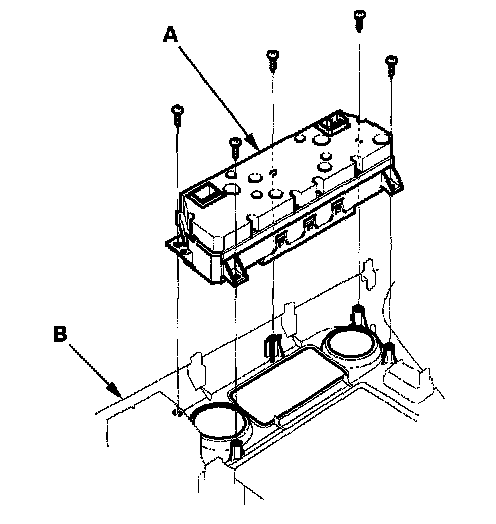

2. Remove the self-tapping screws and the climate control unit (A) from the instrument panel (B).
3. Install in the reverse order of removal. After installation, operate the climate control unit to see whether it works properly.
4. Run the self-diagnosis function to confirm that there are no problems in the system.
