Transmission Position Sensor/Switch: Testing and Inspection

A/T Gear Position Switch Test

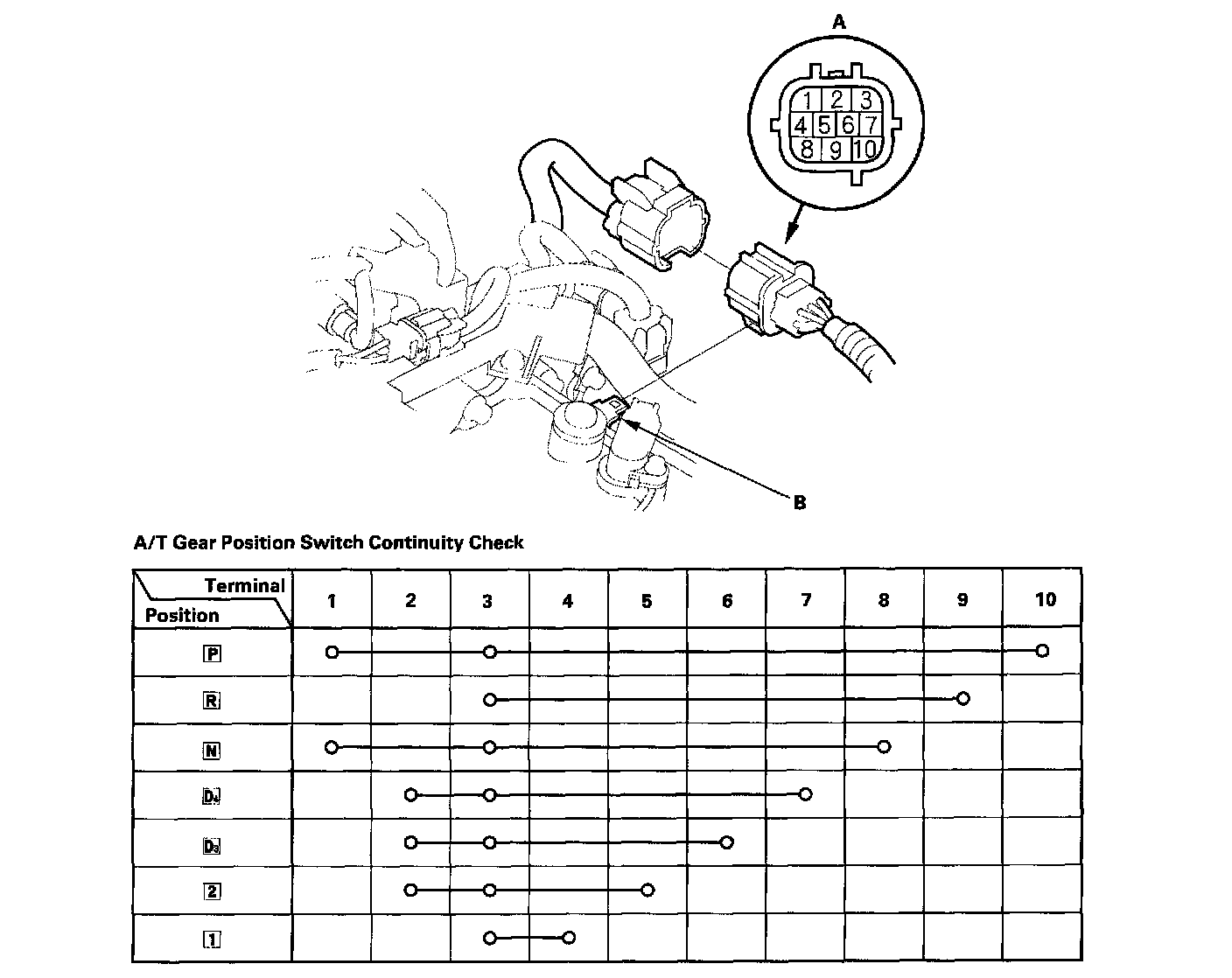

1. Remove the A/T gear position switch connector (A) from the connector bracket (B), then disconnect the connector.
2. Check for continuity between the terminals in each switch position according to the table.

NOTE: Terminal No.1: Neutral position switch
