Repair and Diagnosis: Electrical: Gauges: Clock: Replacement: Notes

  1. Remove the clock (A) from the center panel (B).

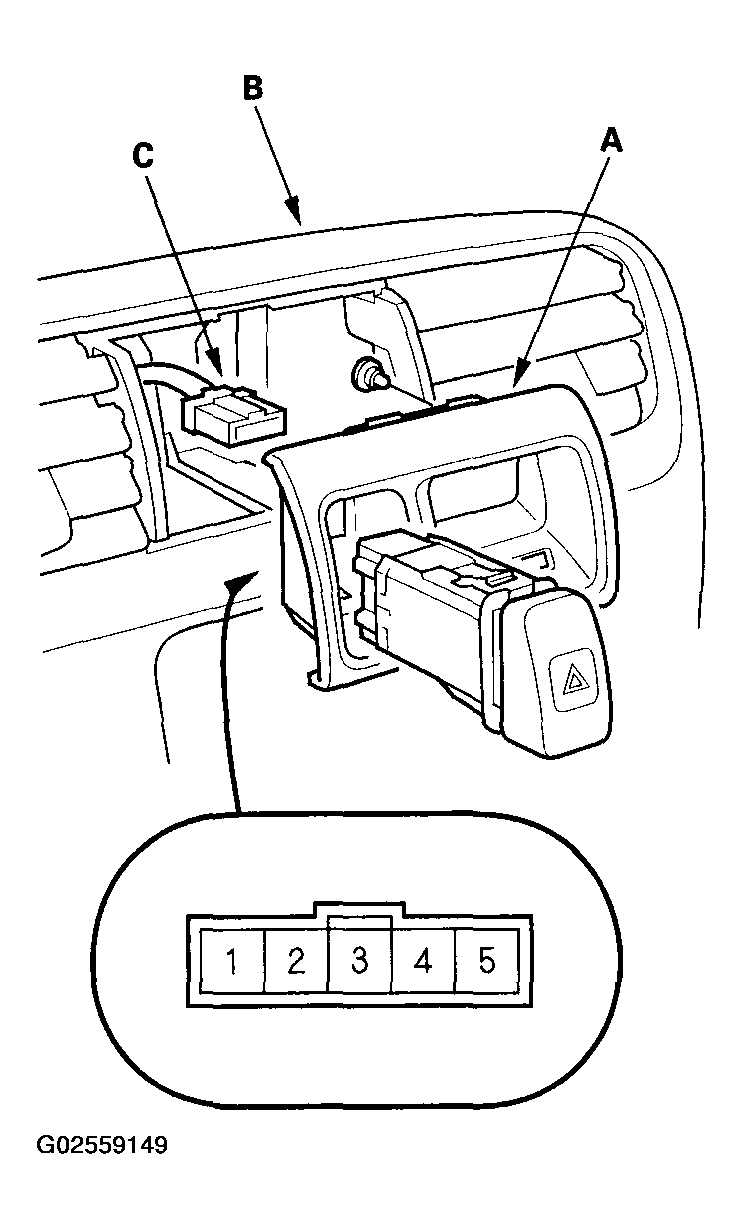

    Fig 1: Removing The Clock From The Center Panel
    G02559149Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Disconnect the 5P connector (C) from the clock.
  3. Remove the clock.
