Fuel Line Inspection

Check the fuel system lines, hoses, and fuel filter for damage, leaks, or deterioration. Replace any damaged parts.

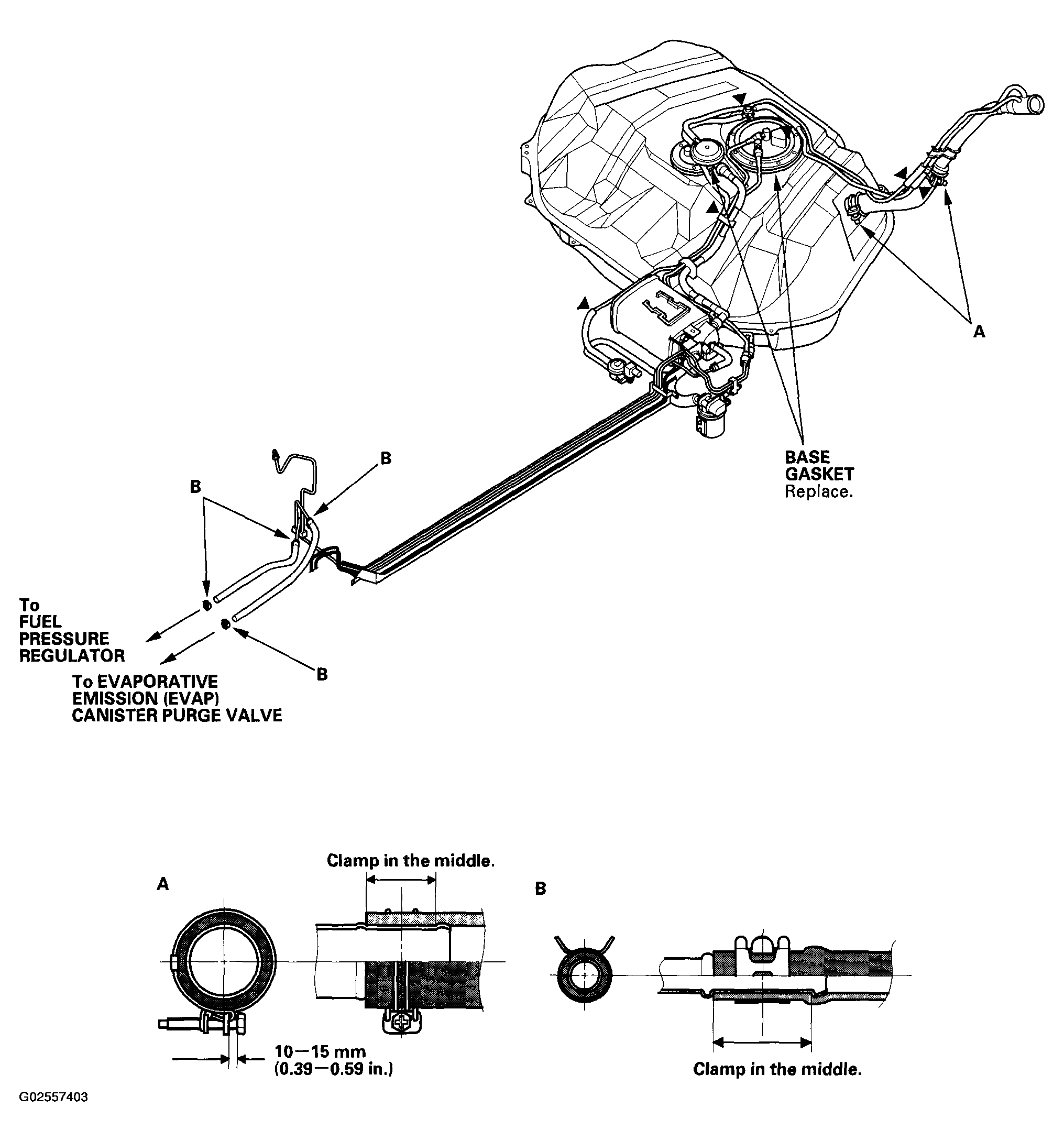

Fig 1: Checking Fuel System Lines, Hoses, & Fuel Filter For Damage, Leaks, Or Deterioration

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Check all hose clamps, and retighten them if necessary. Do not disconnect the hose from the line at these points.

Fig 2: Checking Hose Clamps

Courtesy of AMERICAN HONDA MOTOR CO., INC.
