Cruise Control Servo: Service and Repair

Actuator/Solenoid/Cable Replacement

Removal/installation

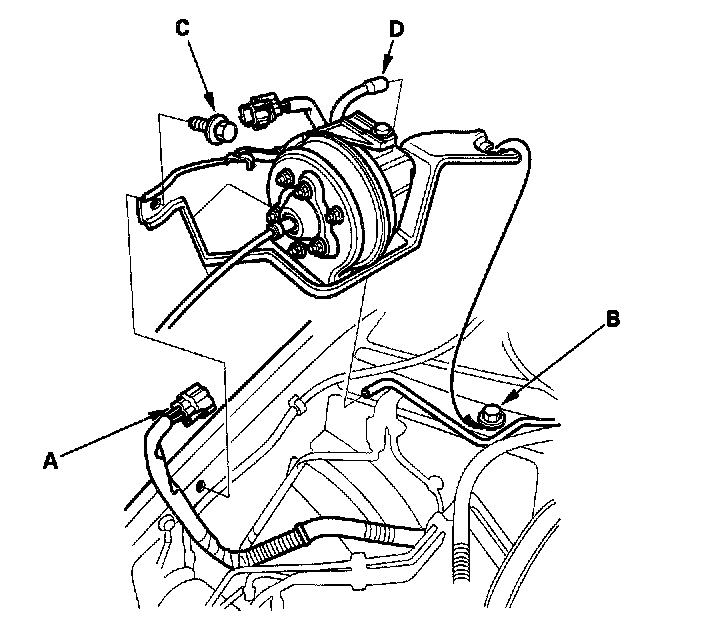

1. Disconnect the 4P connector (A) from the actuator.
2. Loosen the mounting bolt (B), and remove the mounting bolt (C), then remove the actuator with the bracket.
3. Disconnect the vacuum hose (D).




4. Remove the 3 nuts (A).
5. Disconnect the actuator cable (B) from the actuator rod (C) by releasing the clip (D) from the rod with a screwdriver.




6. Loosen the locknut (A), then disconnect the actuator cable (B) from the throttle linkage (C).
7. Install in the reverse order of removal, and adjust the free play at the throttle linkage after connecting the actuator cable.

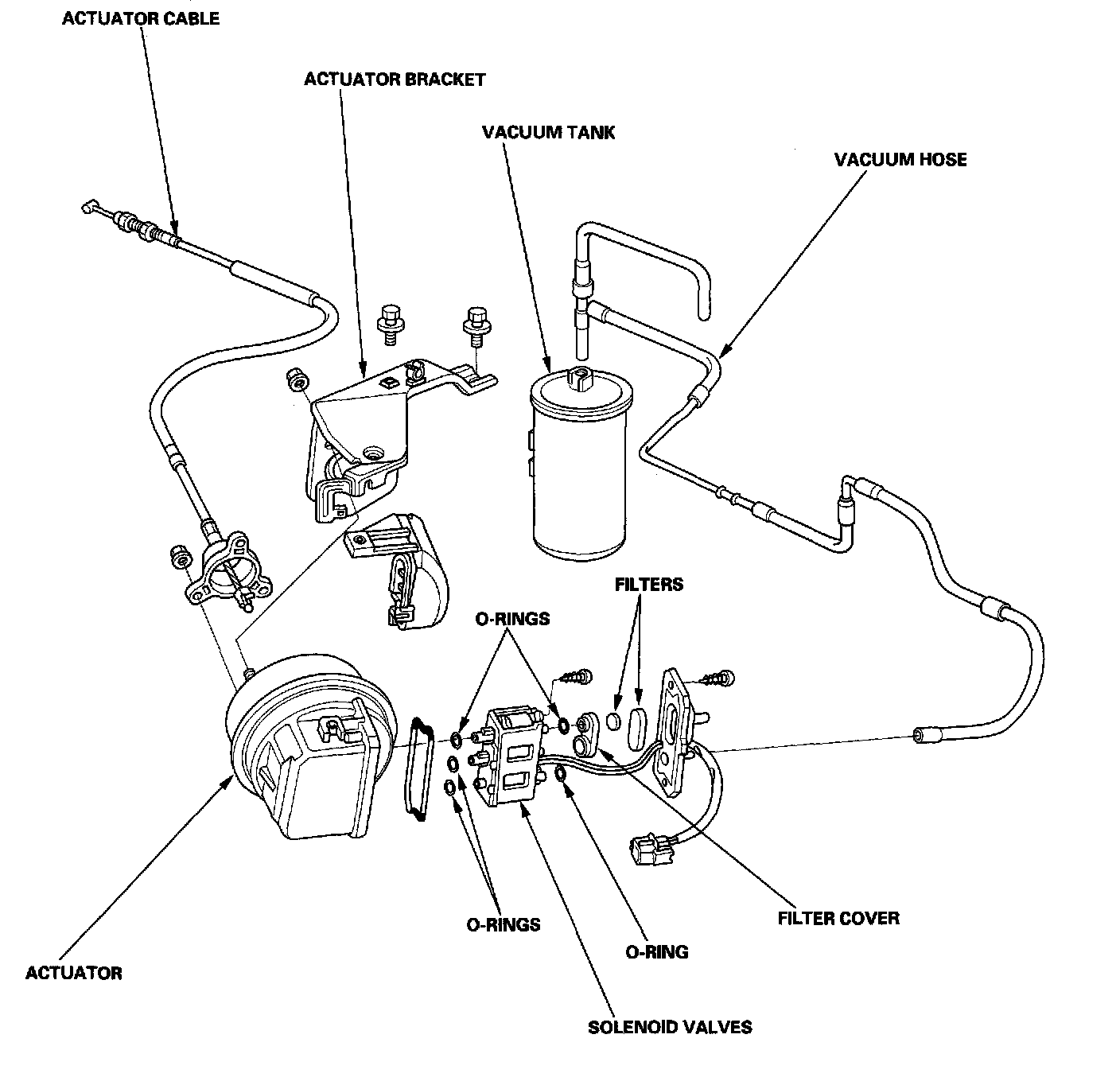

Disassembly/Reassembly
