Component Locations

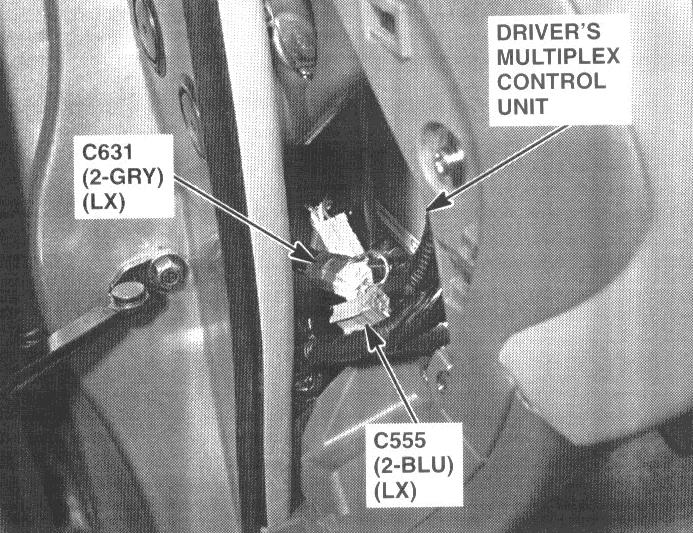

86. Behind Left Fuse Box Cover:

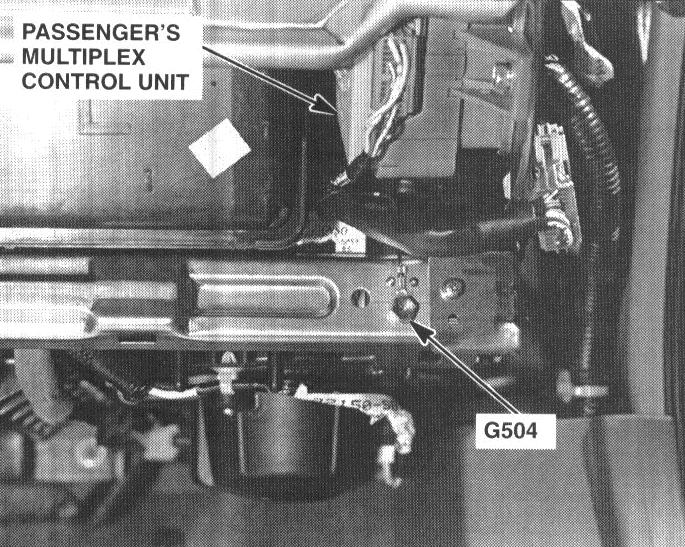

118. Behind Passenger's Dashboard Lower Cover:

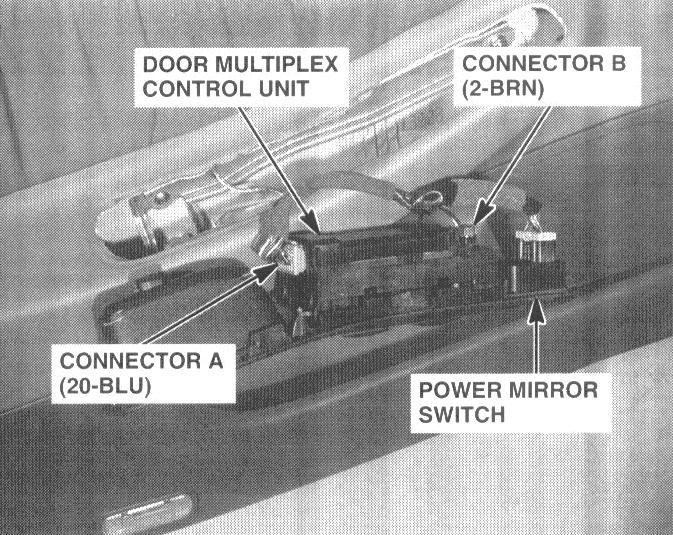

137. Driver's Door (Sedan):

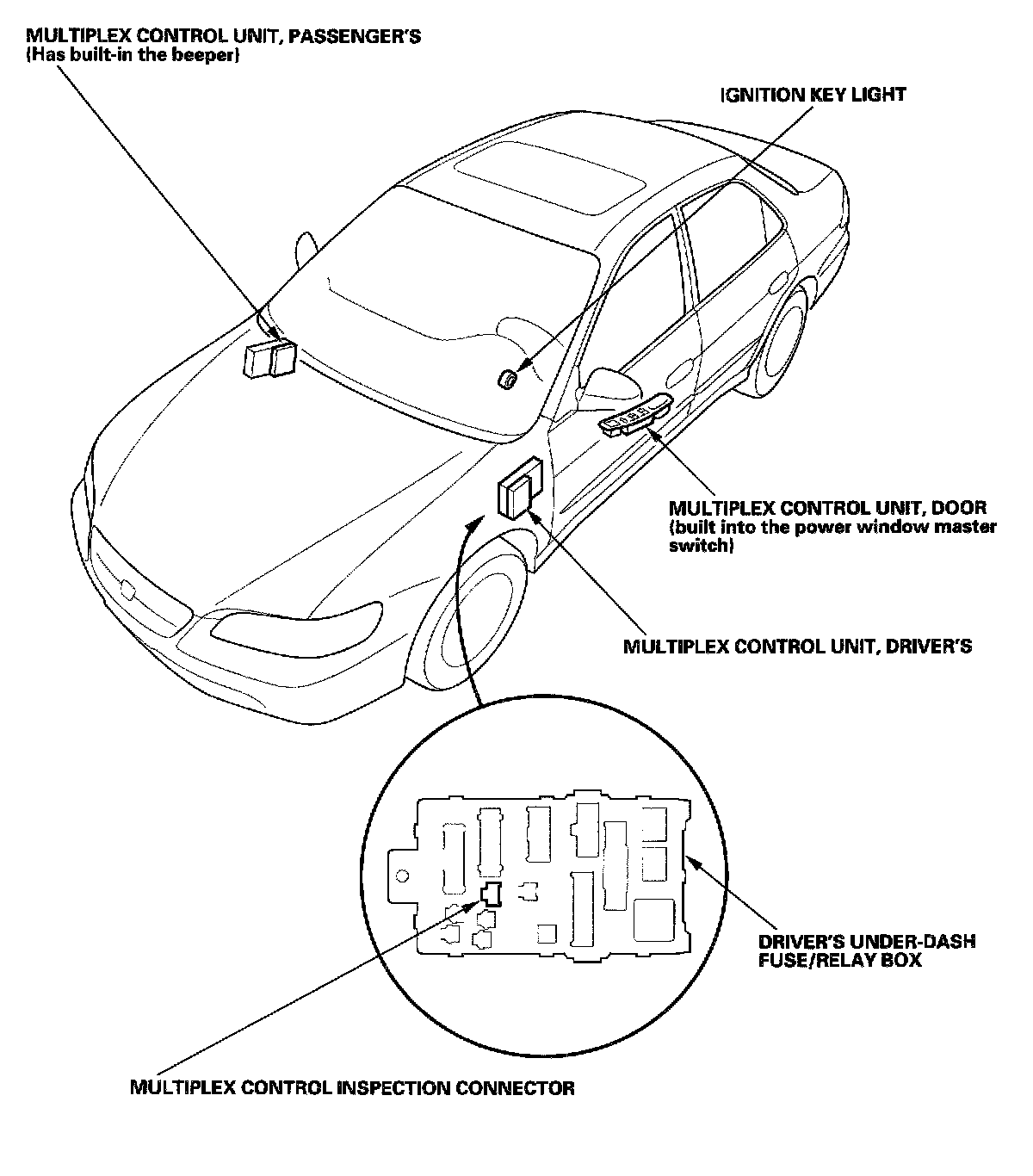

Multiplex Control System Component Location Index:
