Passenger's Window Switch

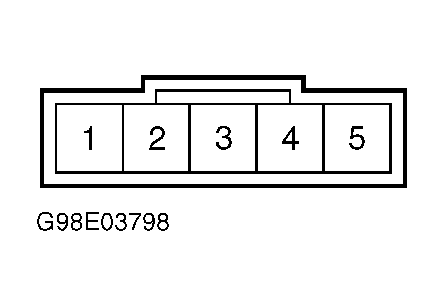

Remove passenger's power window switch. See PASSENGER'S POWER WINDOW SWITCH under REMOVAL & INSTALLATION. Using an ohmmeter, check continuity between switch terminals with switch in indicated positions. If continuity is not as specified, replace switch. See Fig 1 . See PASSENGER'S POWER WINDOW SWITCH TEST table.
PASSENGER'S POWER WINDOW SWITCH TEST
| Switch Position | Continuity Between Terminals No. | |
|---|---|---|
| Civic | ||
| Off | 2 & 3; 4 & 5 | |
| Up | 1 & 4; 2 & 3 | |
| Down | 1 & 3; 4 & 5 | |
| CR-V | ||
| Off | 2 & 3; 4 & 5 | |
| Up | 1 & 4 | |
| Down | 1 & 3 | |
