Without Keyless Entry System

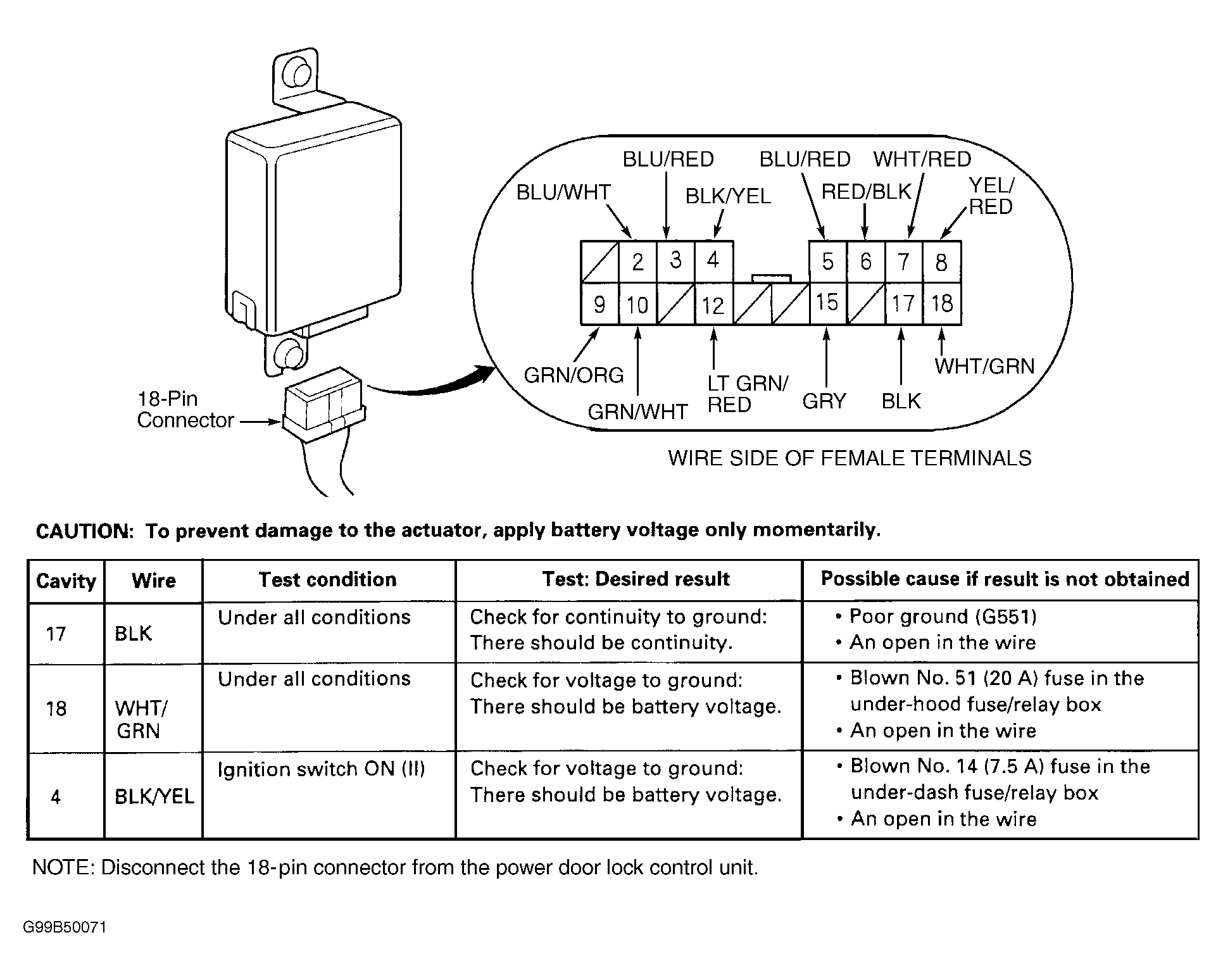

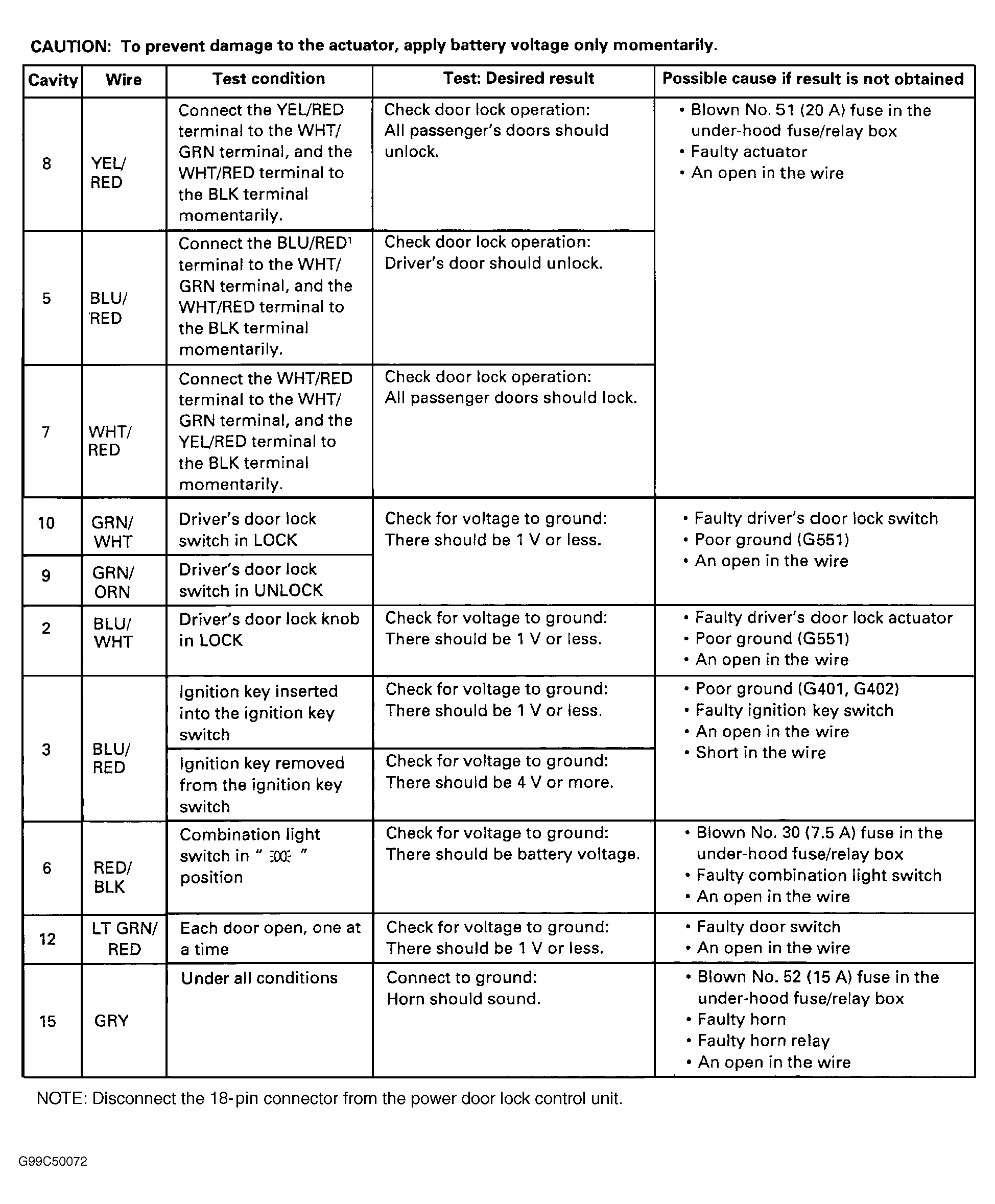

Remove left door panel. Using a DVOM, perform power door lock unit input tests. See Figure and Figure . If all input test results are okay, inspect connector and terminals for damage and proper fit. If connector is okay and power door lock still malfunctions, replace power door lock control unit.
