Bulb Check System (Brake System Light)

NOTE: For connector terminal identification, see Figure . For input test see Fig 1 .

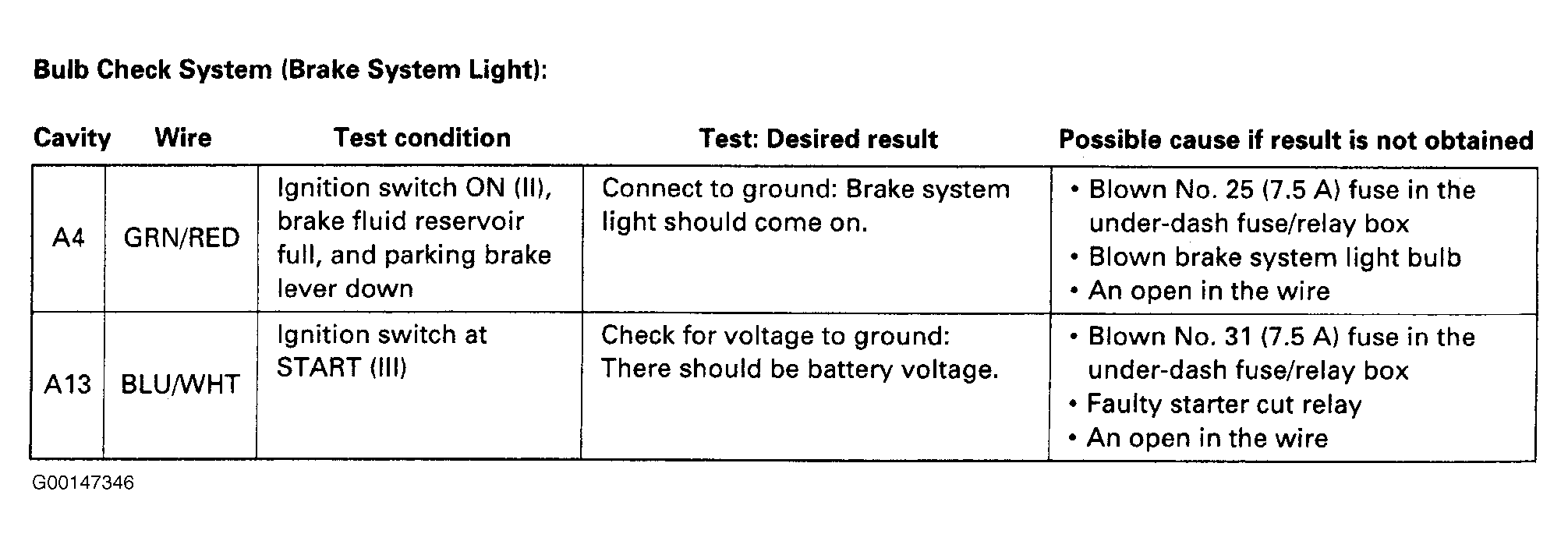

Fig 1: Identifying Bulb Check System (Brake System Light) Input Test
G00147346Courtesy of AMERICAN HONDA MOTOR CO., INC.
