Component Locations

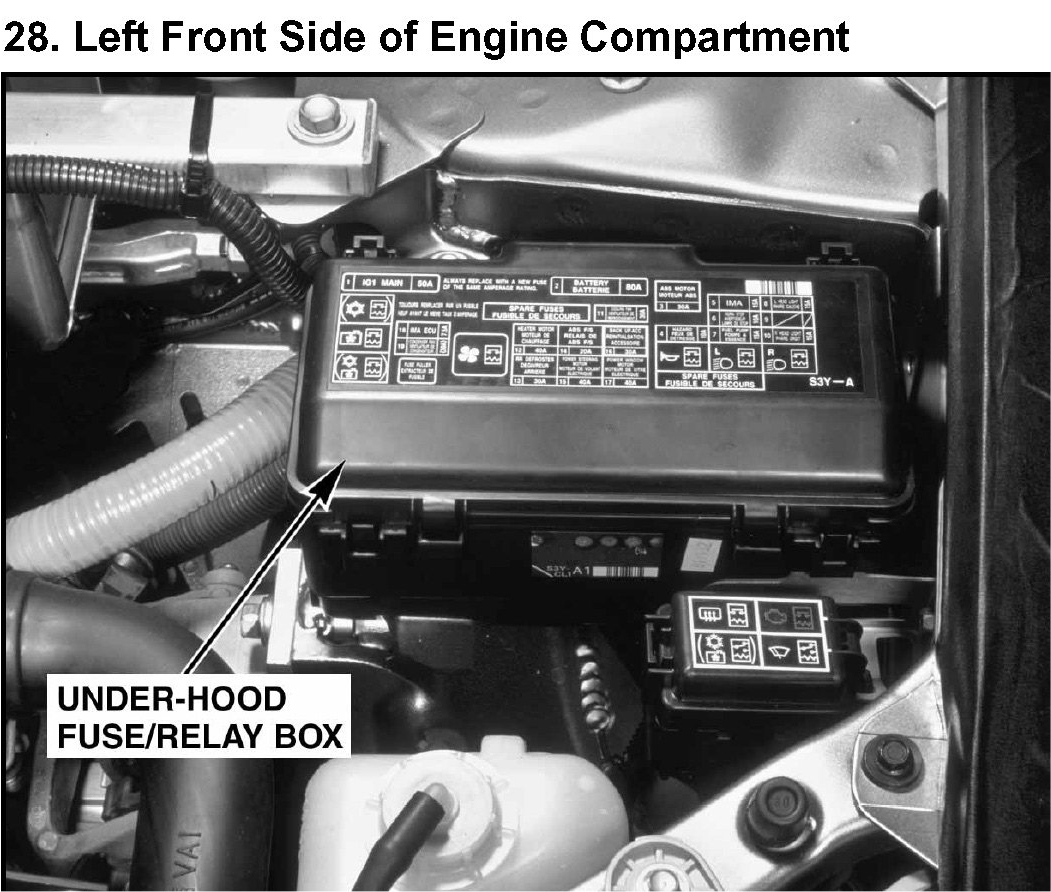

28. Left Front Side of Engine Compartment:

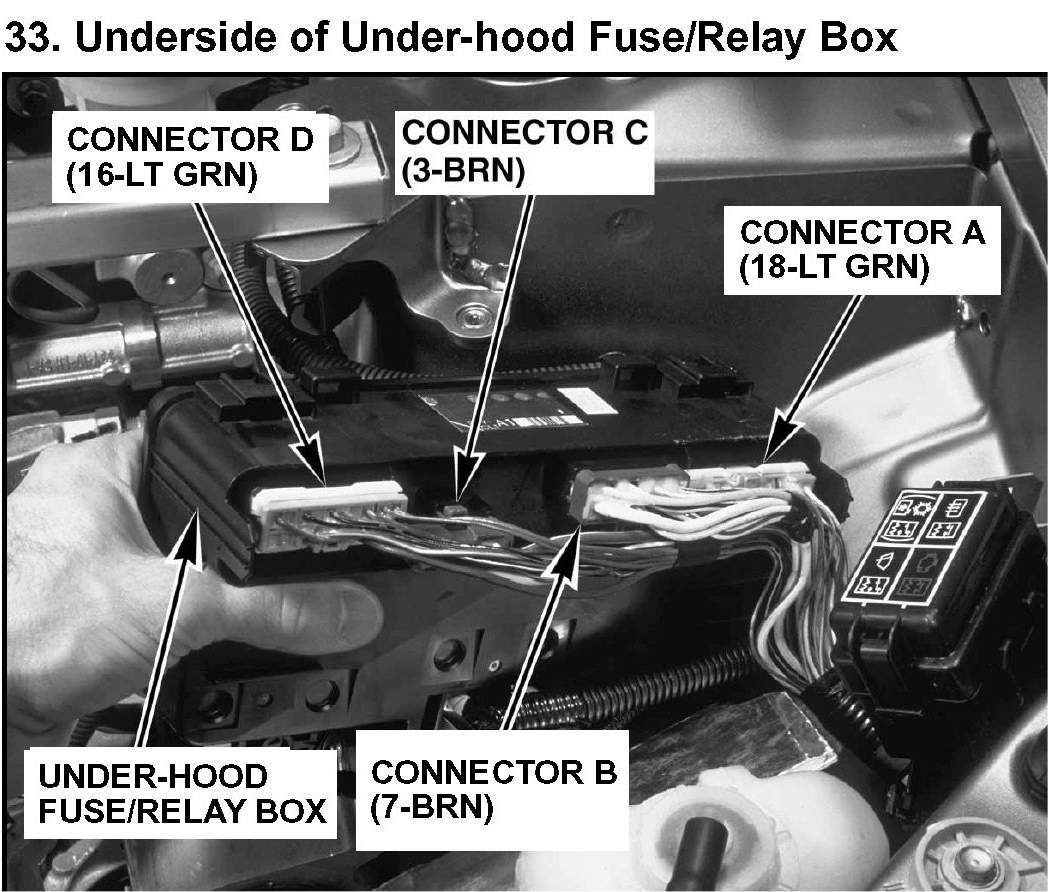

33. Underside of Under-hood Fuse/Relay Box:

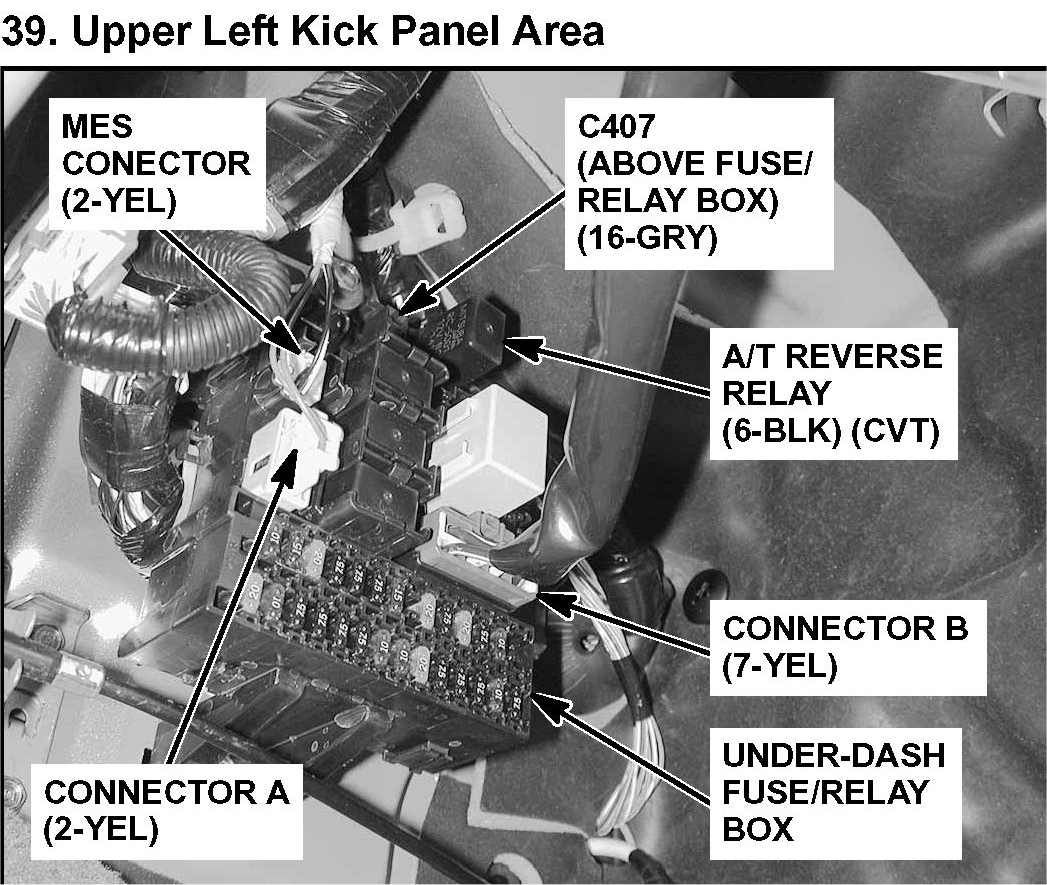

39. Upper Left Kick Panel Area:
