Electric Load Sensor: Locations

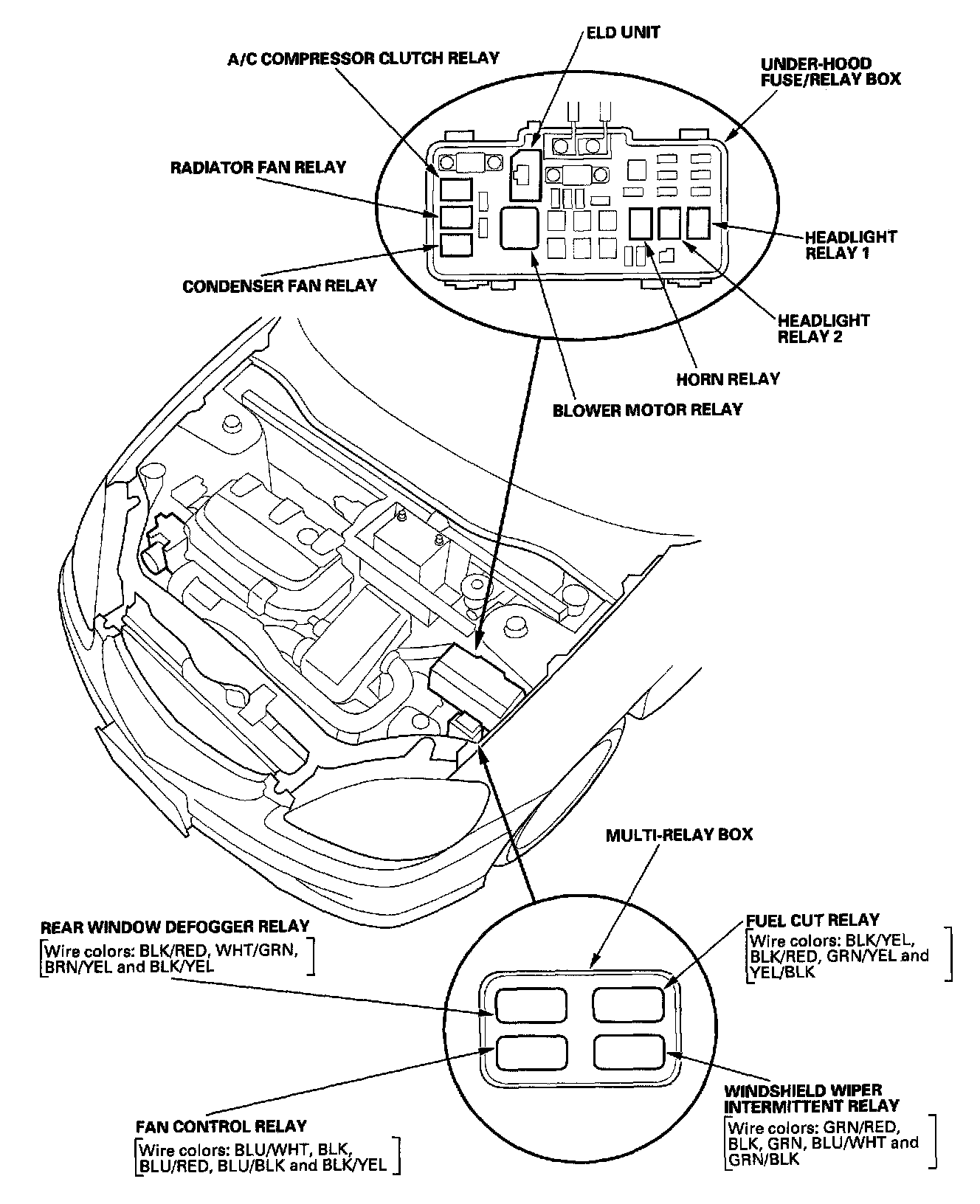

Relay And Control Unit Location - Engine Compartment:

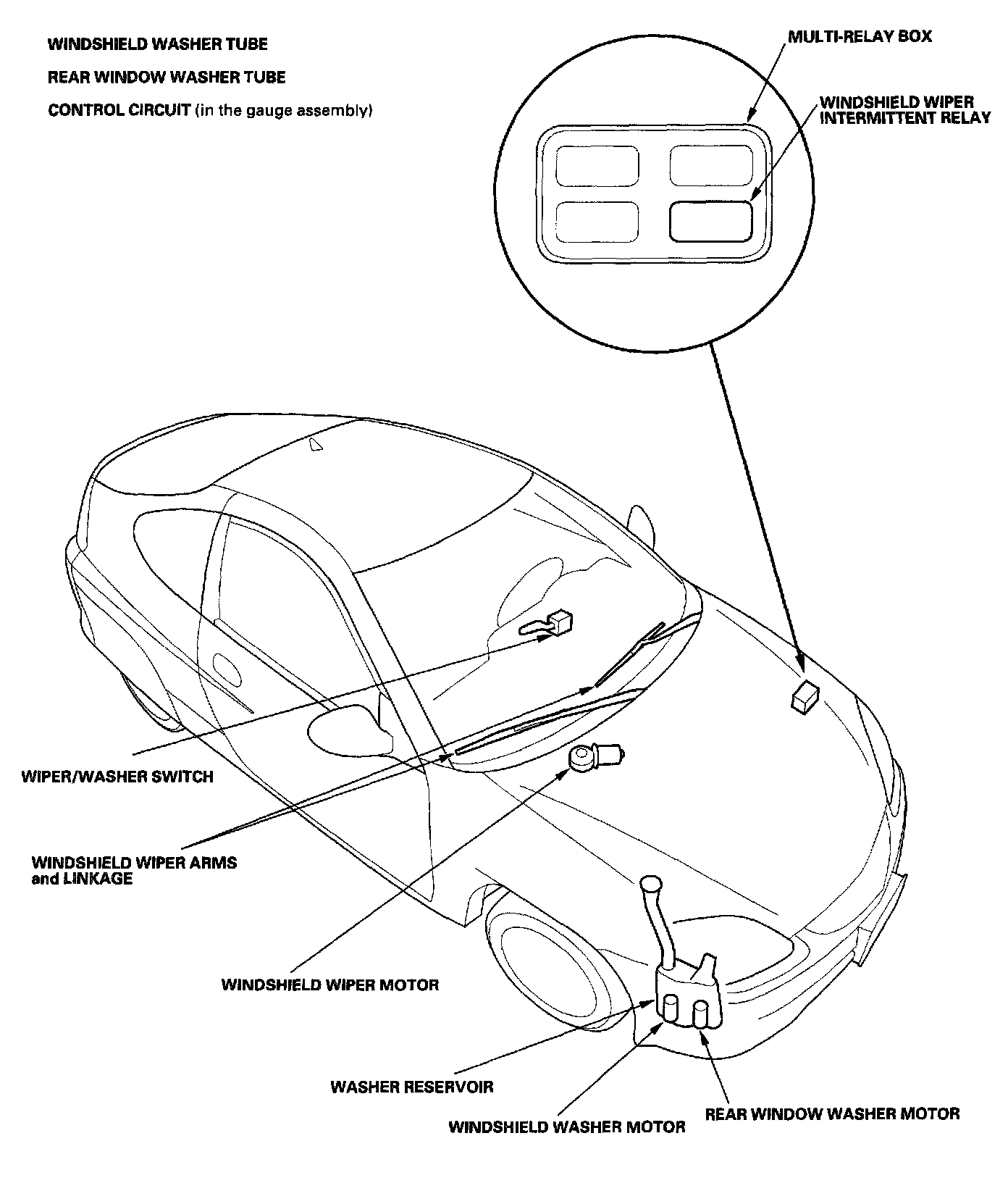

Wipers/Washers - Component Location Index:

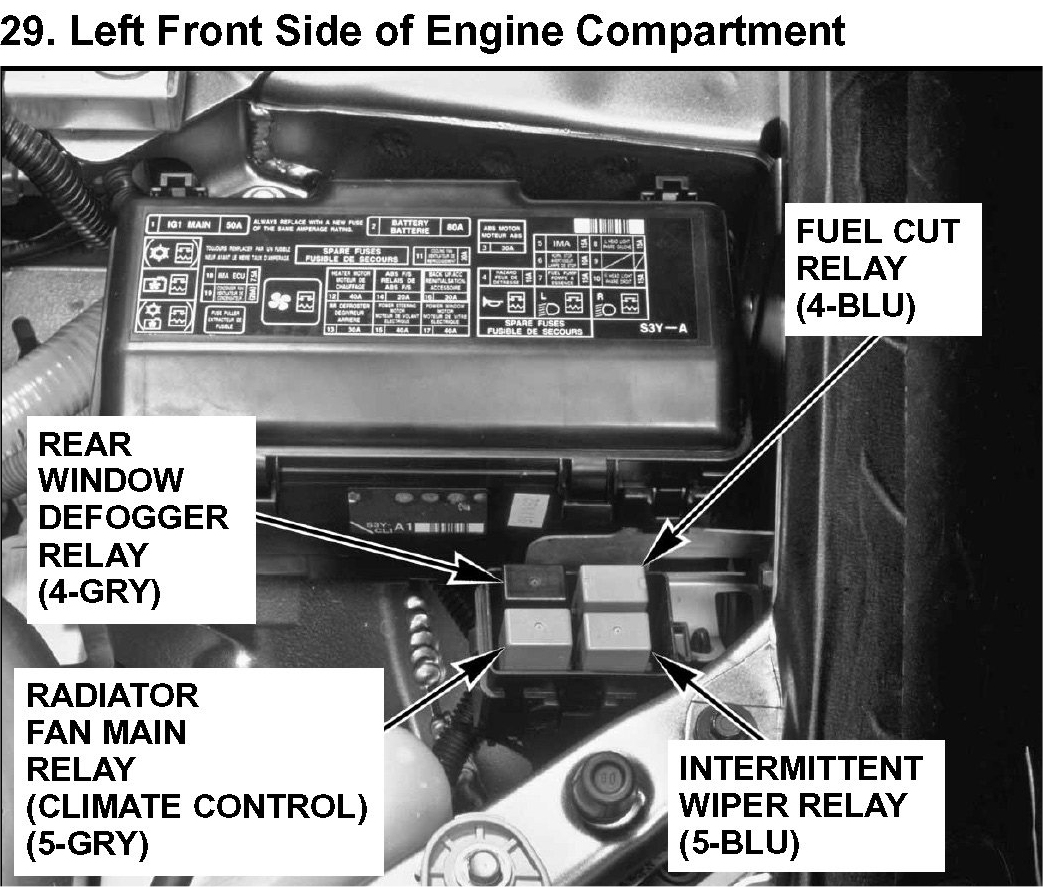

29. Left Front Side of Engine Compartment:
