Engine Temperature Sensor: Locations

Gauges - Component Location Index:

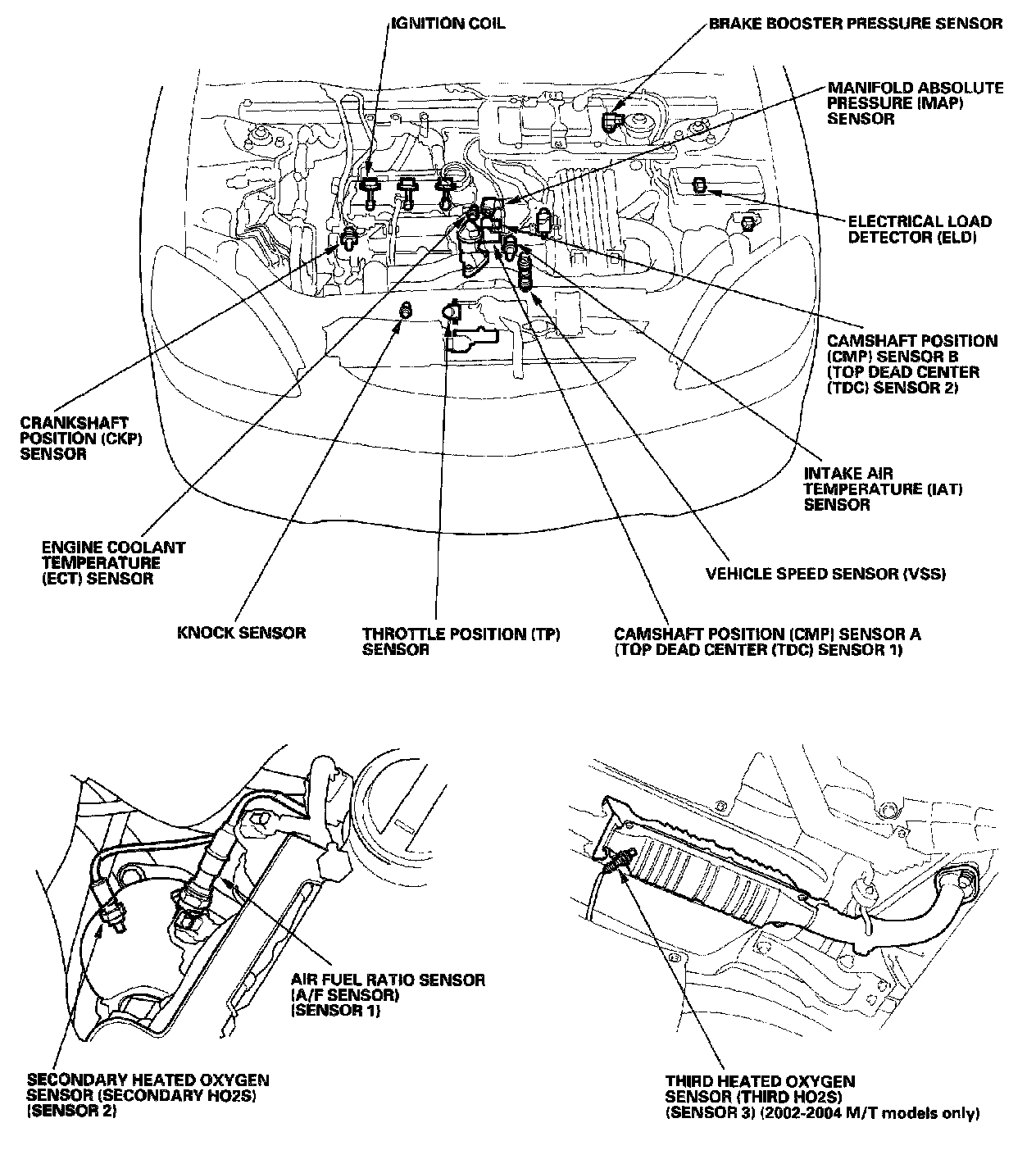

PGM-FI System - Component Location Index:

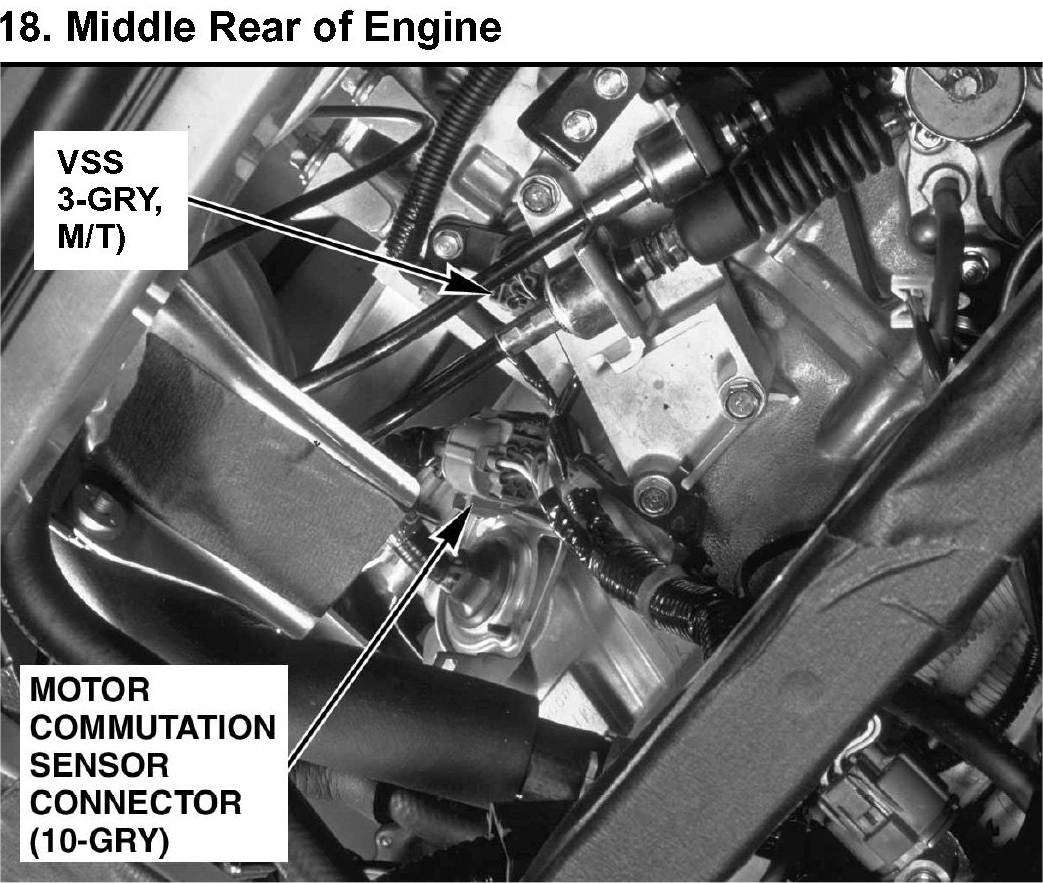

18. Middle Rear of Engine:

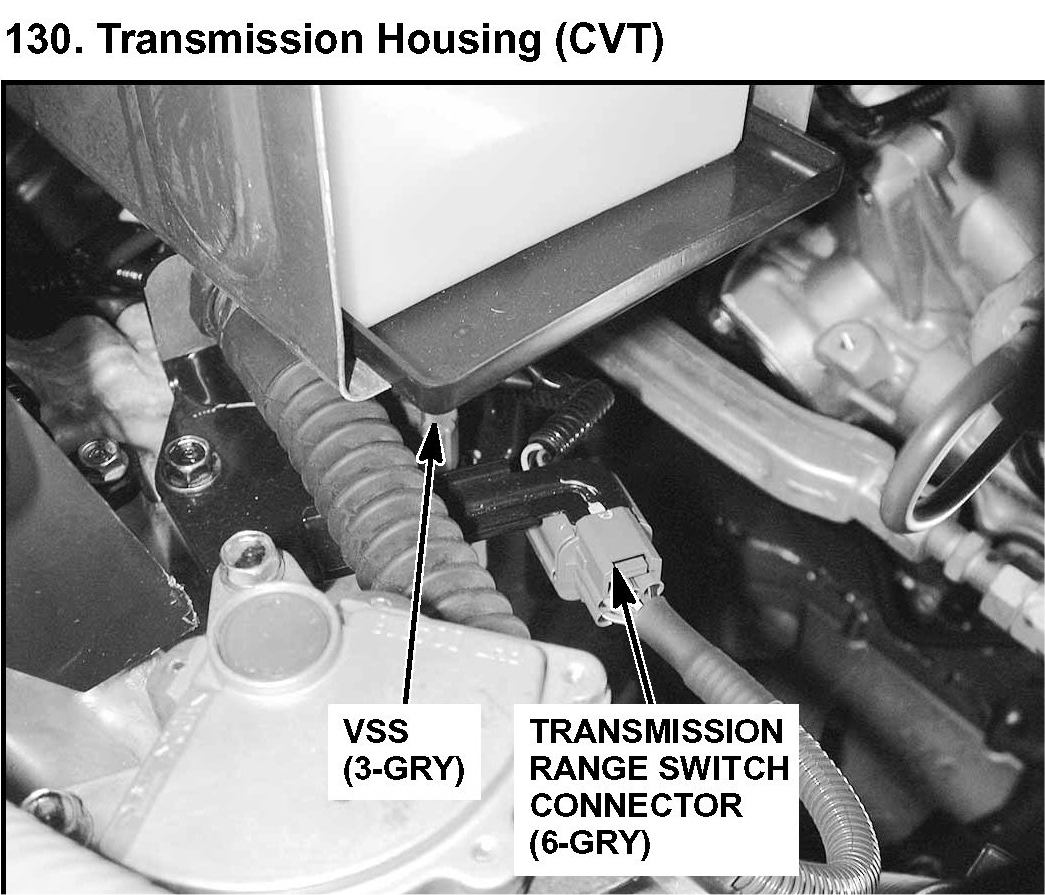

130. Transmission Housing (CVT):
