Computers and Control Systems: Locations

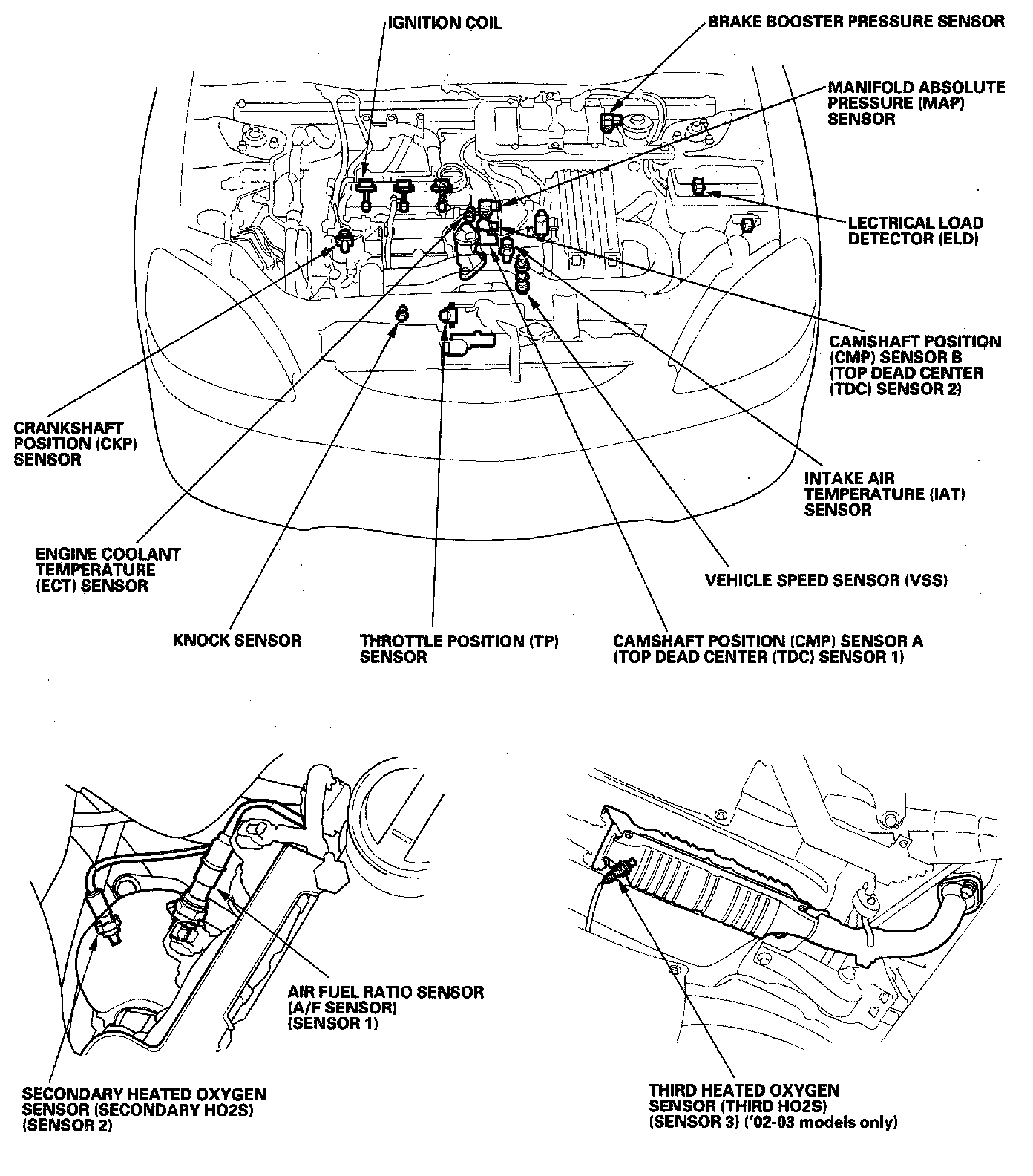

PGM-FI System - Component Location Index Part 1:

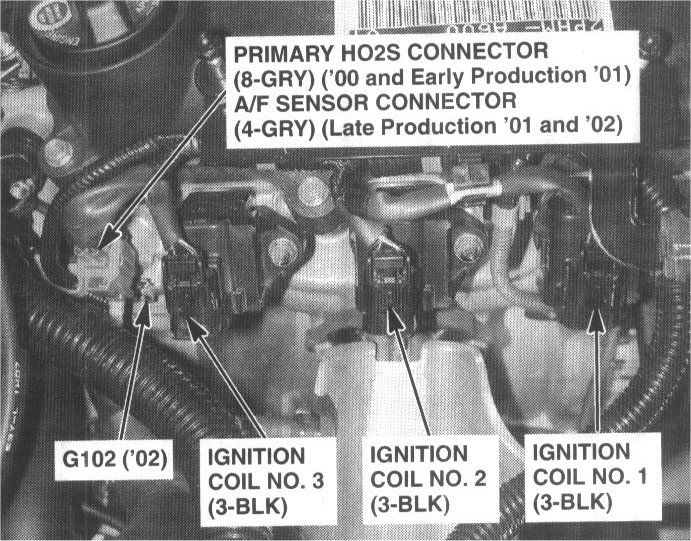

16. Rear of Engine:
