Vehicle Speed Sensor: Service and Repair

VSS Replacement

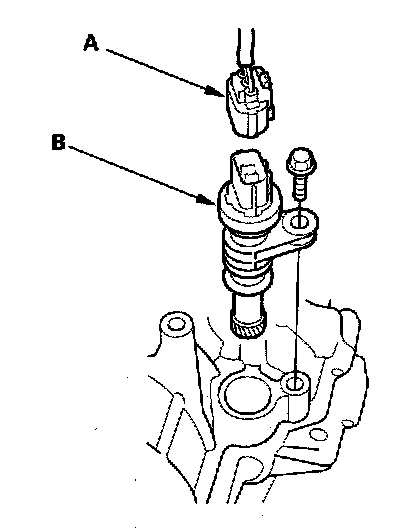

1. Disconnect the 3P connector (A) from the VSS (vehicle speed sensor) (B).
2. Remove the mounting bolt, then remove the VSS.
3. Install in the reverse order of removal.
