Immobilizer Receiver Unit Replacement

  1. Remove the steering column covers (see STEERING COLUMN REMOVAL AND INSTALLATION ).
  2. Disconnect the 5P connector (A) from the immobilizer receiver unit (B).

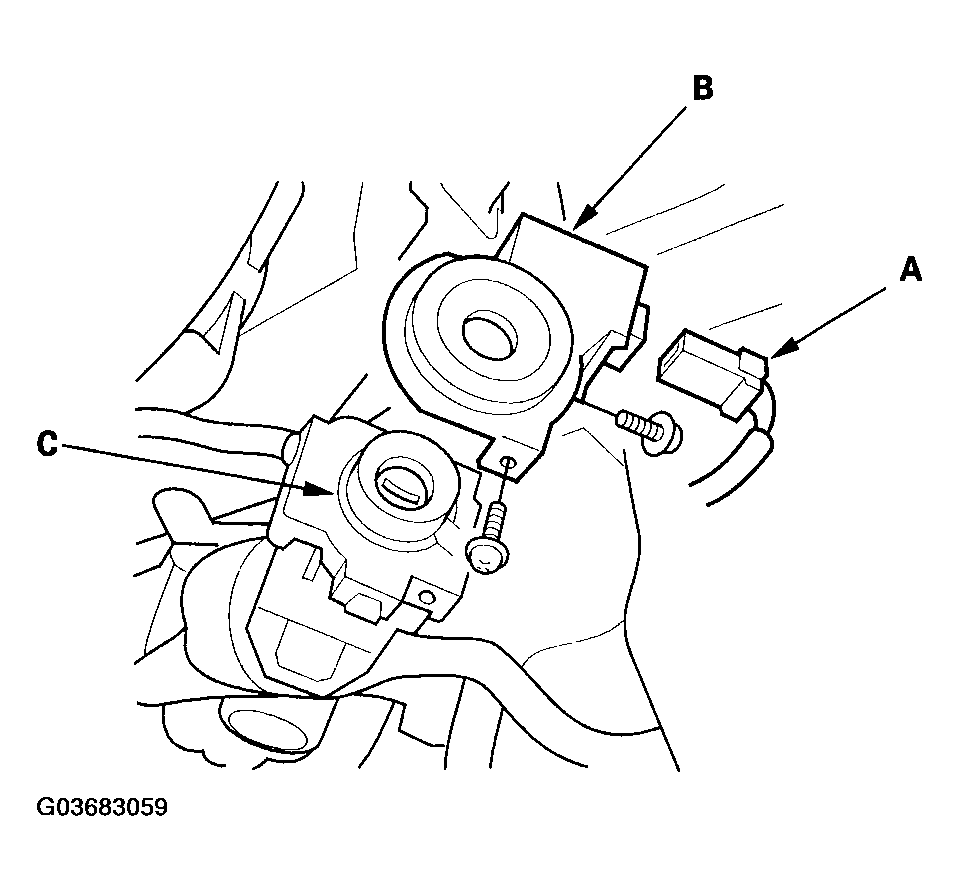

    Fig 1: Disconnecting 5P Connector From Immobilizer Receiver Unit
    G03683059Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the screws and the immobilizer receiver unit from the ignition key cylinder (C).
  4. Install in the reverse order of removal.
  5. After replacement, check the immobilizer system.
