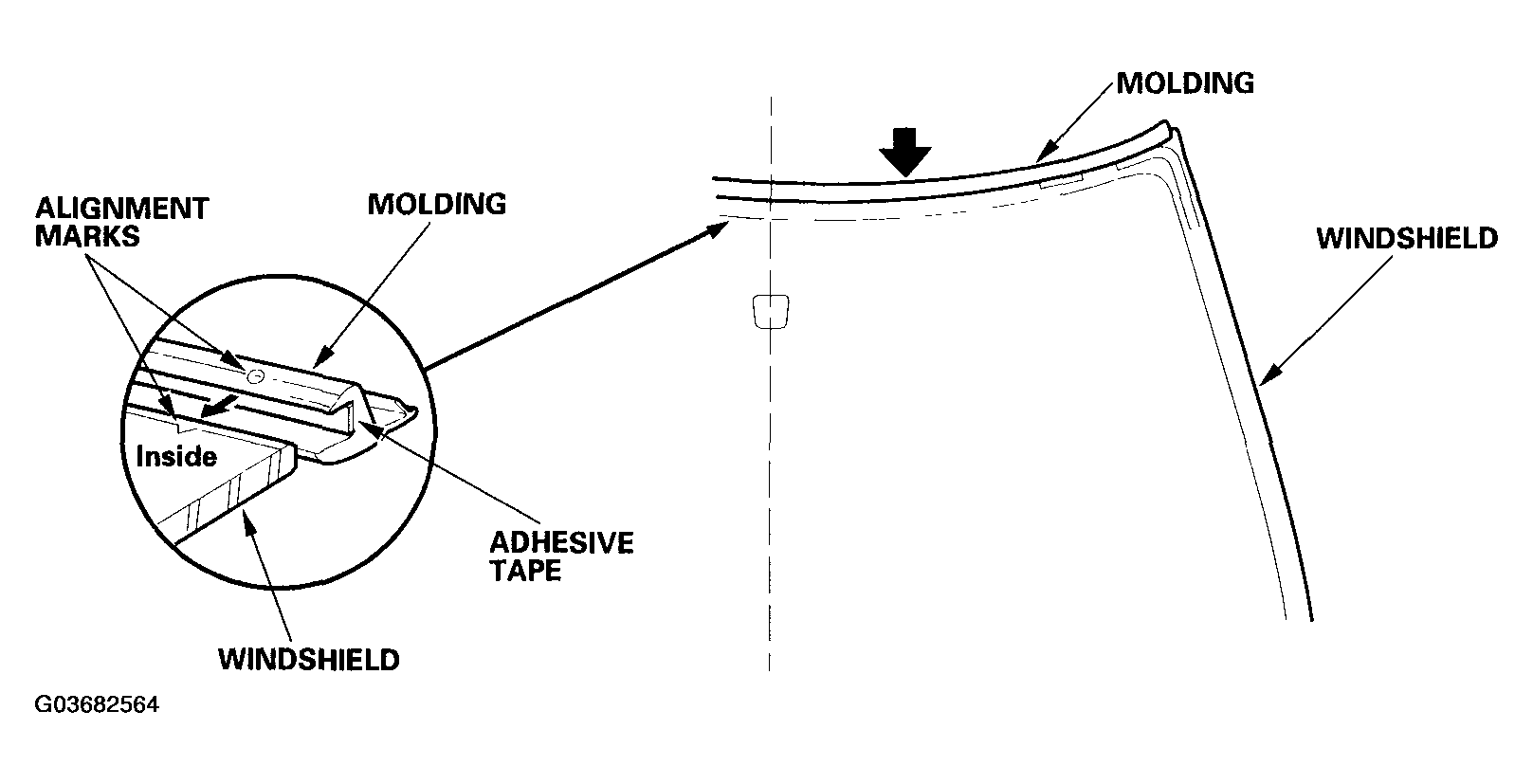

Molding Installation
- Be sure the alignment marks on the molding lines up with the alignment marks on the windshield.
- Attach the molding with adhesive tape.
Adhesive tape: Thickness 0.8 mm (0.03 in.), Width 4 mm (0.16 in.)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
