Horn Switch Test
- Remove the steering column covers (see STEERING LOCK REPLACEMENT
).

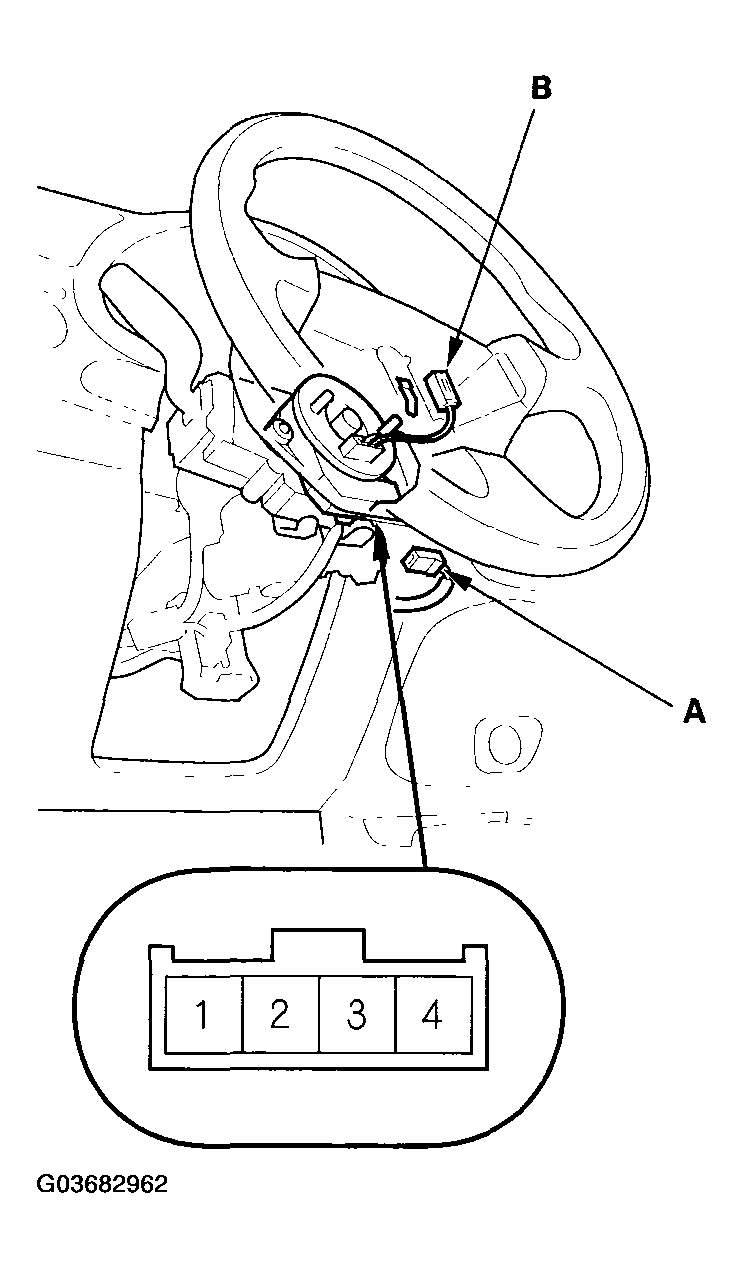

- Disconnect the dashboard wire harness B 4P connector (A) from the cable reel (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Using a jumper wire, connect the dashboard wire harness B 4P connector No. 2 terminal to body ground.
- If the horn sounds, go to step 4.
- If the horn does not sound, check these items:
- Horn relay
- No. 6 (10 A) fuse in the under-hood fuse/relay box
- Horn (see
CIRCUIT DIAGRAM
)
- An open in the wire

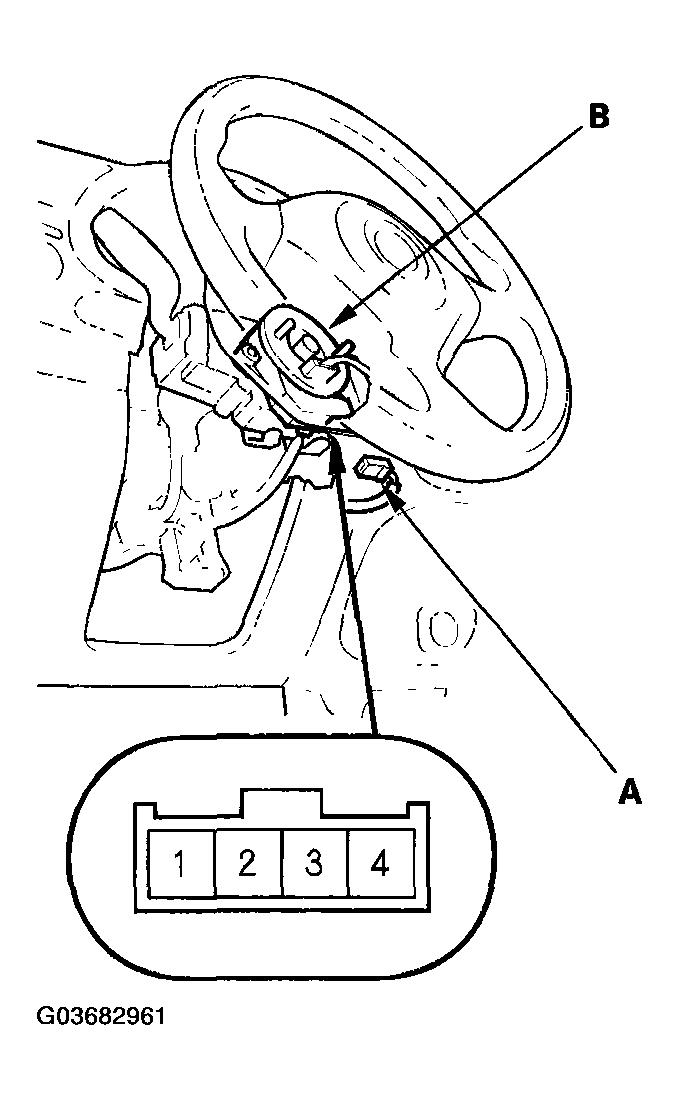

- Reconnect the dashboard wire harness B 4P connector (A), and disconnect the horn switch 1P connector (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Using a jumper wire, connect the horn switch 1P connector to ground.
- If the horn sounds, go to step 6.
- If the horn does not sound, replace the cable reel (see CABLE REEL REPLACEMENT
).
- Reconnect the horn switch 1P connector.
- Using a jumper wire, connect the steering column.
- If the horn sounds, replace the steering column.
- If the horn does not sound, replace the horn and contact plate.
