EVAP Canister Vent Shut Valve Replacement
- Remove the EVAP canister.

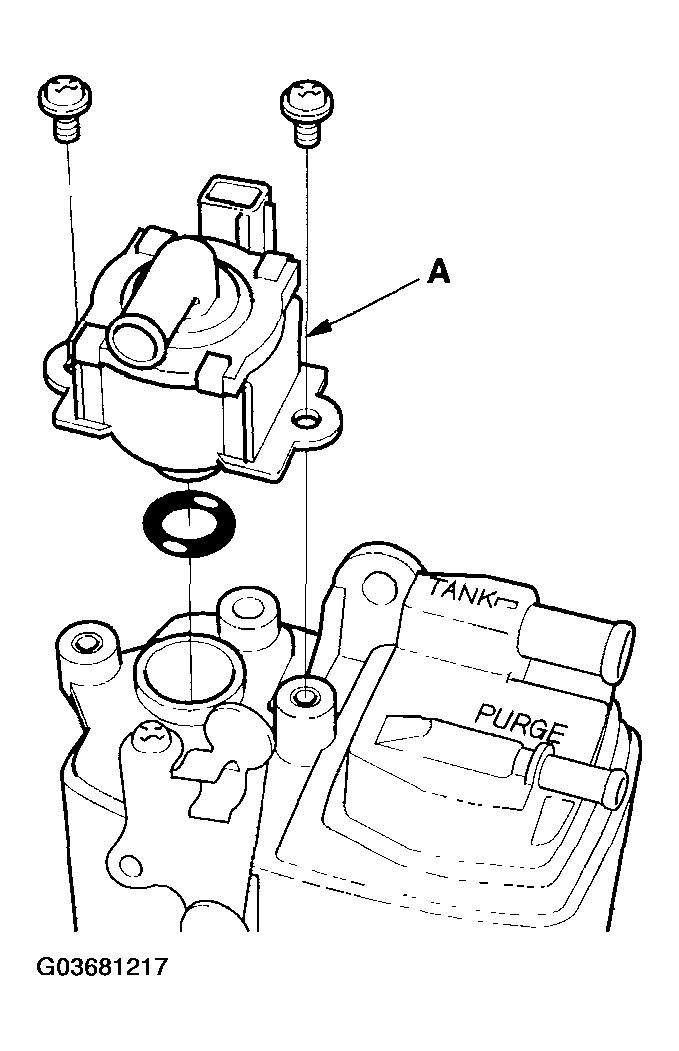

- 2000-2005 models: Remove the EVAP canister vent shut valve (A).
Courtesy of AMERICAN HONDA MOTOR CO., INC.

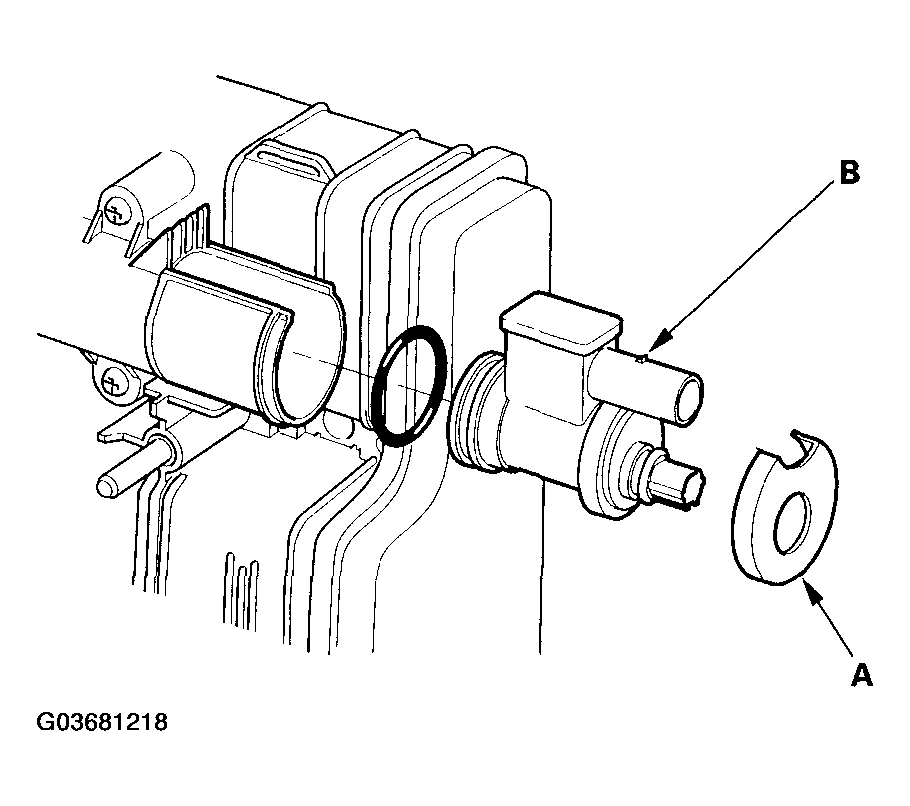

- 2006 model: Remove the cap (A), then remove the EVAP canister vent shut valve (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install the valve in the reverse order of removal with a new O-ring.
NOTE:
Do not coat the O-ring with engine oil, etc.
