Dust and Pollen Filter Replacement

The dust and pollen filter should be replaced every 30,000 miles (48,000 km) or 24 months whichever comes first. Replace the filter more often if the airflow is less than usual, or if the vehicle is driven in areas that have high concentrations of soot from industry or diesel powered vehicles.

1. Remove the glove box (see GLOVE BOX REMOVAL/INSTALLATION ) and the center lower cover (see CENTER LOWER COVER REMOVAL/INSTALLATION ).

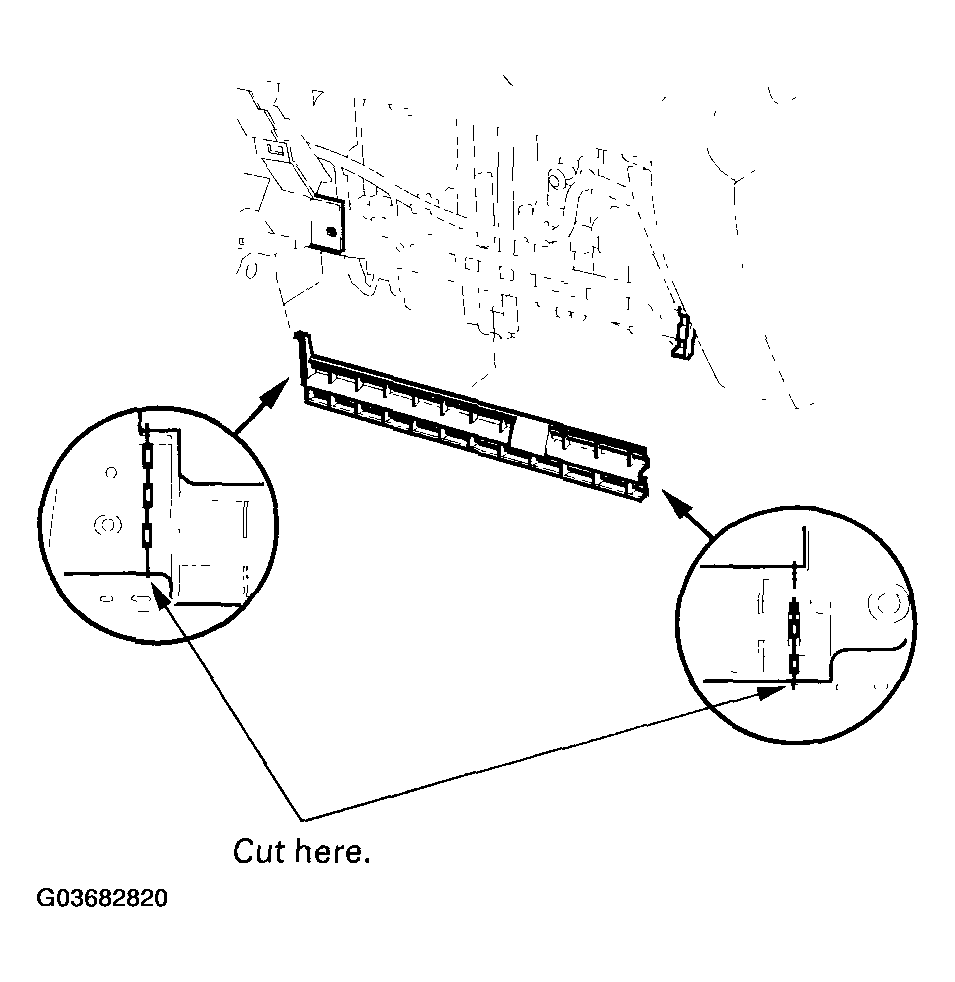

2. Cut the plastic cross brace in the glove box opening with diagonal cutters in the area shown in Fig 1, and discard it.
   Fig 1: Cutting Plastic Cross Brace In Glove Box Opening With Diagonal Cutters

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Remove the bolts and the glove box frame.
   Fig 2: Removing Glove Box Frame

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

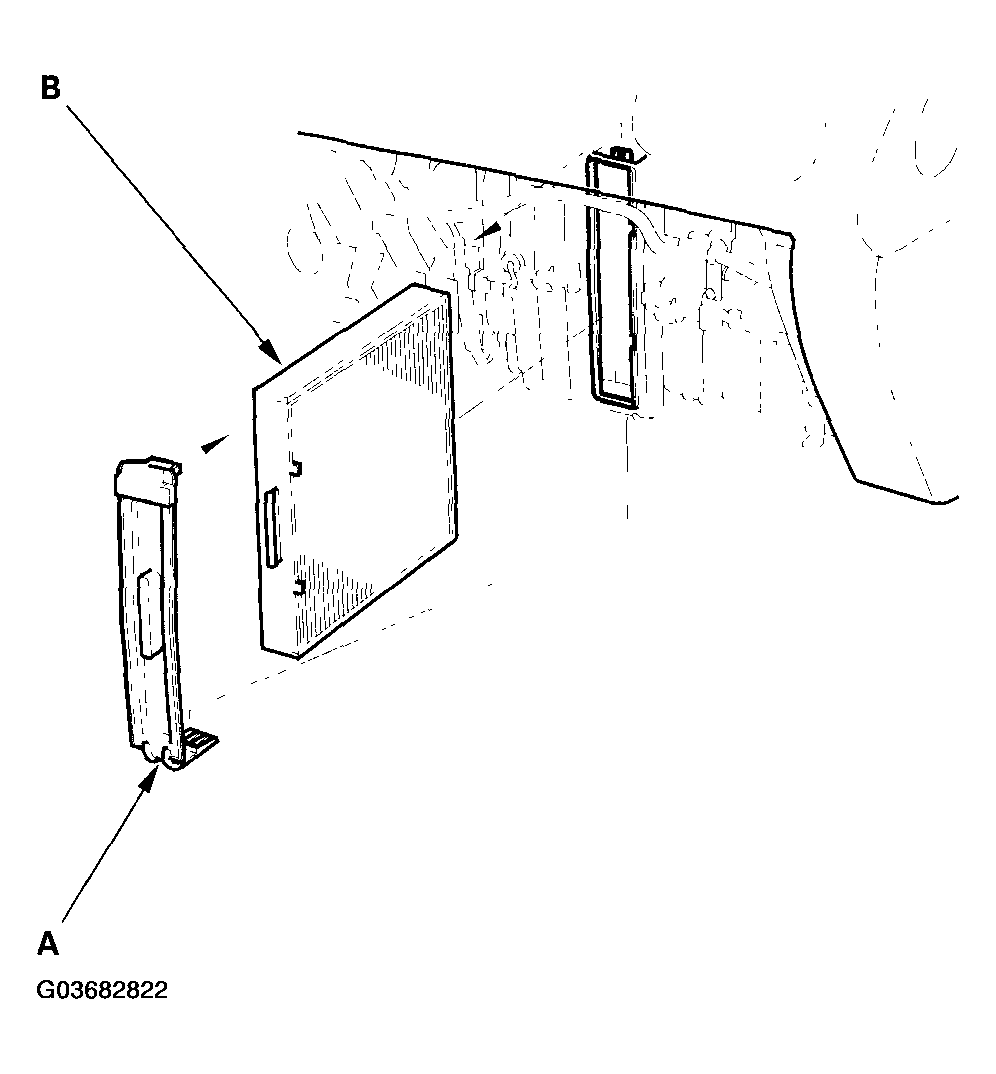

4. Remove the filter lid (A) from the evaporator, then remove the dust and pollen filter (B) by pulling it.
   Fig 3: Removing Filter Lid From Evaporator

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

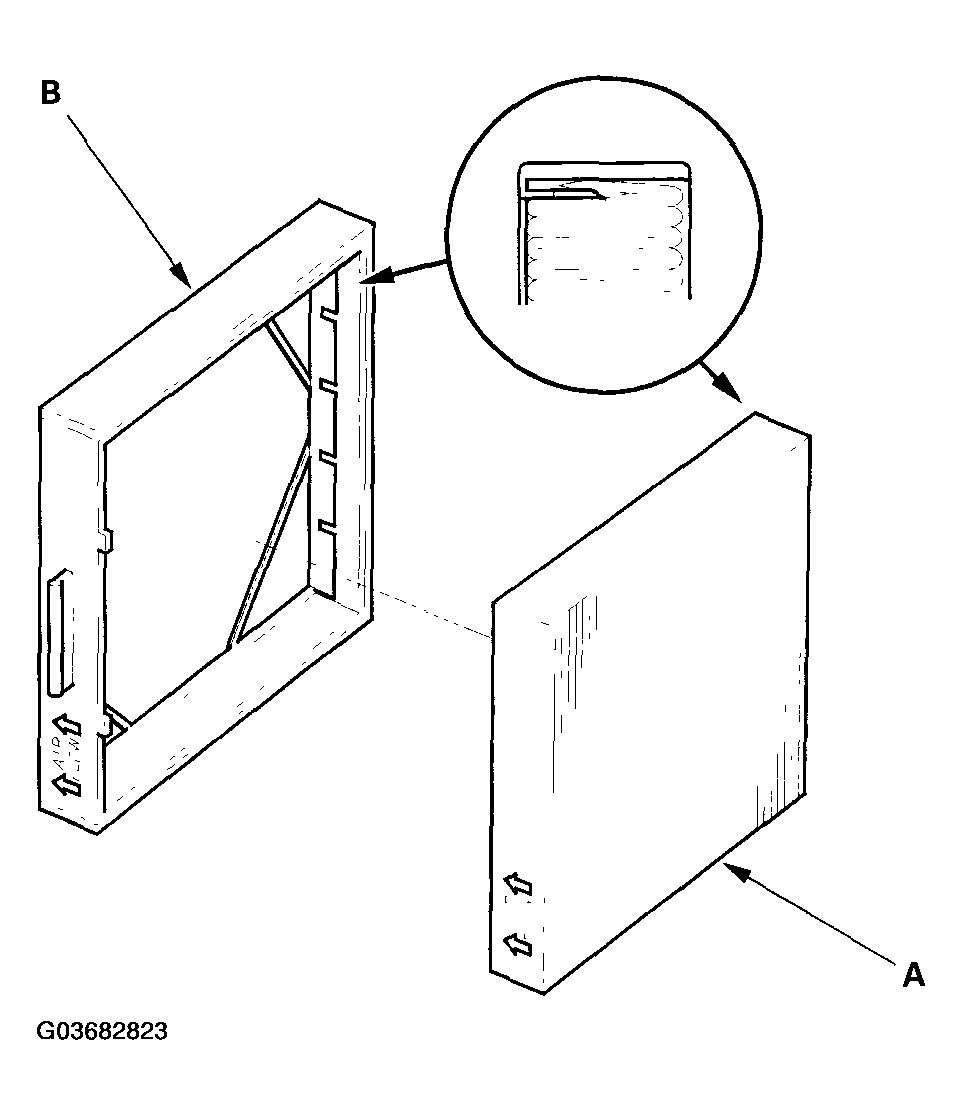

5. Remove the filter (A) from the housing (B), and replace the filter.
   Fig 4: Removing Filter From Housing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. Install the filter in the reverse order of removal.
