IMA Motor Removal/Installation

Special Tools Required

Rotor puller (Available for loan or purchase from AHM Special Tools) 07YAC-PHM010B

The motor rotor contains very strong magnets and should be handled with special care. People with pacemakers or other sensitive medical devices should not handle the motor rotor.

WARNING: If the motor rotor is installed by hand, it may suddenly be pulled toward the motor stator with great force, causing serious hand or finger injury. Always use the special tool to remove or install a motor rotor.

Do not use the rotor motor if the fiberglass band is damaged. If the band breaks during use, magnets may come loose from the motor rotor.
Keep the motor rotor away from magnetically sensitive devices.
Store the rotor in the designated storage box and keep it away from sensitive devices during storage.
Do not blow air near the rotor, as the metal particles may get on the magnet.

M/T model: Remove the transmission (see TRANSMISSION REMOVAL ) and the clutch (see CLUTCH ).
CVT model: Remove the transmission (see TRANSMISSION REMOVAL ).

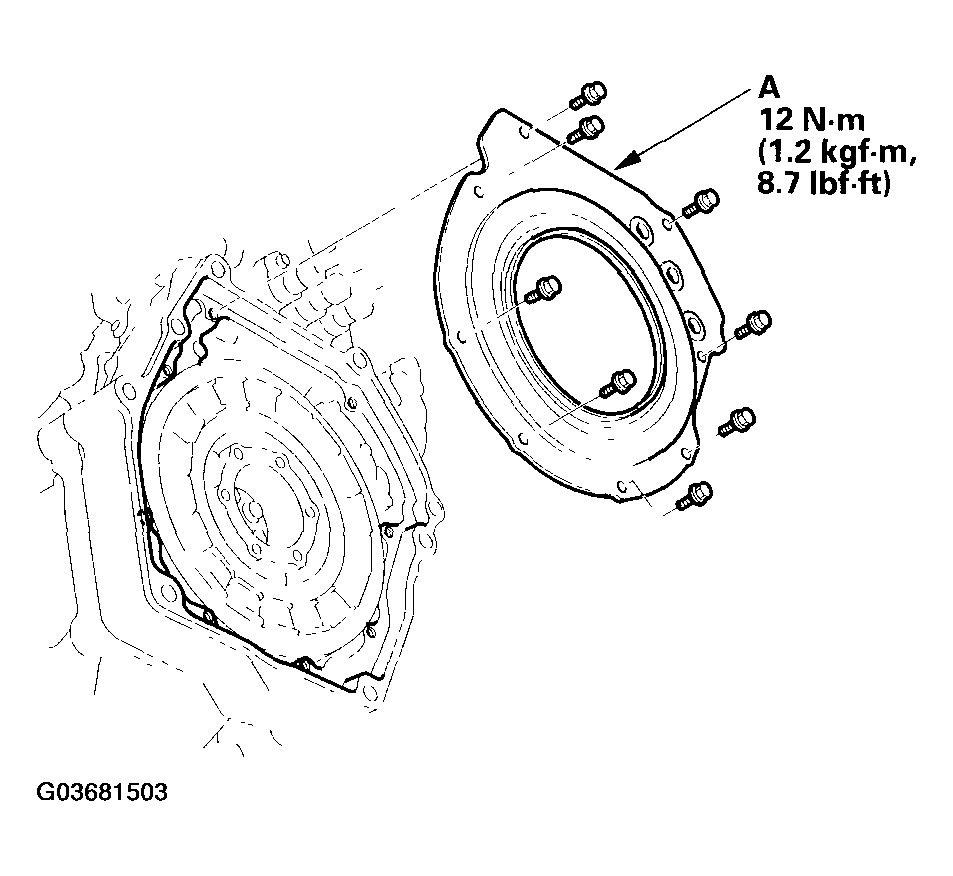

Remove the stator cover (A).

Fig 1: Removing Stator Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.

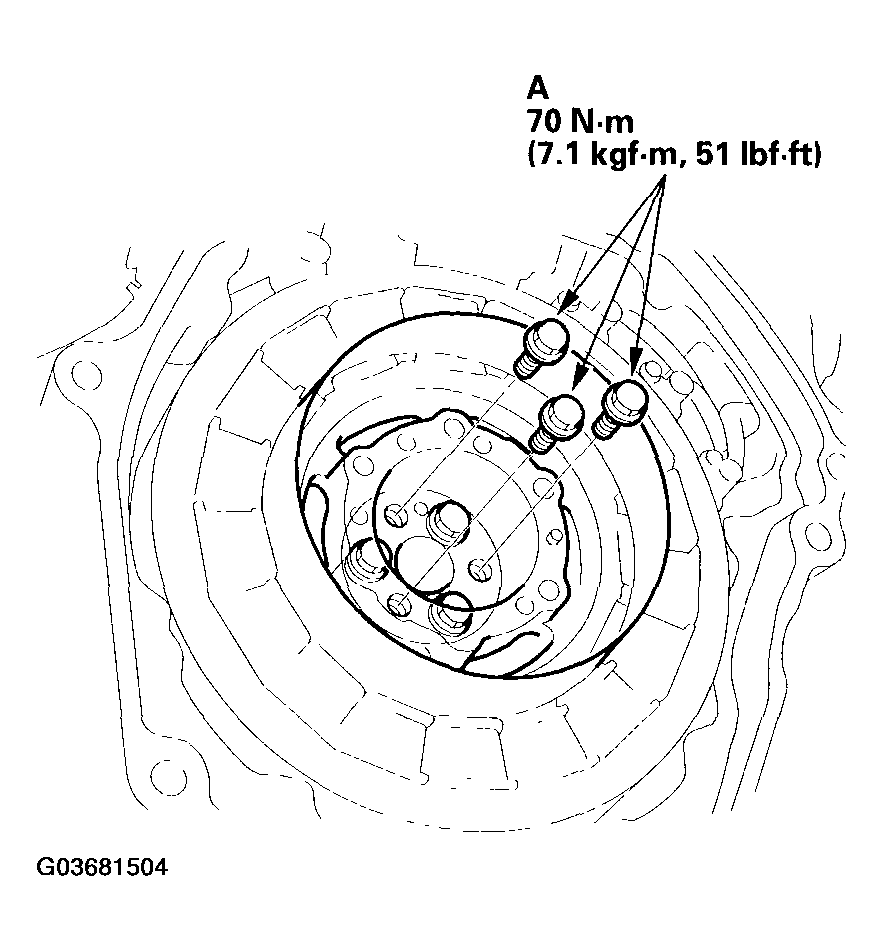

Remove three of the six bolts (A).

Fig 2: Removing Three Of Six Bolts Of Stator
Courtesy of AMERICAN HONDA MOTOR CO., INC.

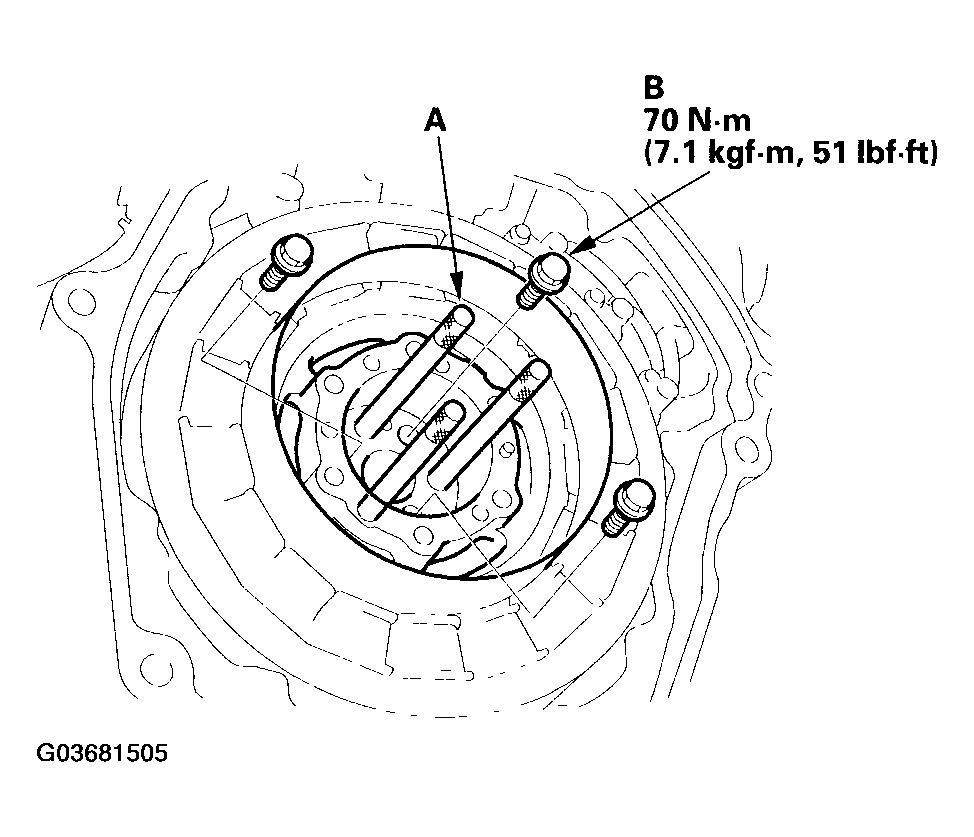

Install the guide pins (A), then remove the remaining three bolts (B).

Fig 3: Installing Guide Pins
Courtesy of AMERICAN HONDA MOTOR CO., INC.

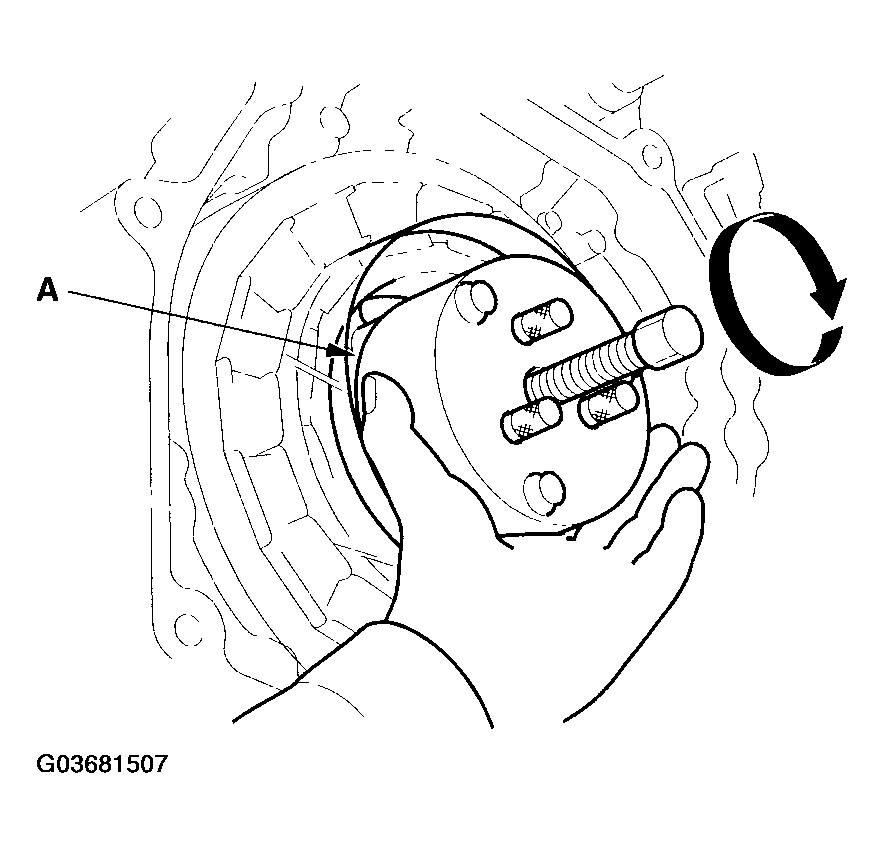

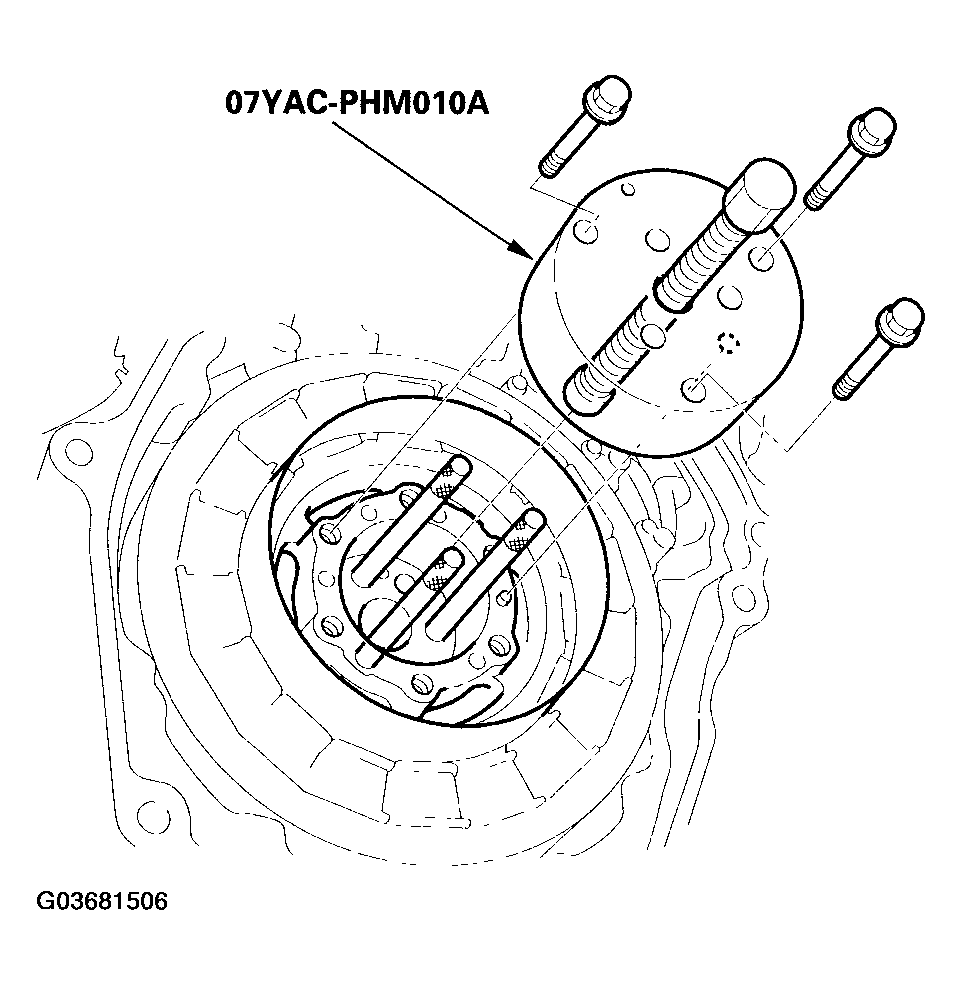

Attach the rotor puller with the bolts supplied.

Fig 4: Attaching Rotor Puller
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the motor rotor (A).

Fig 5: Removing Motor Rotor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolts (A).

Fig 6: Removing Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.

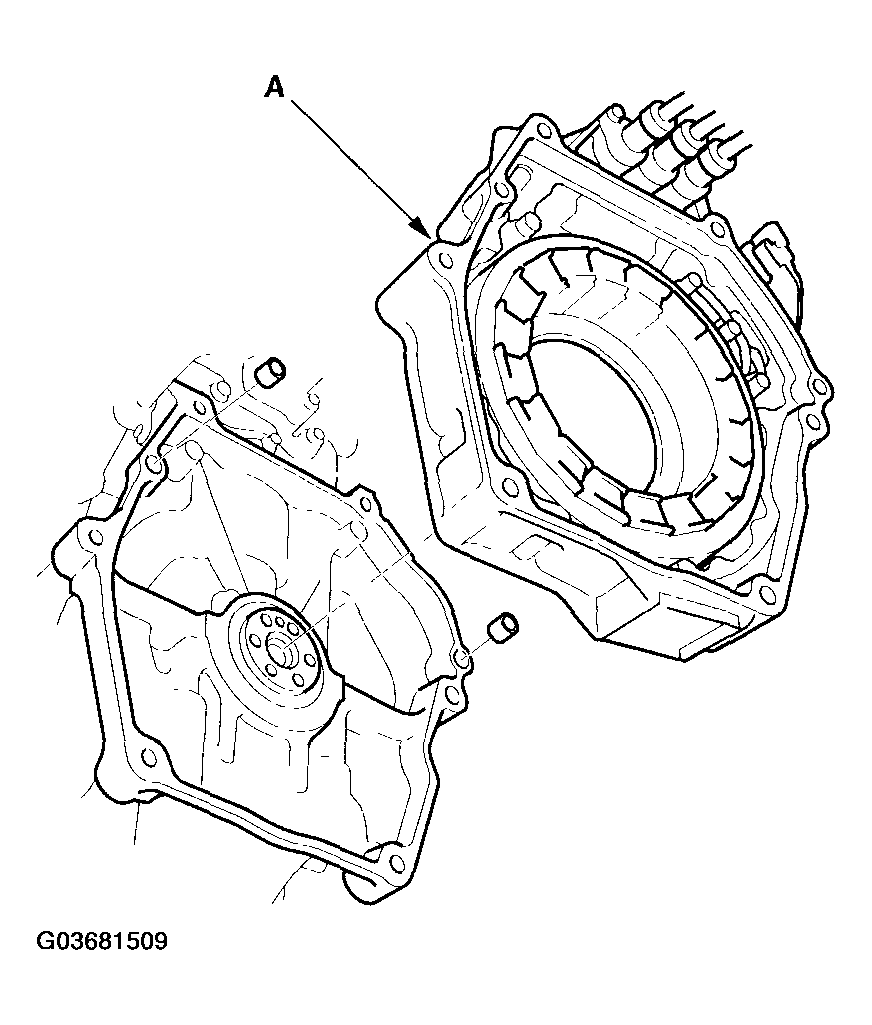

Remove the motor stator (A).
NOTE: Clean the mating surfaces of the housing assembly and engine block, and apply liquid gasket, P/N 08718-0009, to the mating surfaces just before installation.

Fig 7: Removing Motor Stator
Courtesy of AMERICAN HONDA MOTOR CO., INC.

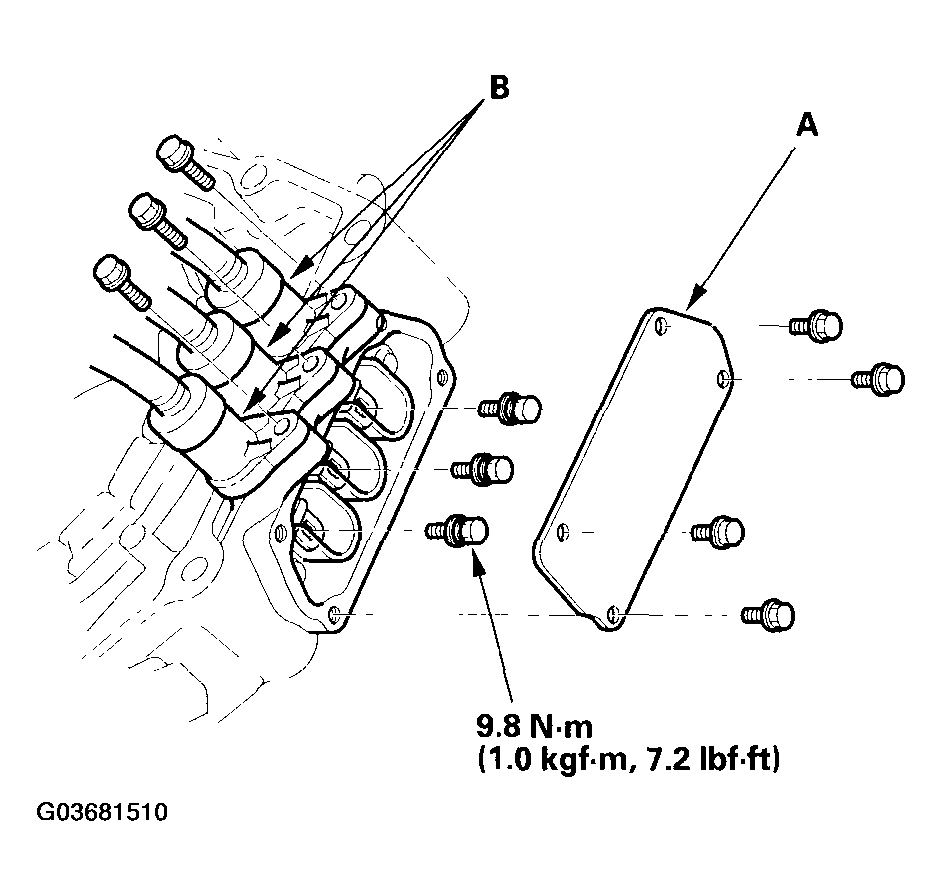

Remove the cover (A) and motor power cables (B).
NOTE:
- Check the position of the U phase, V phase, and W phase before disconnecting the motor power cable.
- Clean the mating surfaces of the housing assembly and cover, and be sure to apply the liquid gasket, P/N 08718-0009, to the mating surfaces just before installation.
Fig 8: Removing Cover And Motor Power Cables
Courtesy of AMERICAN HONDA MOTOR CO., INC.

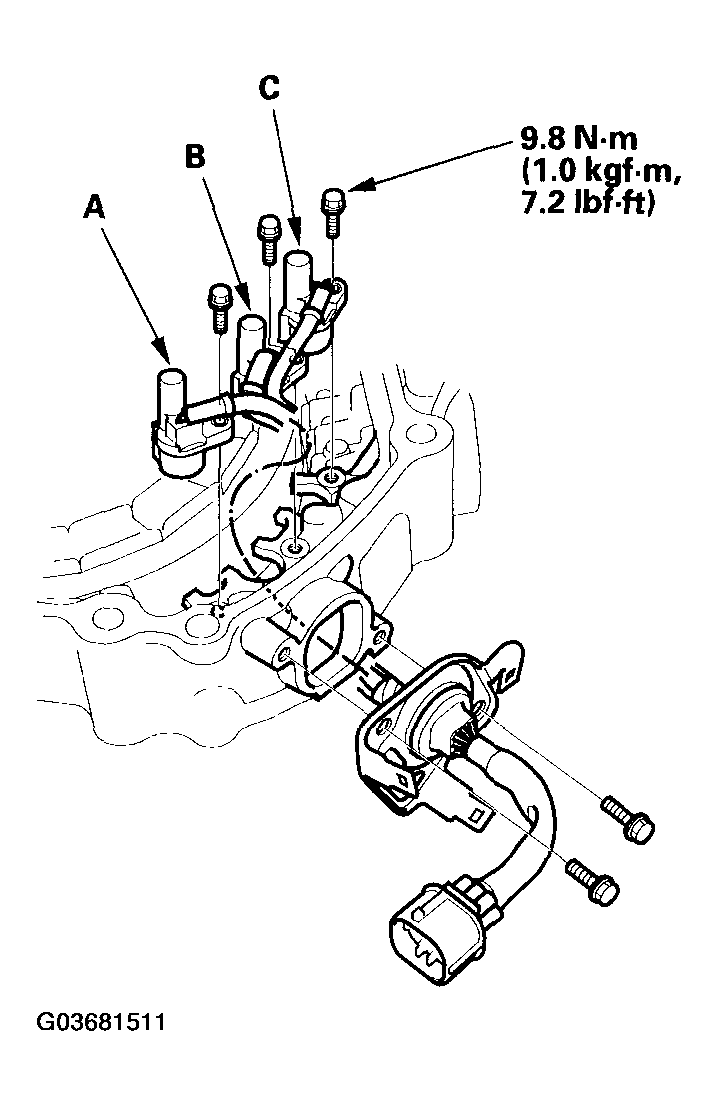

Remove motor commutation sensors A, B, and C.

Fig 9: Removing Motor Commutation Sensors A, B And C
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the IMA motor in the reverse order of removal.
NOTE:
- Install the commutation sensors properly. Do not set sensors A, B, and C in the wrong positions.
- Connect the motor power cable with the U phase, V phase, and W phase set in the correct positions.
- Clean the surfaces before applying liquid gasket, P/N 08718-0009.

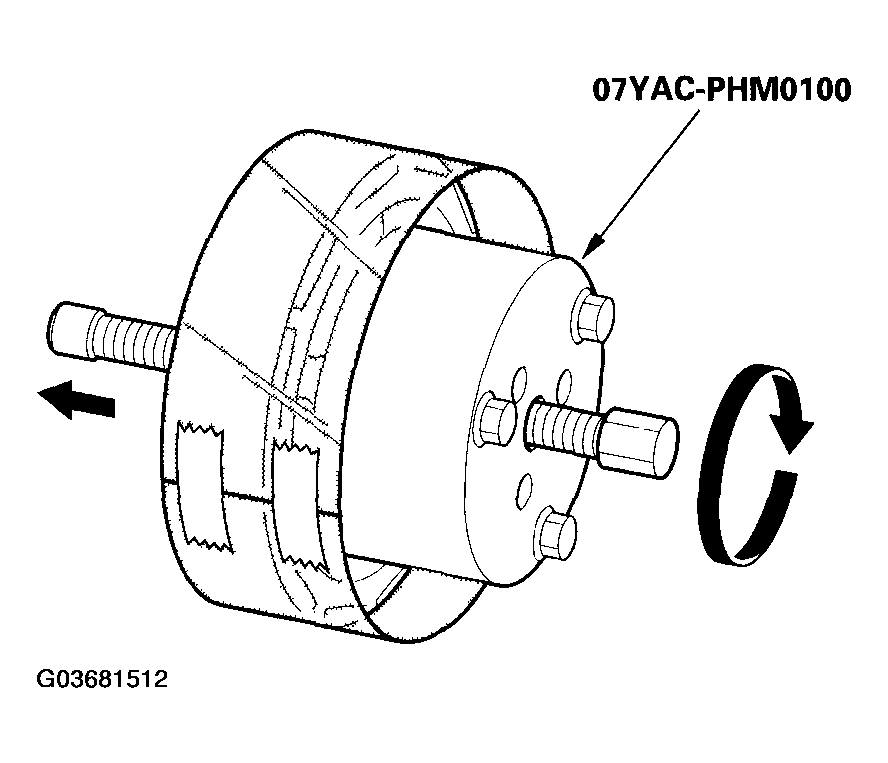

- Set the rotor on the special tool, and install the rotor with the end of the special tool extended.
- Turn the handle of the special tool slowly when inserting the rotor into the stator. The rotor is drawn into the stator by magnetic force.
Fig 10: Installing IMA Motor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
