Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component |
Component Location |

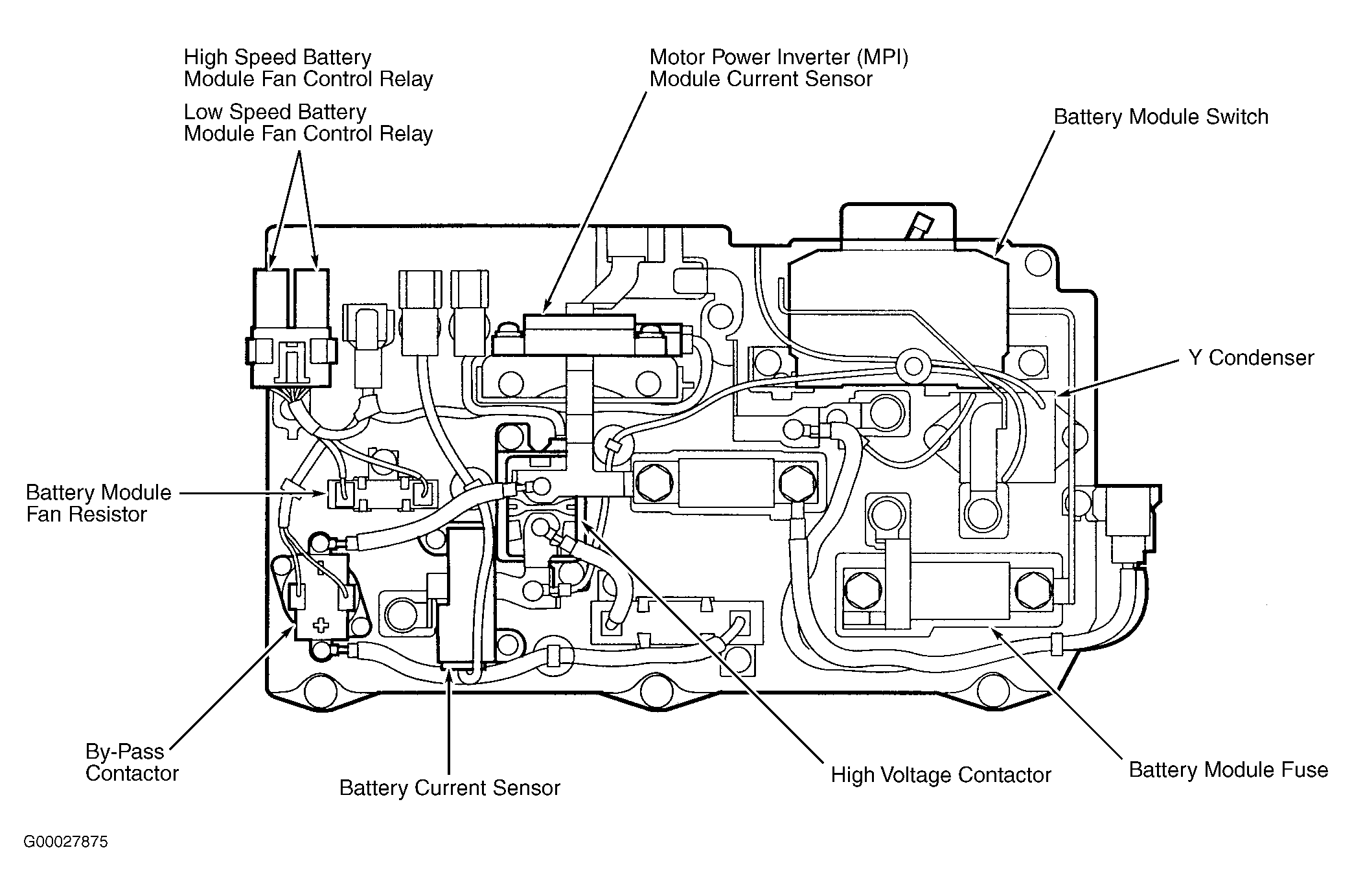

| Battery Module Fuse |
On junction board. See Figure
. |
| Multi-Relay Box |
Left side of engine compartment. |
| Underdash Fuse/Relay Box |
At left end of dash. See Figure
. |
| Underhood Fuse/Relay Box |
Left side of engine compartment. |
