CVT Speed Change Control Valve Assembly Connector End View

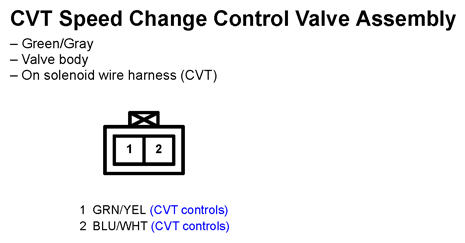

Fig 1: CVT Speed Change Control Valve Assembly Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
