Backlash Inspection

Place the differential assembly on V-blocks (A), and install both axles.

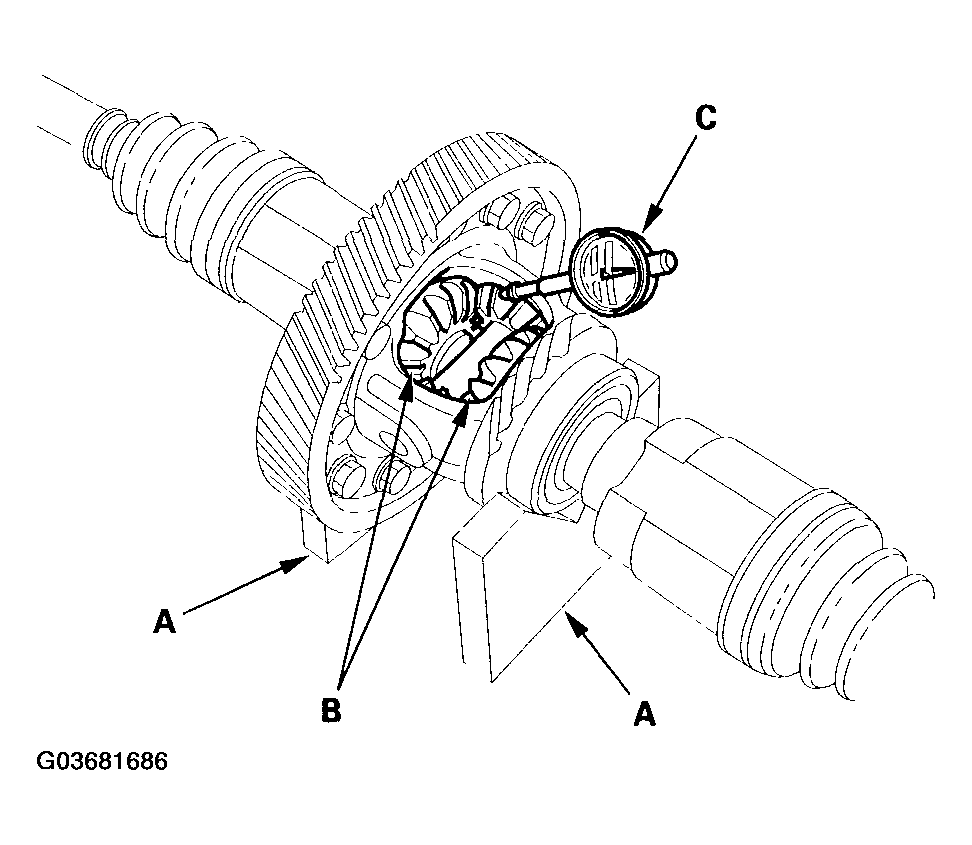

Fig 1: Measuring Backlash Of Pinion Gears
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Measure the backlash of both pinion gears (B) with a dial indicator (C). If the backlash is not within the standard, replace the differential carrier.
Standard (New): 0.05-0.15 mm (0.002-0.006 in.)
